P 4 KE A 440 V

Taiwan Semiconductor transient voltage suppression diode series P4KE A

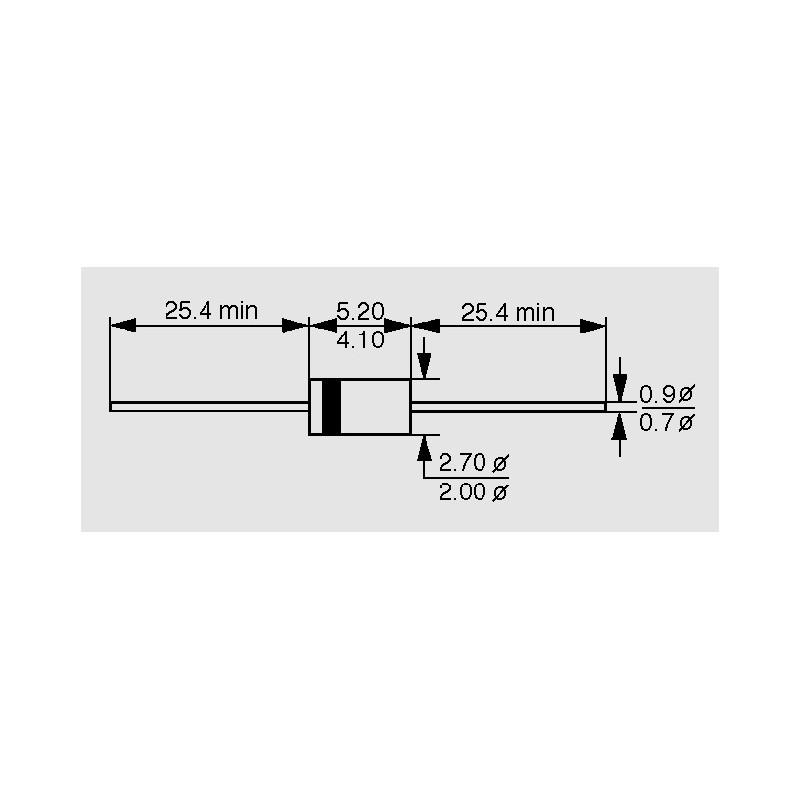

  • TVS diodes in a DO41 housing
  • with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s)
  • comply with UL94V-0
  • peak power dissipation: 400W
  • P 4 KE A_: unipolar
  • P 4 KE CA_: bipolar
  • taped
P 4 KE A

P 4 KE A 440 V

435 P 4 KE A 440 V P4KE440A P4KE440A Taiwan Semiconductor transient voltage suppression diode series P4KE A. TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) comply with UL94V-0 peak power dissipation: 400W P 4 KE A_: unipolar P 4 KE CA_: bipolar taped

Specifications

manufacturer
Manufacturer's name P4KE440A
Case DO41
Reverse current [µA] 5
Stand-off voltage [V] 376
Breakdown voltage [V] 418
Test current [mA] 1
Max. clamping voltage [V] 600
Reverse peak pulse current [A] 0,69
Data Sheet

Unit price

0,094 €

Stock: 5000
Further delivery:
CW 17/2025

Minimum order quantity 50 units or
multiples of 50.
