P 4 KE A 30 V

Taiwan Semiconductor transient voltage suppression diode series P4KE A

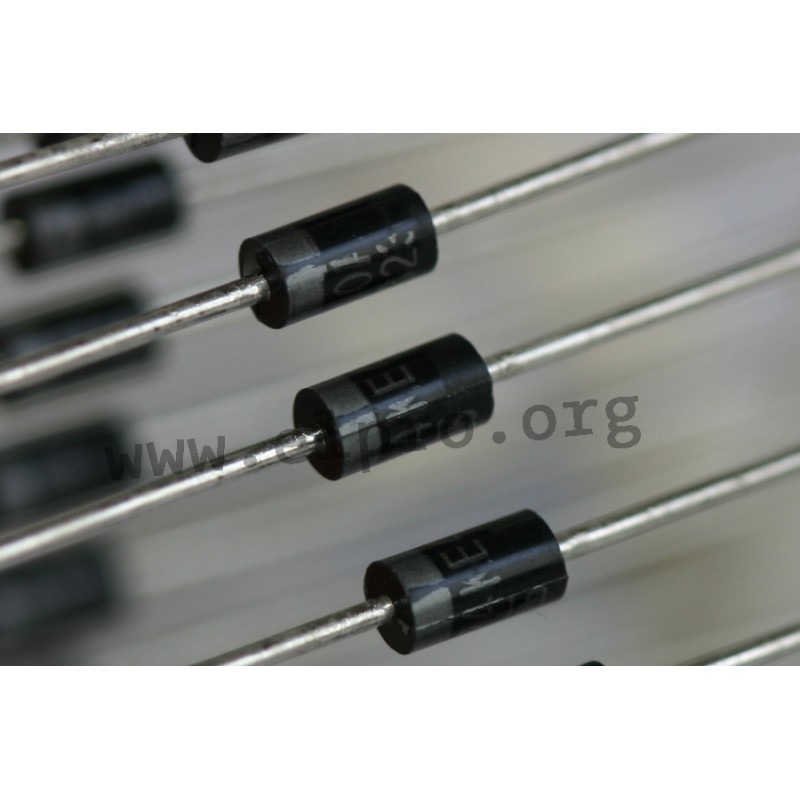

  • TVS diodes in a DO41 housing
  • with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s)
  • comply with UL94V-0
  • peak power dissipation: 400W
  • P 4 KE A_: unipolar
  • P 4 KE CA_: bipolar
  • taped
P4KE30A R0G, Taiwan Semiconductor transient voltage suppression diodes, 400W, P4KE A series

P 4 KE A 30 V

235826 P 4 KE A 30 V P4KE30A P4KE30A Taiwan Semiconductor transient voltage suppression diode series P4KE A. TVS diodes in a DO41 housing with solderable connections according to MIL-STD-202, Meth. 208 (max. 250°C/10s) comply with UL94V-0 peak power dissipation: 400W P 4 KE A_: unipolar P 4 KE CA_: bipolar taped

Specifications

manufacturer
Manufacturer's name P4KE30A
Reverse current [µA] 1
Stand-off voltage [V] 25,6
Breakdown voltage [V] 28,5
Max. clamping voltage [V] 41,4
Reverse peak pulse current [A] 10
Data Sheet

Unit price

0,076 €

Stock: 3000
Further delivery:
CW 13/2025

Minimum order quantity 50 units or
multiples of 50.
