> Semiconductors>Rectifiers>SMD housing>Taiwan Semiconductor SMD rectifiers, 0,5A, MBS and RMB series>RMB 4 S

Manufacturers

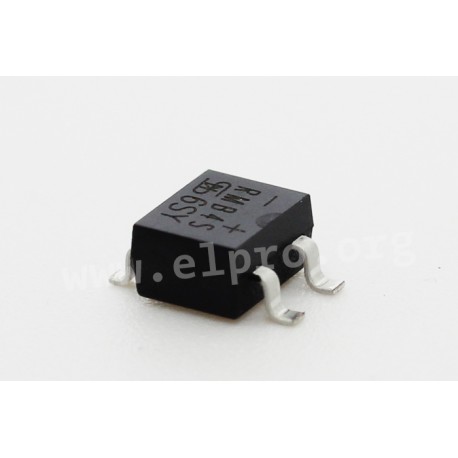

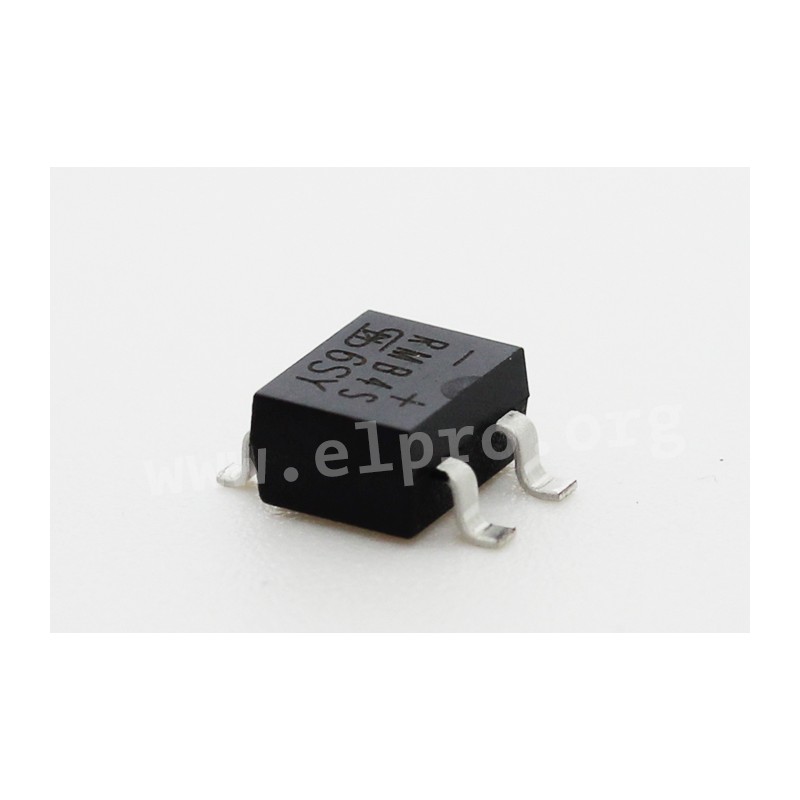

RMB 4 S

SMD bridge rectifiers 0.5A

• glass passivated
• SMD housing
• fast recovery
• by Taiwan Semiconductor
• leads solderable per MIL-STD-202, meth. 208
• solderability, max.: 260°C/10s
• operating temperature range: up -55 to +150°C

RMB 4 S

RMB 4 S

45944 RMB 4 S RMB4S RMB4S SMD bridge rectifiers 0.5A. • glass passivated• SMD housing• fast recovery• by Taiwan Semiconductor• leads solderable per MIL-STD-202, meth. 208• solderability, max.: 260°C/10s• operating temperature range: up -55 to +150°C

Specifications

manufacturer
Manufacturer's name RMB4S
Case SMD
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 0,5
(Max.) RMS voltage [V] 280
Data Sheet

Unit price

0,219 €

Stock: 590
Next incoming goods:
CW 49/2024
3000 units

Further delivery:
CW 09/2025

Minimum order quantity 1 to 90 units or multiples of 100 plus 0 to 90 .
