> Semiconductors>Diodes>Schottky diodes>Taiwan Semiconductor Schottky diodes, D²Pak housing, MBRS and SRAS series>MBRS 30 H 45 CT

Manufacturers

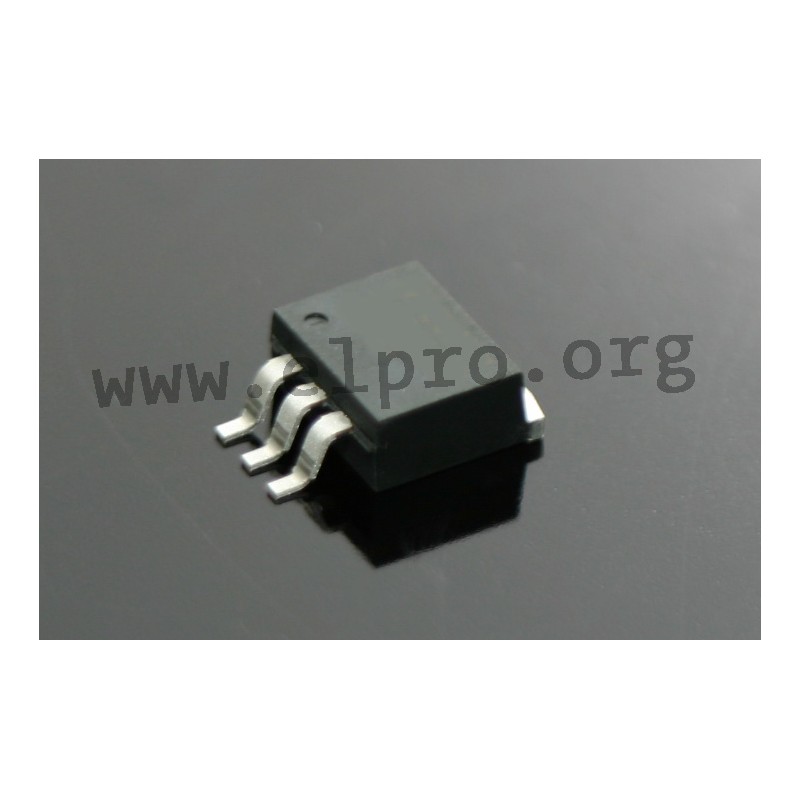

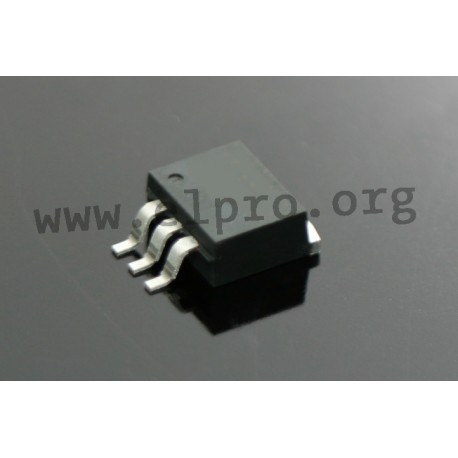

MBRS 30 H 45 CT

Taiwan Semiconductor Schottky diode series MBRS and SRAS

  • TSC SMD Schottky diodes
  • in a D²Pak housing
  • comply with UL94V-0
  • solderability: max. 260°C/10s

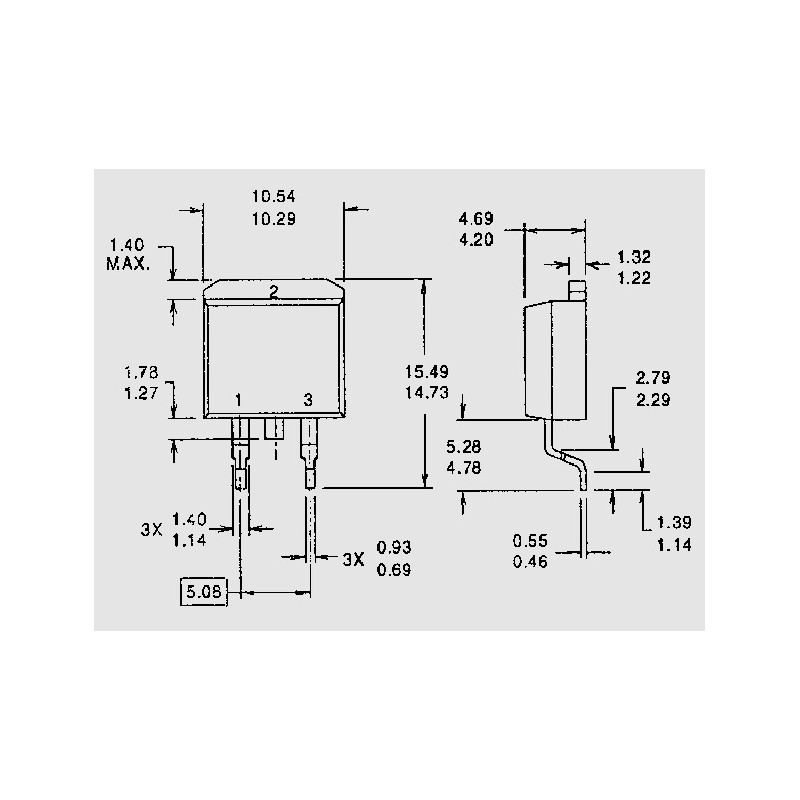

D²Pak

MBRS 30 H 45 CT

38789 MBRS 30 H 45 CT MBRS30H45CT MBRS30H45CT Taiwan Semiconductor Schottky diode series MBRS and SRAS. TSC SMD Schottky diodes in a D²Pak housing comply with UL94V-0 solderability: max. 260°C/10s

Specifications

manufacturer
Manufacturer's name MBRS30H45CT
Case D²Pak
Ripple Current (105°C, 100kHz) [mA] 0,2
(Max.) peak recurrent reverse voltage [V] 45
Forward voltage [V] 0,9
(Max.) average forward (rectified) current [A] 2x15
Data Sheet

Unit price

0,715 €

Stock: 4170
Further delivery:
CW 27/2025

Minimum order quantity 25 units or
multiples of 25.
