KBU 1004 G

Taiwan Semiconductor bridge rectifier series KBU10 and TS10KL

  • 10A with heatsink
  • glass passivated
  • housing KBU10_: KBU
  • housing TS10KL_: KBJL
  • leads solderable per JESD22-B102
  • plastic conforms UL94V-0
  • maximal solderability: 260°C/10s
  • operating temperature range: -55 to +150°C

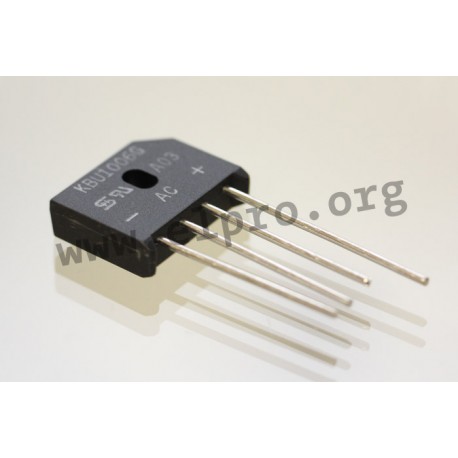

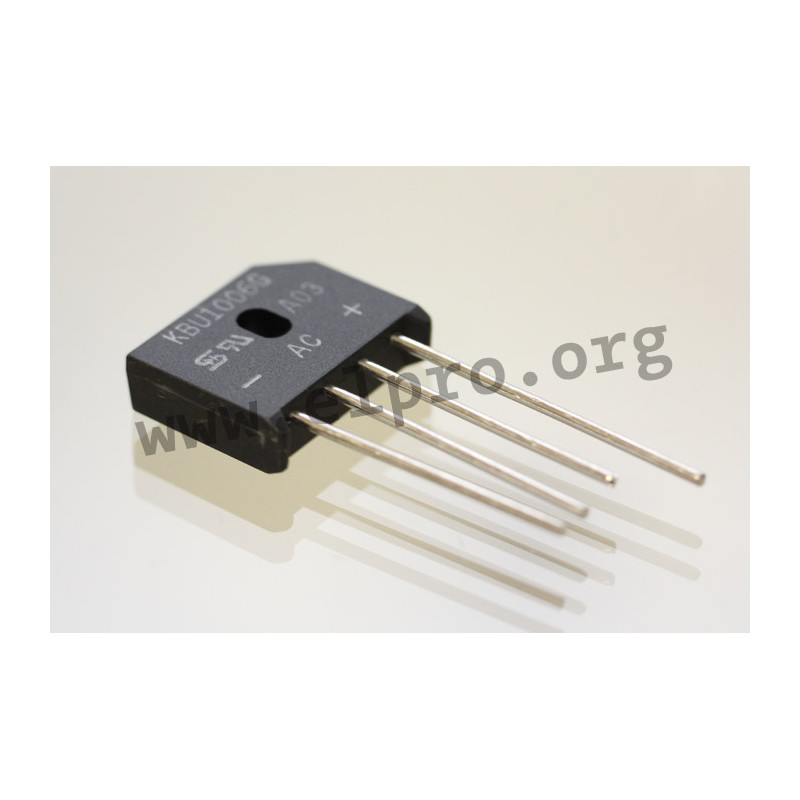

KBU1004G T0, Taiwan Semiconductor, flat rectifiers 10A

KBU 1004 G

25802 KBU 1004 G KBU1004G KBU1004G Taiwan Semiconductor bridge rectifier series KBU10 and TS10KL. 10A with heatsink glass passivated housing KBU10_: KBU housing TS10KL_: KBJL leads solderable per JESD22-B102 plastic conforms UL94V-0 maximal solderability: 260°C/10s operating temperature range: -55 to +150°C

Specifications

manufacturer
Manufacturer's name KBU1004G
Case flat rectifiers
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 10
(Max.) RMS voltage [V] 280
Data Sheet

Unit price

1,05 €

Stock: 7
Next incoming goods:
CW 09/2025
1750 units

Further delivery:
CW 18/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
