TS 6P06 G

Taiwan Semiconductor flat rectifier series KBU/GBU/TS6P

  • bridge rectifiers

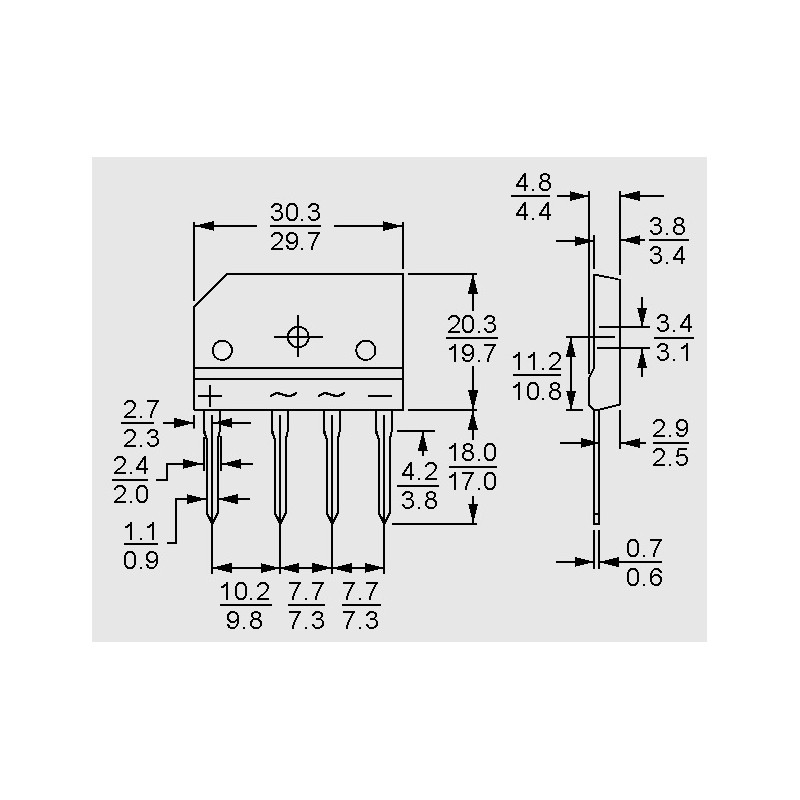

  • in an In-Line housing with an elongated hole
  • pin spacing 5/5mm resp. 7,5/10mm (TS 6P_)
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • operating temperature: -55 to +150°C
  • solderability: max. 260°C/10s
  • forward current: 6A

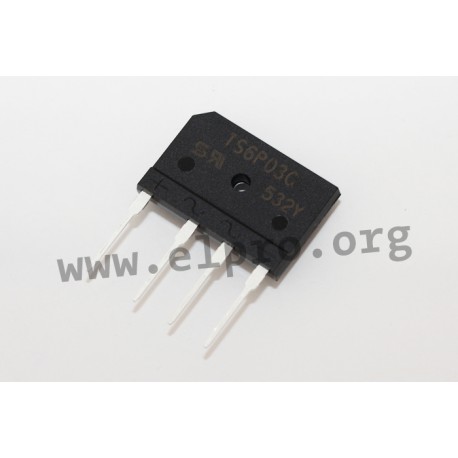

TS 6P0_ G

TS 6P06 G

45931 TS 6P06 G TS6P06G TS6P06G Taiwan Semiconductor flat rectifier series KBU/GBU/TS6P. bridge rectifiers  in an In-Line housing with an elongated hole pin spacing 5/5mm resp. 7,5/10mm (TS 6P_) comply with UL94V-0 as well as MIL-STD-202, Meth. 208 operating temperature: -55 to +150°C solderability: max. 260°C/10s forward current: 6A

Specifications

manufacturer
Manufacturer's name TS6P06G
Case In-Line
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 1,1
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 6
(Max.) RMS voltage [V] 560
Data Sheet

Unit price

0,758 €

Stock: 1009
Further delivery:
CW 21/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
