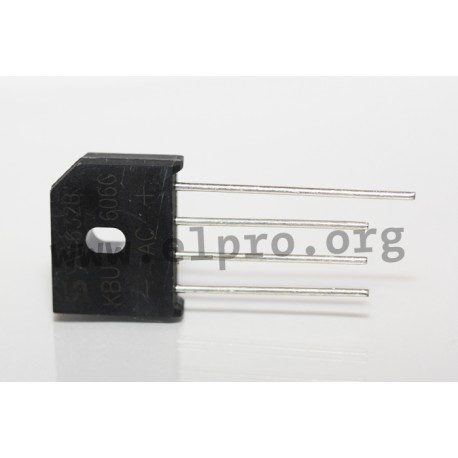

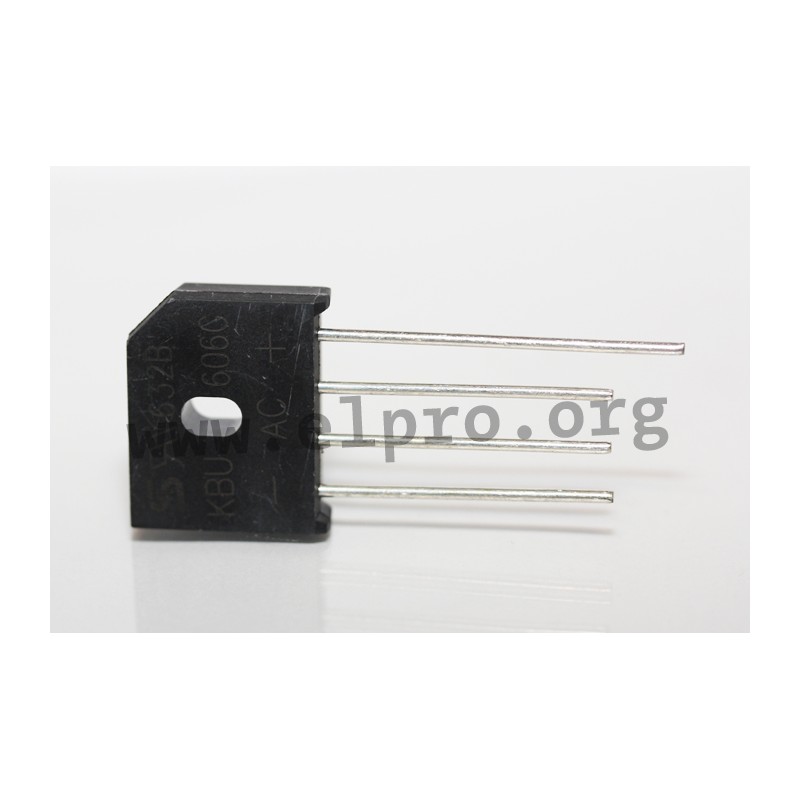

Taiwan Semiconductor flat rectifier series KBU/GBU/TS6P
bridge rectifiers
in an In-Line housing with an elongated hole
pin spacing 5/5mm resp. 7,5/10mm (TS 6P_)
comply with UL94V-0 as well as MIL-STD-202, Meth. 208
operating temperature: -55 to +150°C
solderability: max. 260°C/10s
forward current: 6A
KBU 604 G
113154KBU 604 G KBU604GKBU604GTaiwan Semiconductor flat rectifier series KBU/GBU/TS6P.
bridge rectifiers
in an In-Line housing with an elongated hole
pin spacing 5/5mm resp. 7,5/10mm (TS 6P_)
comply with UL94V-0 as well as MIL-STD-202, Meth. 208
operating temperature: -55 to +150°C
solderability: max. 260°C/10s
forward current: 6A
