> Semiconductors>Rectifiers>In-Line housing>Taiwan Semiconductor flat rectifiers, 4A, KBU/GBU/KBL series>KBL 406 G

Manufacturers

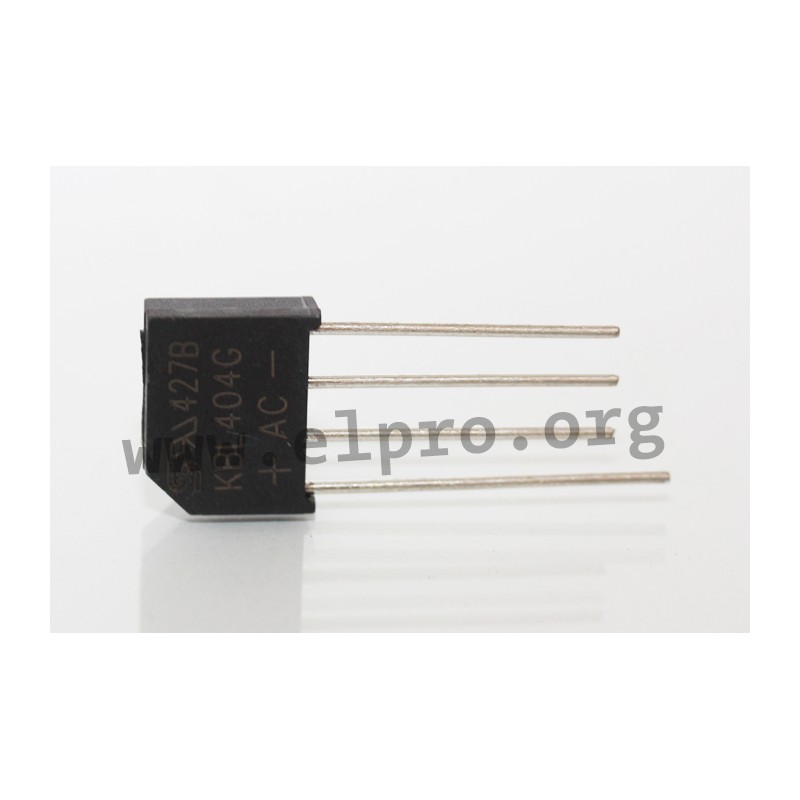

KBL 406 G

Taiwan Semiconductor flat rectifier series KBU/GBU/KBL

  • bridge rectifiers
  • in an In-Line housing
  • with an elongated hole (FB_/KBU_/GBU_)
  • pin spacing 5/5mm
  • forward current: 4A

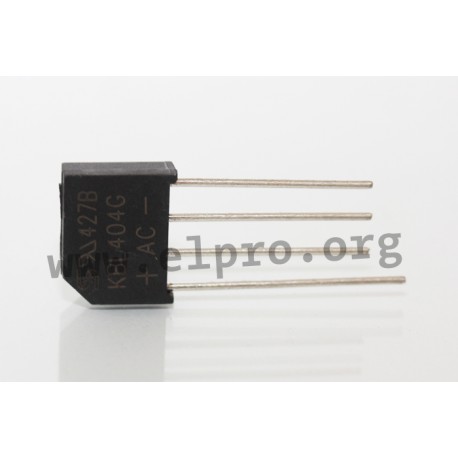

KBL

KBL 406 G

35616 KBL 406 G KBL406G KBL406G Taiwan Semiconductor flat rectifier series KBU/GBU/KBL. bridge rectifiers  in an In-Line housing  with an elongated hole (FB_/KBU_/GBU_) pin spacing 5/5mm forward current: 4A

Specifications

manufacturer
Manufacturer's name KBL406G
Case In-Line
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 4
Reverse current [µA] 10
(Max.) RMS voltage [V] 560
Data Sheet

Unit price

0,656 €

Stock: 1196
Further delivery:
CW 26/2025

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
