GBU 802 C2G

Taiwan Semiconductor flat rectifier series KBU and GBU

  • bridge rectifiers
  • glass passivated

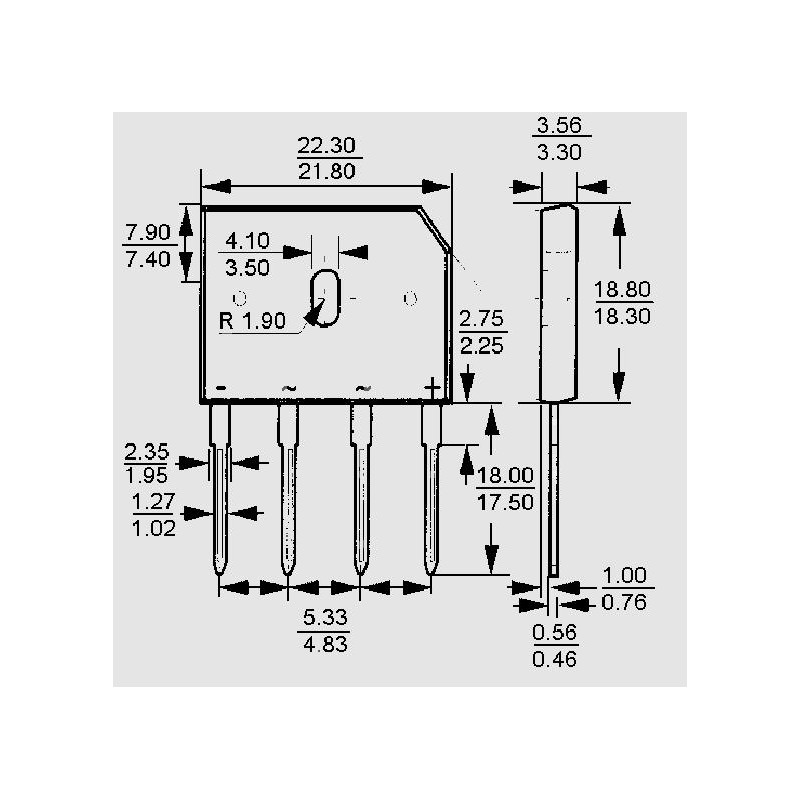

  • in an In-Line housing with an elongated hole
  • pin spacing 5/5mm
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • operating temperature: -55 to +150°C
  • solderability: max. 260°C/10s
  • forward current: 8A
GBU802 C2G, flat rectifiers 8A

GBU 802 C2G

45932 GBU 802 C2G GBU802 GBU802 Taiwan Semiconductor flat rectifier series KBU and GBU. bridge rectifiers  glass passivated in an In-Line housing with an elongated hole pin spacing 5/5mm comply with UL94V-0 as well as MIL-STD-202, Meth. 208 operating temperature: -55 to +150°C solderability: max. 260°C/10s forward current: 8A

Specifications

manufacturer
Manufacturer's name GBU802
Case In-Line
(Max.) peak recurrent reverse voltage [V] 100
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 8
(Max.) RMS voltage [V] 70
Data Sheet

Unit price

0,442 €

Stock: 1680
Further delivery:
CW 15/2025

Minimum order quantity 10 units or
multiples of 10.
