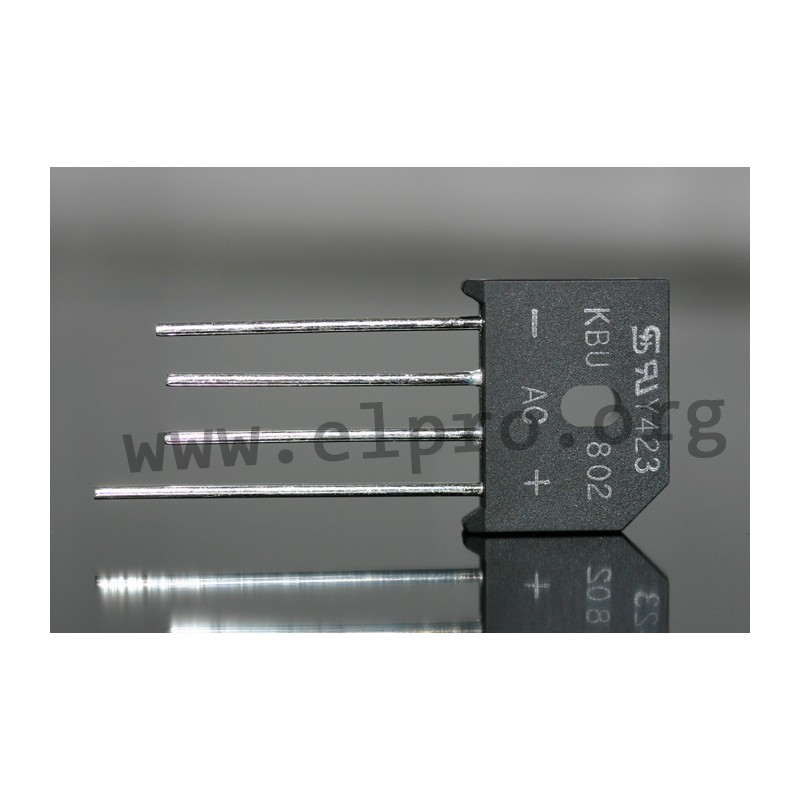

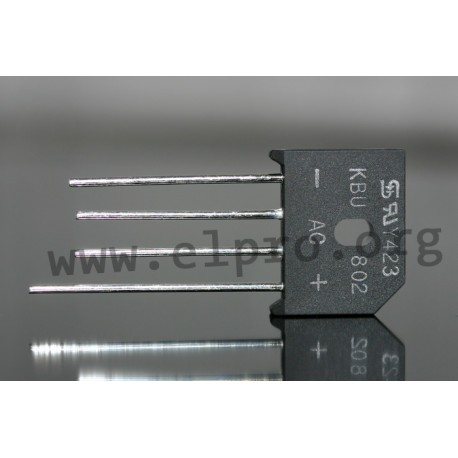

KBU 8 K

Taiwan Semiconductor flat rectifier series KBU and GBU

  • bridge rectifiers
  • glass passivated
  • in an In-Line housing with an elongated hole
  • pin spacing 5/5mm
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • operating temperature: -55 to +150°C
  • solderability: max. 260°C/10s
  • forward current: 8A
KBU 8

KBU 8 K

1922 KBU 8 K KBU806G KBU806G Taiwan Semiconductor flat rectifier series KBU and GBU. bridge rectifiers  glass passivated in an In-Line housing with an elongated hole pin spacing 5/5mm comply with UL94V-0 as well as MIL-STD-202, Meth. 208 operating temperature: -55 to +150°C solderability: max. 260°C/10s forward current: 8A

Specifications

manufacturer
Manufacturer's name KBU806G
Case In-Line
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 1
(Max.) average forward (rectified) current [A] 8
Reverse current [µA] 5
(Max.) RMS voltage [V] 560
Data Sheet

Unit price

1,02 €

Stock: 730
Next incoming goods:
CW 07/2025
2000 units

Further delivery:
CW 15/2025

Minimum order quantity 10 units or
multiples of 10.
