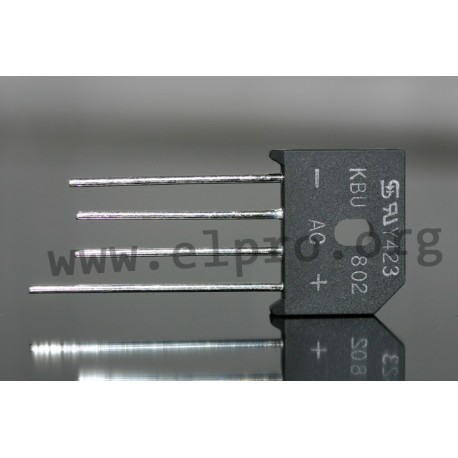

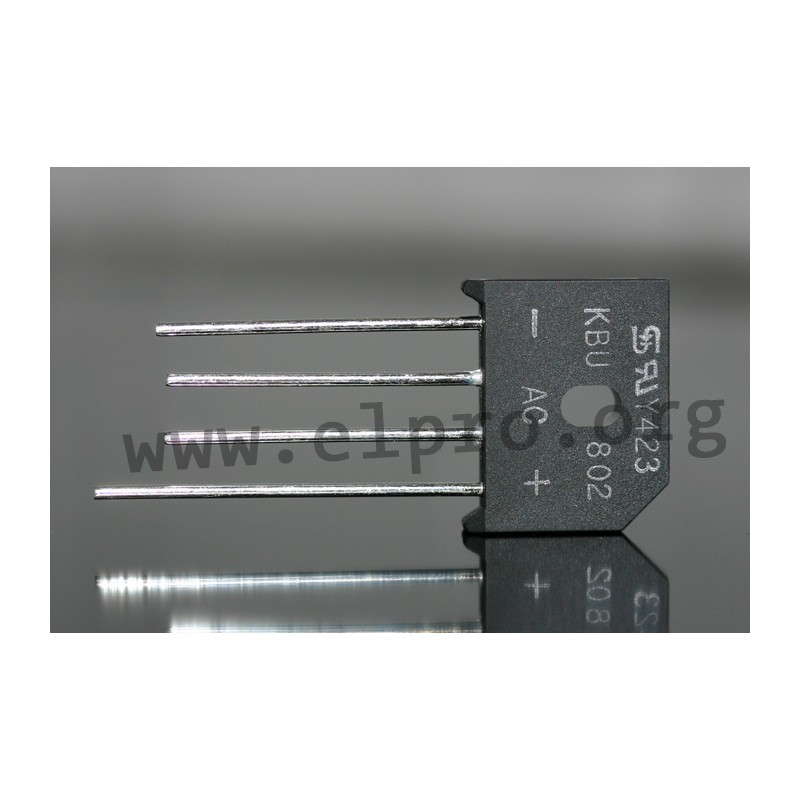

KBU 8 G

Taiwan Semiconductor flat rectifier series KBU and GBU

  • bridge rectifiers
  • glass passivated
  • in an In-Line housing with an elongated hole
  • pin spacing 5/5mm
  • comply with UL94V-0 as well as MIL-STD-202, Meth. 208
  • operating temperature: -55 to +150°C
  • solderability: max. 260°C/10s
  • forward current: 8A
dimensions

KBU 8 G

1920 KBU 8 G KBU 8 G Taiwan Semiconductor flat rectifier series KBU and GBU. bridge rectifiers  glass passivated in an In-Line housing with an elongated hole pin spacing 5/5mm comply with UL94V-0 as well as MIL-STD-202, Meth. 208 operating temperature: -55 to +150°C solderability: max. 260°C/10s forward current: 8A

Discontinued items. Only remainder of stock available.

Specifications

Case In-Line
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,1
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 8
(Max.) RMS voltage [V] 140
Data Sheet

Unit price

0,63 €

Stock: 9
