D2 SB 80

Taiwan Semiconductor flat rectifier series KBP and D2SB

  • bridge rectifiers
  • glass passivated
  • in an In-Line housing

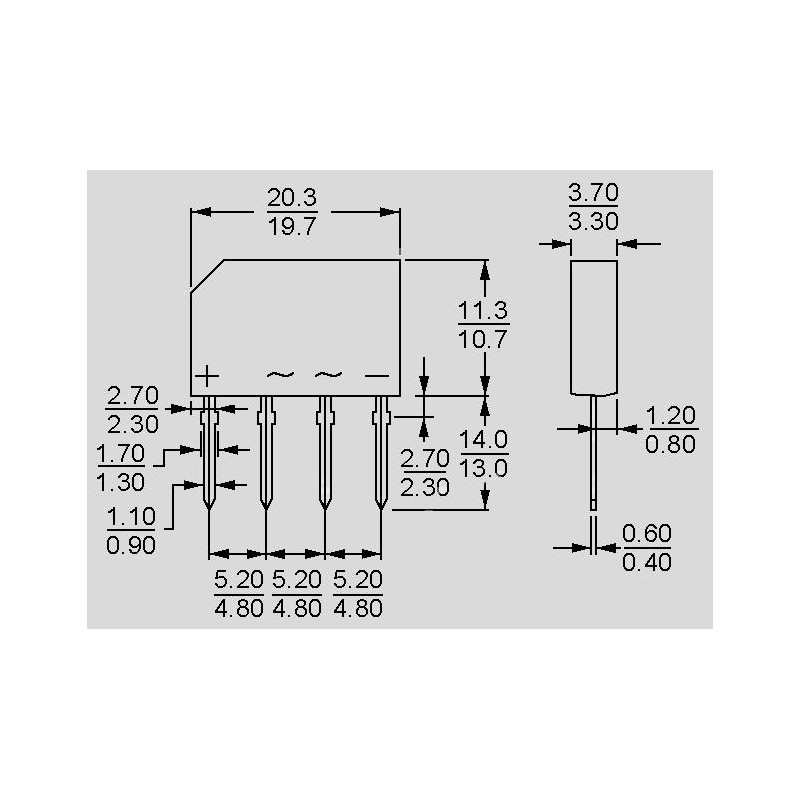

  • pin spacing 5/5/5mm (D2 SB_) resp. 3,8/3,8mm (KBP_)
  • comply with UL94V-0
  • solderability: max. 260°C/10s
  • forward current: 1,5A

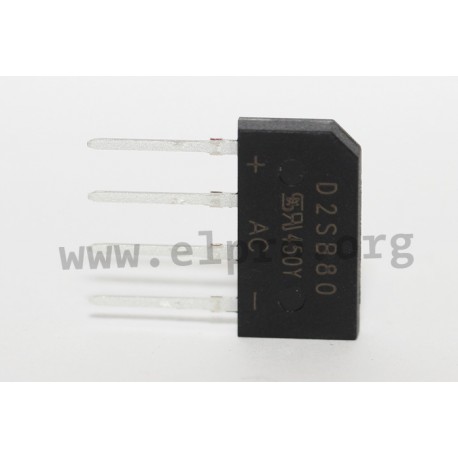

D2 SB 80

D2 SB 80

25788 D2 SB 80 D2SB80 D2SB80 Taiwan Semiconductor flat rectifier series KBP and D2SB. bridge rectifiers glass passivated in an In-Line housing   pin spacing 5/5/5mm (D2 SB_) resp. 3,8/3,8mm (KBP_) comply with UL94V-0 solderability: max. 260°C/10s forward current: 1,5A

Specifications

manufacturer
Manufacturer's name D2SB80
Case flat rectifiers
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 1,05
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 1,5
(Max.) RMS voltage [V] 560
Data Sheet

Unit price

0,313 €

Stock: 1549
Further delivery:
CW 12/2025

Minimum order quantity 1 to 24 units or multiples of 25 plus 0 to 24 .
