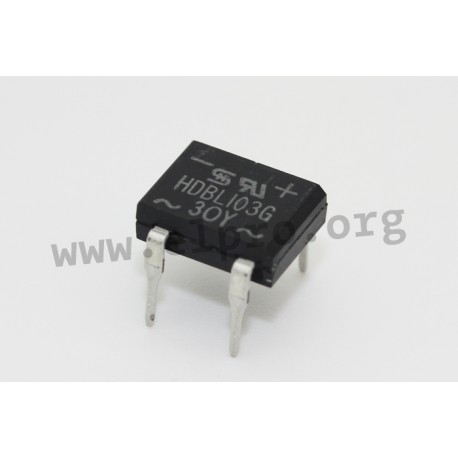

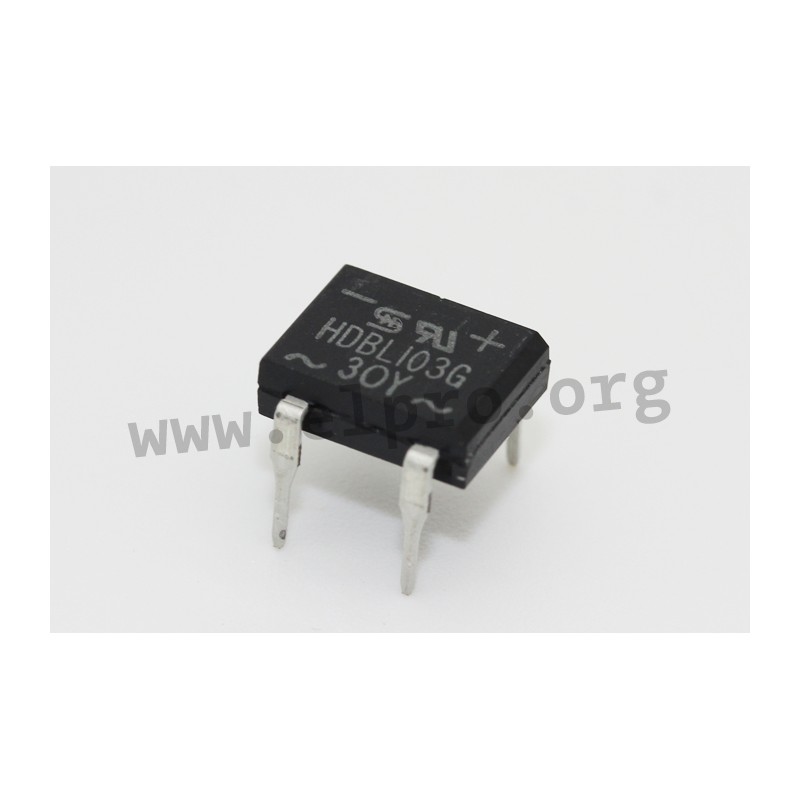

HDBL 107 G

Taiwan Semiconductor rectifier series HDBL and DBL

  • glass passivated recitfiers
  • in a DIL housing
  • suitable for PCB mounting
  • comply with MIL-STD-202, Meth. 208
  • solderability: 260°C (10s)
  • operating temperature: -55 to +150°C
  • forward current: 1A

HDBL 107 G

45878 HDBL 107 G HDBL107G HDBL107G Taiwan Semiconductor rectifier series HDBL and DBL. glass passivated recitfiers in a DIL housing suitable for PCB mounting comply with MIL-STD-202, Meth. 208 solderability: 260°C (10s) operating temperature: -55 to +150°C forward current: 1A

Specifications

manufacturer
Manufacturer's name HDBL107G

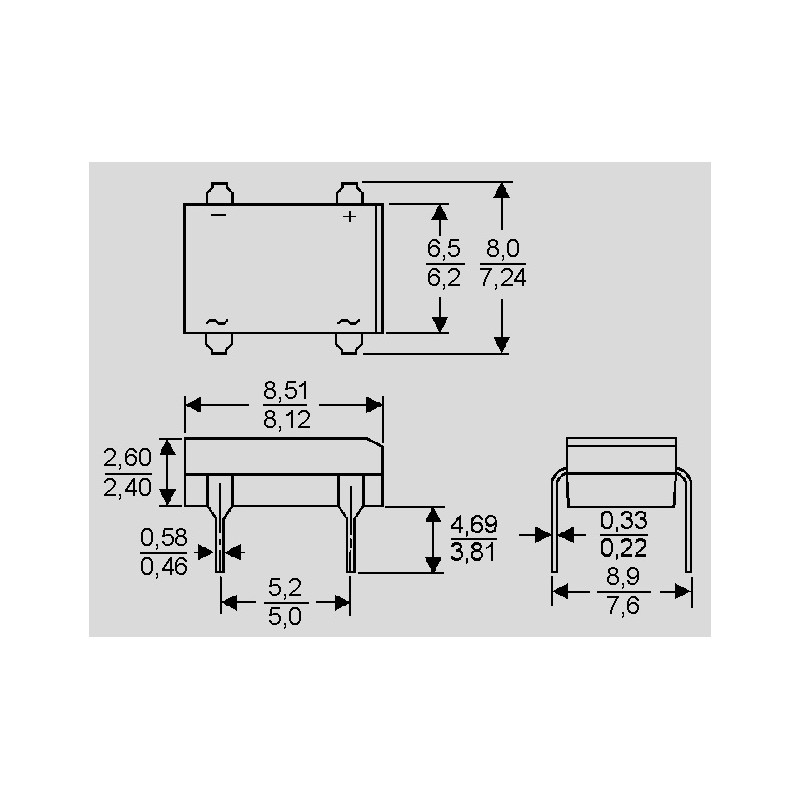

Case DIL
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,7
(Max.) average forward (rectified) current [A] 1
Reverse current [µA] 5
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

0,372 €

Stock: 675
Further delivery:
CW 17/2025

Minimum order quantity 25 units or
multiples of 25.
