B 250 C 50000 FS

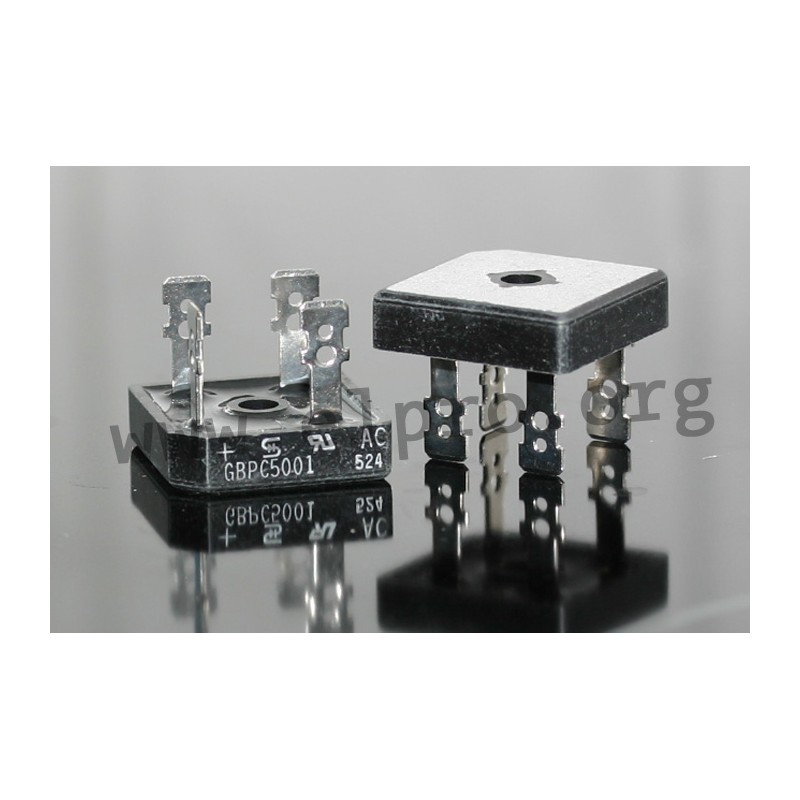

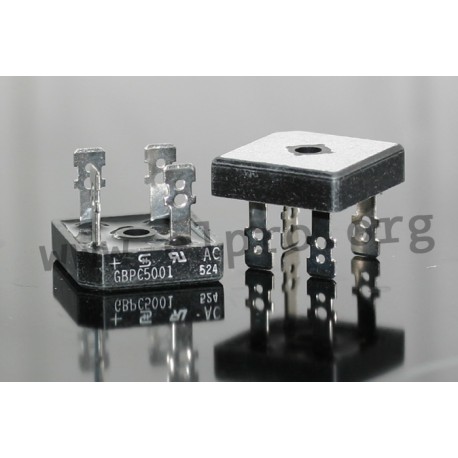

Taiwan Semiconductor bridge rectifier series GBPC 50

  • power bridge rectifiers
  • glass passivated
  • comply with UL94V-0
  • with a tab terminal
  • maximal solderability: 260°C (10s)
  • operating temperature: -50 to +150°C
  • forward current: 50A
B _ C 50000 FS

B 250 C 50000 FS

1976 B 250 C 50000 FS GBPC5006 GBPC5006 Taiwan Semiconductor bridge rectifier series GBPC 50. power bridge rectifiers glass passivated comply with UL94V-0 with a tab terminal maximal solderability: 260°C (10s) operating temperature: -50 to +150°C forward current: 50A

Specifications

manufacturer
Manufacturer's name GBPC5006
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 50
Reverse current [µA] 10
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

3,09 €

Stock: 184
Next incoming goods:
CW 48/2024
500 units

Further delivery:
CW 15/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
