B 80 C 35000 FS

Taiwan Semiconductor bridge rectifier series GBPC35

  • power bridge rectifiers
  • glass passivated
  • comply with UL94V-0
  • with a tab terminal (B_ FS) or a wire bonding (B_ DR)
  • maximal solderability: 260°C (10s)
  • operating temperature: -50 to +150°C
  • forward current: 35A

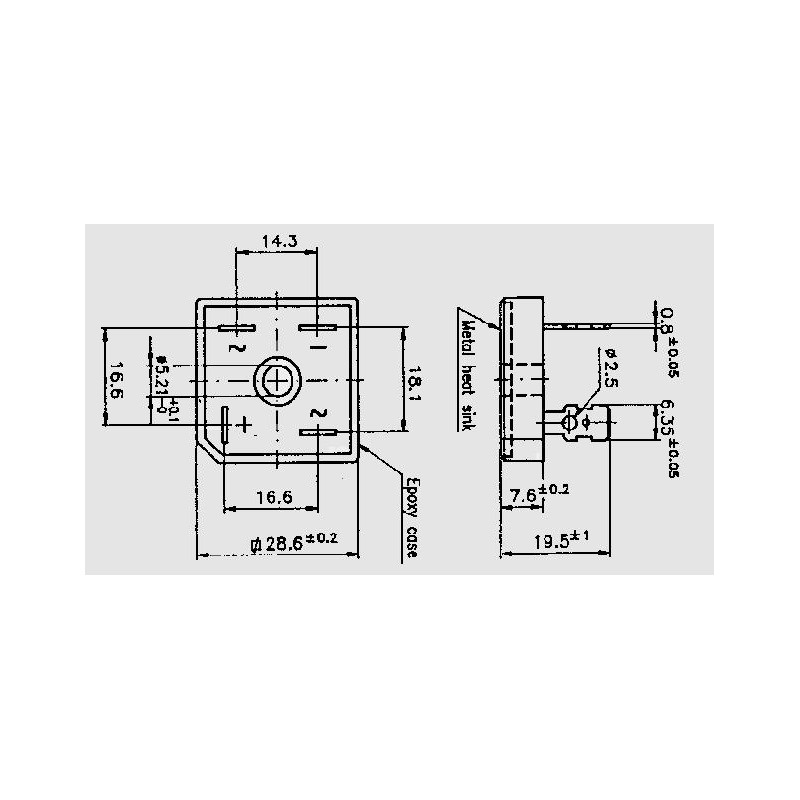

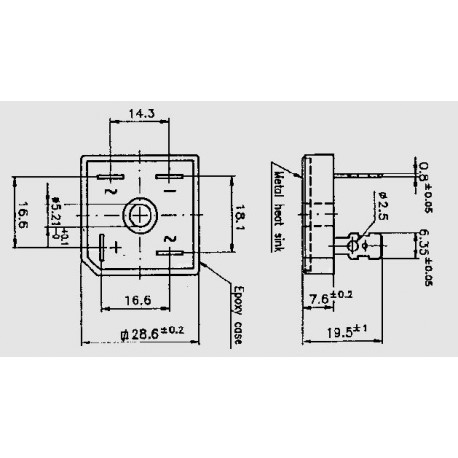

dimensions B _ C 35000 FS

B 80 C 35000 FS

1995 B 80 C 35000 FS GBPC3502 GBPC3502 Taiwan Semiconductor bridge rectifier series GBPC35. power bridge rectifiers glass passivated comply with UL94V-0 with a tab terminal (B_ FS) or a wire bonding (B_ DR) maximal solderability: 260°C (10s) operating temperature: -50 to +150°C forward current: 35A

Specifications

manufacturer
Manufacturer's name GBPC3502
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 35
Reverse current [µA] 5
(Max.) RMS voltage [V] 140
Data Sheet

Unit price

2,49 €

Stock: 326
Further delivery:
CW 03/2027

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
