> Semiconductors>Rectifiers>Power rectifiers>Taiwan Semiconductor power bridge rectifiers, 25A, GBPC 25 series>B 500 C 25000 DR

Manufacturers

B 500 C 25000 DR

power bridge rectifiers 25A

• glass passivated
• operating temperature range: -55...+150°C
• wire

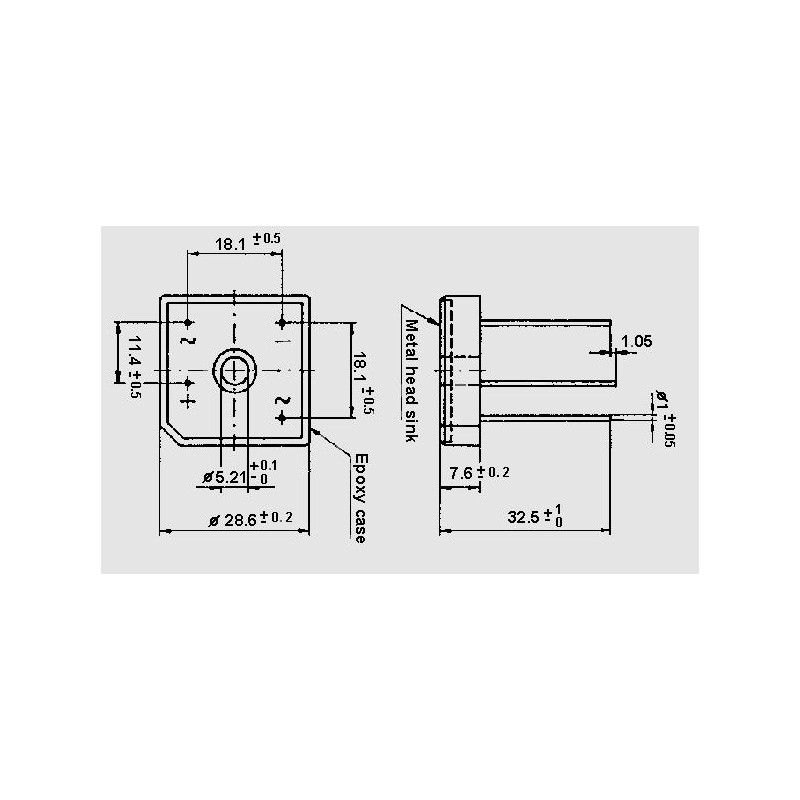

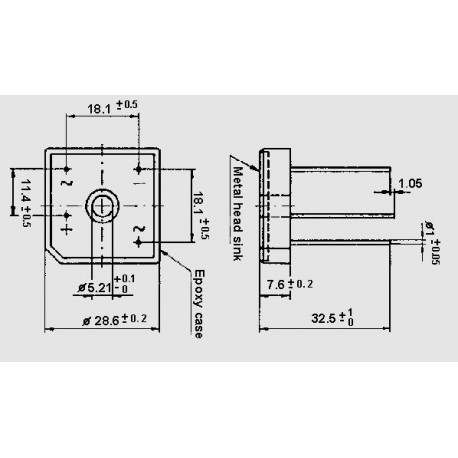

dimensions B _ C 25000 DR

B 500 C 25000 DR

1989 B 500 C 25000 DR FB2510L FB2510L power bridge rectifiers 25A. • glass passivated• operating temperature range: -55...+150°C• wire

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FB2510L
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 25
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

2,69 €

Stock: 431

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
