B 250 C 25000 FS

Taiwan Semiconductor bridge rectifier series GBPC 25

  • power bridge rectifiers
  • glass passivated
  • with a tab terminal (B_ FS) or a wire bonding (B_ DR)
  • comply with UL94V-0
  • operating temperature: -55 to +150°C
  • maximal solderability: 260°C (10s)
  • thermal resistance: 1,5°C/W
  • forward current: 25A

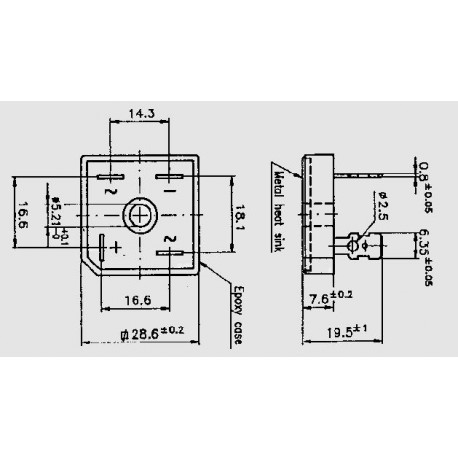

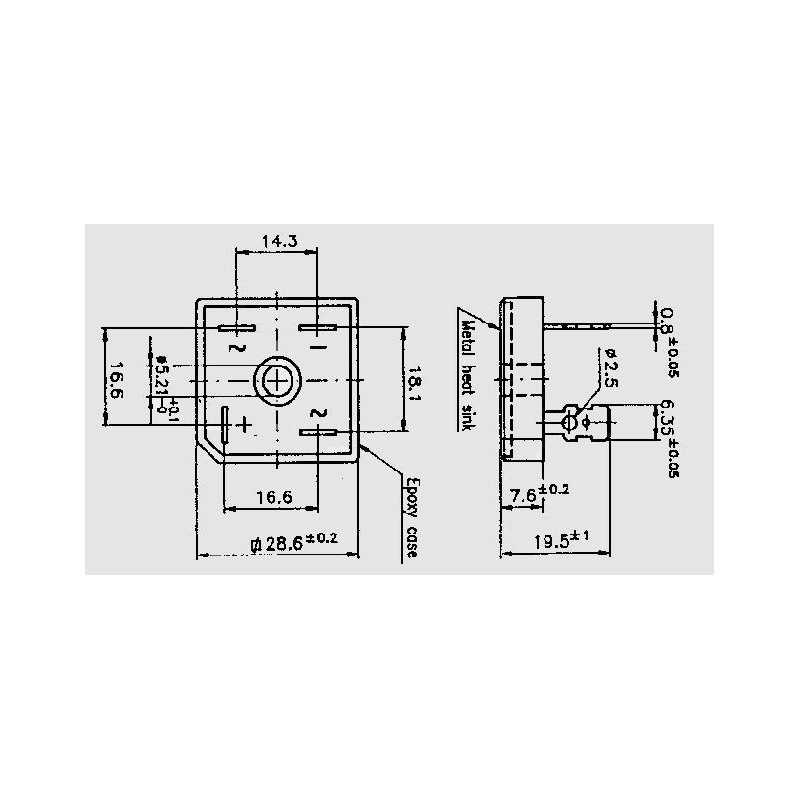

dimensions B _ C 25000 FS

B 250 C 25000 FS

1973 B 250 C 25000 FS GBPC2506 GBPC2506 Taiwan Semiconductor bridge rectifier series GBPC 25. power bridge rectifiers glass passivated with a tab terminal (B_ FS) or a wire bonding (B_ DR) comply with UL94V-0 operating temperature: -55 to +150°C maximal solderability: 260°C (10s) thermal resistance: 1,5°C/W forward current: 25A

Specifications

manufacturer
Manufacturer's name GBPC2506
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 25
Reverse current [µA] 5
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

2,19 €

Stock: 116
Next incoming goods:
CW 44/2024
500 units

Further delivery:
CW 12/2025

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
