B 80 C 15000 DR

Taiwan Semiconductor bridge rectifier series GBPC 15

  • power bridge rectifiers
  • glass passivated
  • in an epoxy housing (UL94V-0) with cooling plate
  • with a tab terminal (B_ FS) or a wire bonding (B_ DR)
  • maximal solderability: 260°C (10s)
  • operating temperature: -55 to +150°C
  • thermal resistance: 1,5°C/W
  • forward current: 15A

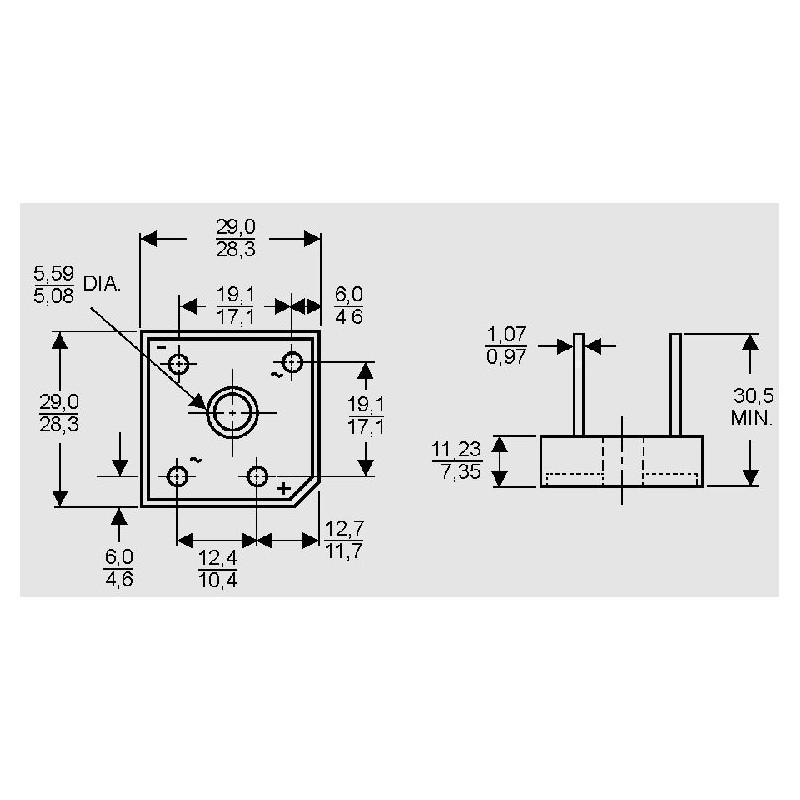

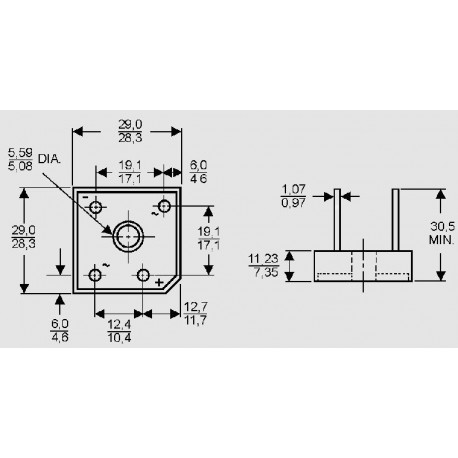

dimensions B _ C 15000 DR

B 80 C 15000 DR

1991 B 80 C 15000 DR GBPC1502W GBPC1502W Taiwan Semiconductor bridge rectifier series GBPC 15. power bridge rectifiers glass passivated in an epoxy housing (UL94V-0) with cooling plate with a tab terminal (B_ FS) or a wire bonding (B_ DR) maximal solderability: 260°C (10s) operating temperature: -55 to +150°C thermal resistance: 1,5°C/W forward current: 15A

Specifications

manufacturer
Manufacturer's name GBPC1502W
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 15
Reverse current [µA] 5
(Max.) RMS voltage [V] 140
Data Sheet

Unit price

2,19 €

Stock: 1007
Further delivery:
CW 03/2027

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
