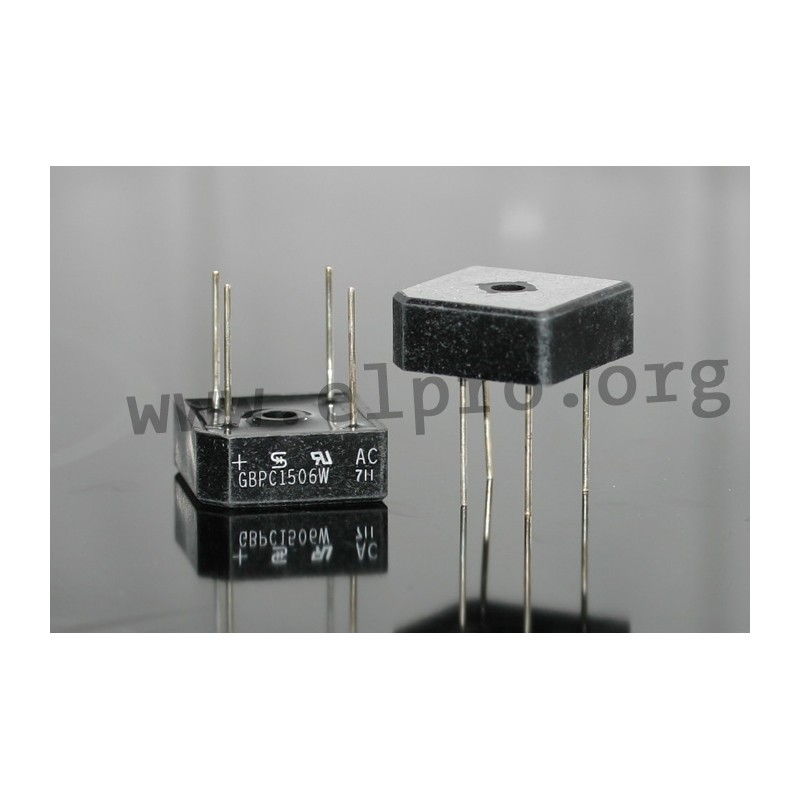

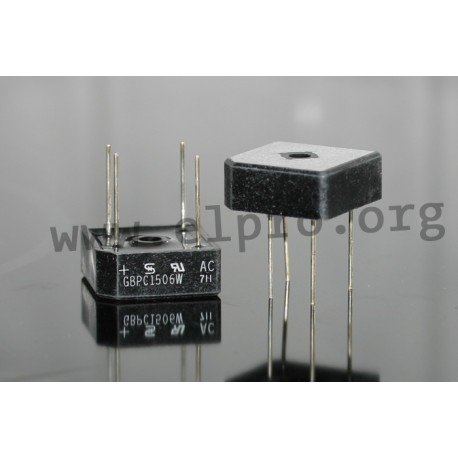

B 250 C 15000 DR

Taiwan Semiconductor bridge rectifier series GBPC 15

  • power bridge rectifiers
  • glass passivated
  • in an epoxy housing (UL94V-0) with cooling plate
  • with a tab terminal (B_ FS) or a wire bonding (B_ DR)
  • maximal solderability: 260°C (10s)
  • operating temperature: -55 to +150°C
  • thermal resistance: 1,5°C/W
  • forward current: 15A
B 250 C 15000 DR

B 250 C 15000 DR

1970 B 250 C 15000 DR GBPC1506W GBPC1506W Taiwan Semiconductor bridge rectifier series GBPC 15. power bridge rectifiers glass passivated in an epoxy housing (UL94V-0) with cooling plate with a tab terminal (B_ FS) or a wire bonding (B_ DR) maximal solderability: 260°C (10s) operating temperature: -55 to +150°C thermal resistance: 1,5°C/W forward current: 15A

Specifications

manufacturer
Manufacturer's name GBPC1506W
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 15
Reverse current [µA] 5
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

2,19 €

Stock: 594
Further delivery:
CW 20/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
