ES 1 GL

Taiwan Semiconductor SMD rectifier diode series ES 1

  • super fast SMD rectifier diodes
  • in a Sub-SMA/SOD123W/Thin-SMD/SOD128 housing
  • glass passivated
  • comply with UL94V-0
  • with a low power loss
  • solderability: JESD22-B102
  • forward current: 1A

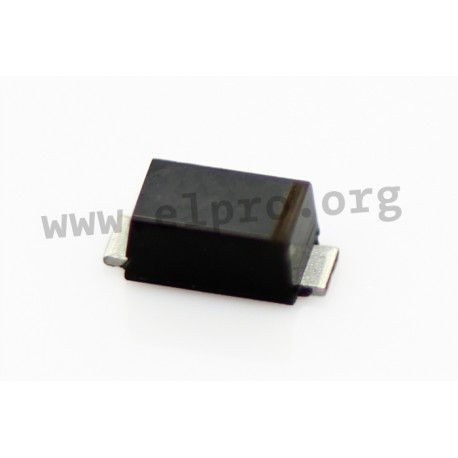

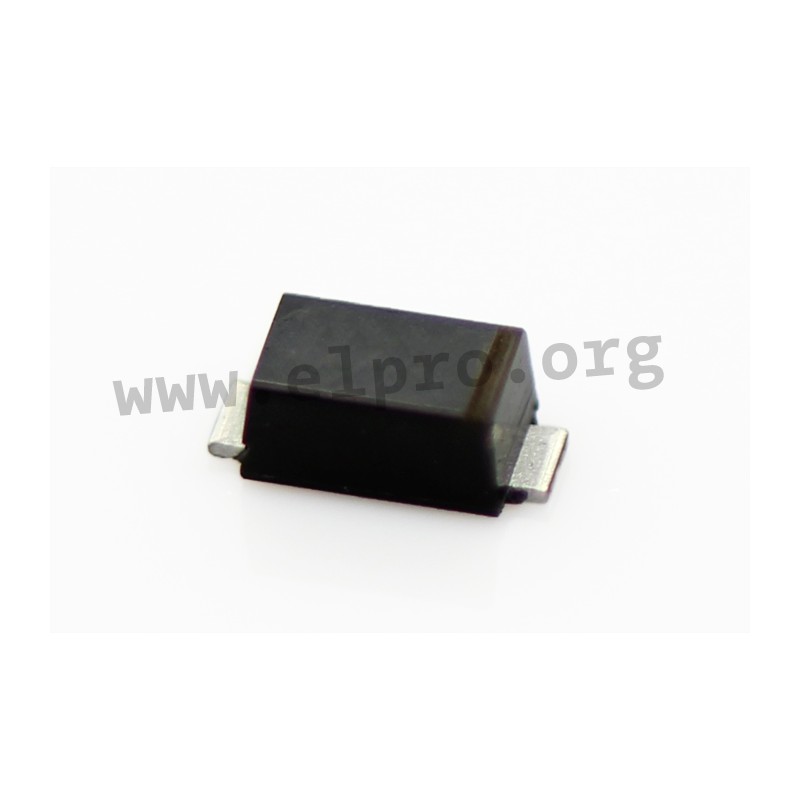

ES1GL, Taiwan Semiconductor rectifier diodes, 1A, SMD, super fast, ES 1 series

ES 1 GL

25263 ES 1 GL ES1GL ES1GL Taiwan Semiconductor SMD rectifier diode series ES 1. super fast SMD rectifier diodes in a Sub-SMA/SOD123W/Thin-SMD/SOD128 housing glass passivated comply with UL94V-0 with a low power loss solderability: JESD22-B102 forward current: 1A

Specifications

manufacturer
Manufacturer's name ES1GL

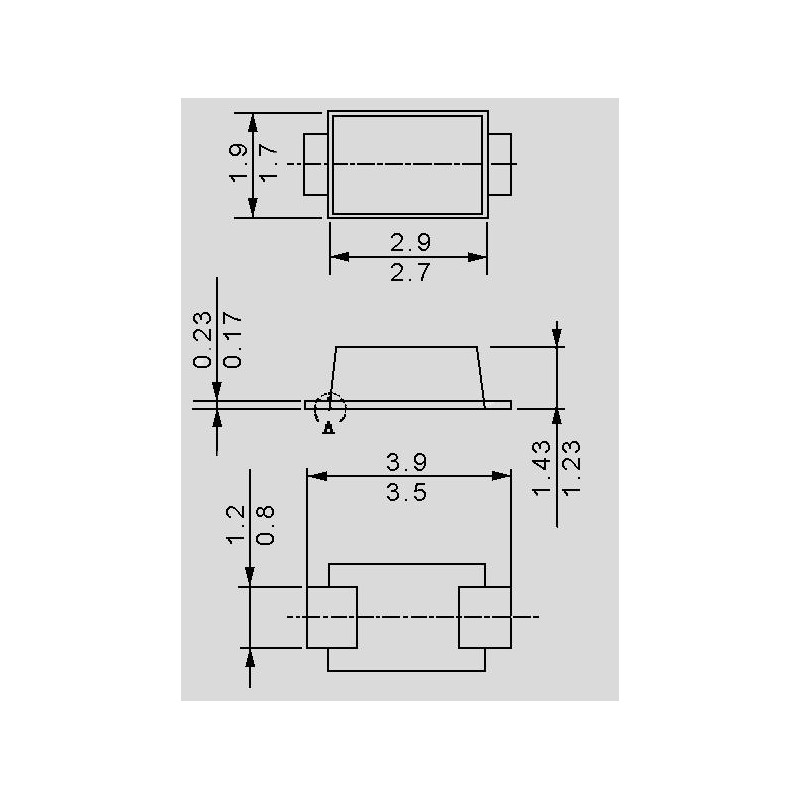

Case DO219AB/Sub-SMA
Peak forward surge current [A] 30
Max. reverse recovery time [ns] 35
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,3
(Max.) average forward (rectified) current [A] 1
Reverse current [µA] 5
Data Sheet

Unit price

0,067 €

Stock: 26347
Further delivery:
CW 12/2025

Minimum order quantity 1 to 47 units or multiples of 100 plus 0 to 47 .
