BZY 55 B 6,8 V 0805

Taiwan Semiconductor zener diode series BZY55B

Zener diodes in a 0805 housing with a power dissipation of 0,5W. These diodes have a tolerance of ±2% and are solderable according to MIL-STD-202, Meth. 208. They are suitable for direct PCB mounting (SMD) and have a ceramic housing. We offer various types of this Taiwan Semiconductor series.

  • rated voltage: 2,7 to 33V
  • power dissipation: 0,5W
  • housing: 0805
  • operating temperature: -55 to +150°C
  • taped

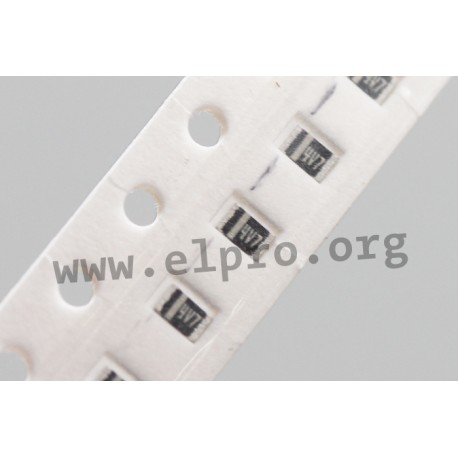

0805

BZY 55 B 6,8 V 0805

45703 BZY 55 B 6,8 V 0805 BZY55B6V8 RYG BZY55B6V8 RYG Taiwan Semiconductor zener diode series BZY55B. Zener diodes in a 0805 housing with a power dissipation of 0,5W. These diodes have a tolerance of ±2% and are solderable according to MIL-STD-202, Meth. 208. They are suitable for direct PCB mounting (SMD) and have a ceramic housing. We offer various types of this Taiwan Semiconductor series. rated voltage: 2,7 to 33V power dissipation: 0,5W housing: 0805 operating temperature: -55 to +150°C taped

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BZY55B6V8 RYG

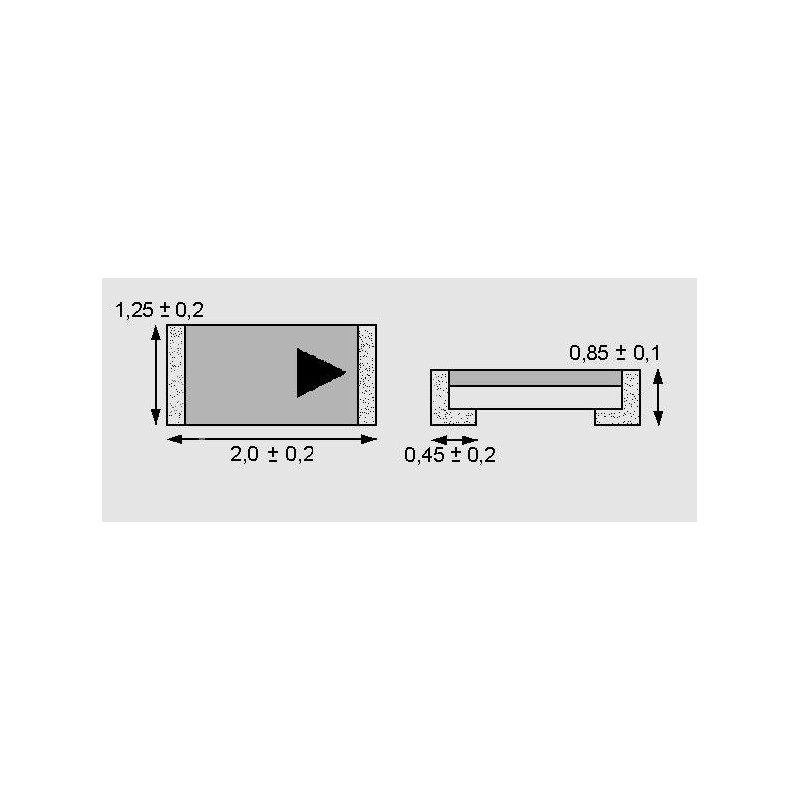

Case 0805
Reverse current [µA] 0,1
Reverse voltage [V] 3
Zener voltage range [V] 6,66 - 6,94
Max. zener impedance [Ω] 8
Test current [mA] 5
Power dissipation [W] 0,5

Unit price

0,033 €

Stock: 9300

Minimum order quantity 100 units or
multiples of 100.
