> Semiconductors>Diodes>Zener diodes>Taiwan Semiconductor Zener diodes, 0,5W, 2%, DO35 housing, BZX55B series>ZD 0,5 W 27 V 2%

Manufacturers

ZD 0,5 W 27 V 2%

Z-diodes 0.5 W

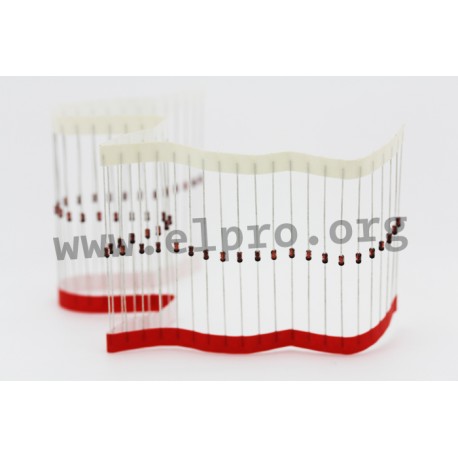

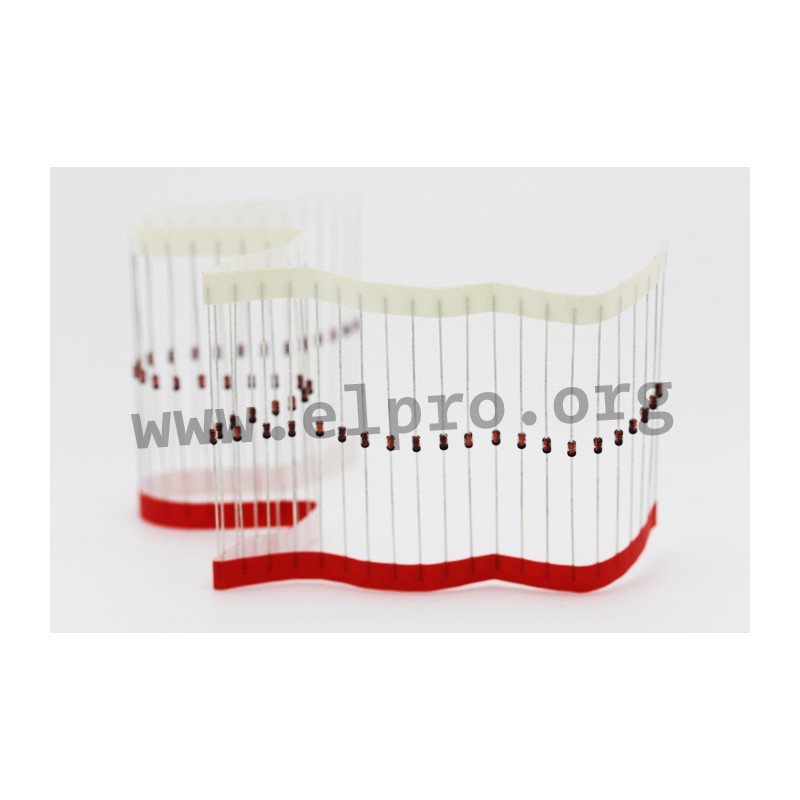

* taped

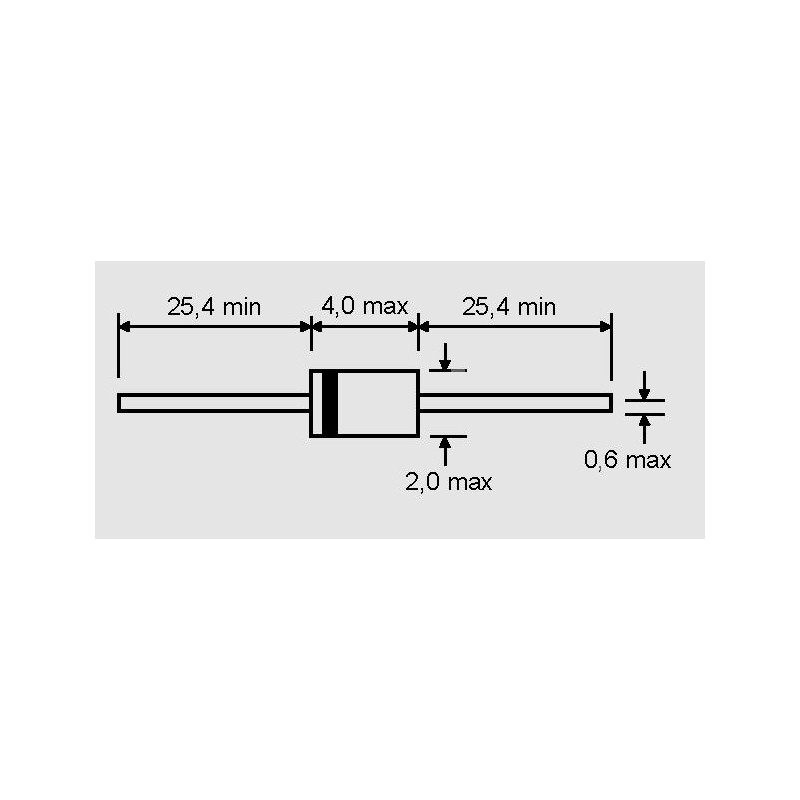

* case: DO35
* only 2% tolerance UZ
* max. solderability 260°C/10s
* series BZX55B_ by Taiwan Semiconductor
ZD 0,5 W_

ZD 0,5 W 27 V 2%

45666 ZD 0,5 W 27 V 2% BZX55B27 A0G BZX55B27 A0G Z-diodes 0.5 W. * taped* case: DO35* only 2% tolerance UZ* max. solderability 260°C/10s* series BZX55B_ by Taiwan Semiconductor

Specifications

manufacturer
Manufacturer's name BZX55B27 A0G
Case DO35
Reverse current [µA] 0,1
Reverse voltage [V] 20
Zener voltage range [V] 26,46-27,54
Test current [mA] 5
Max. zener impedance [Ω] 80
Power dissipation [W] 0,5
Data Sheet

Unit price

0,0296 €

Stock: 9900
Further delivery:
CW 23/2025

Minimum order quantity 100 units or
multiples of 100.
