ZD 0,5 W 8,2 V 2%

Z-diodes 0.5 W

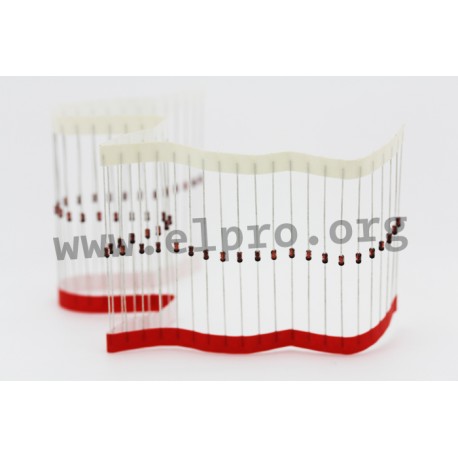

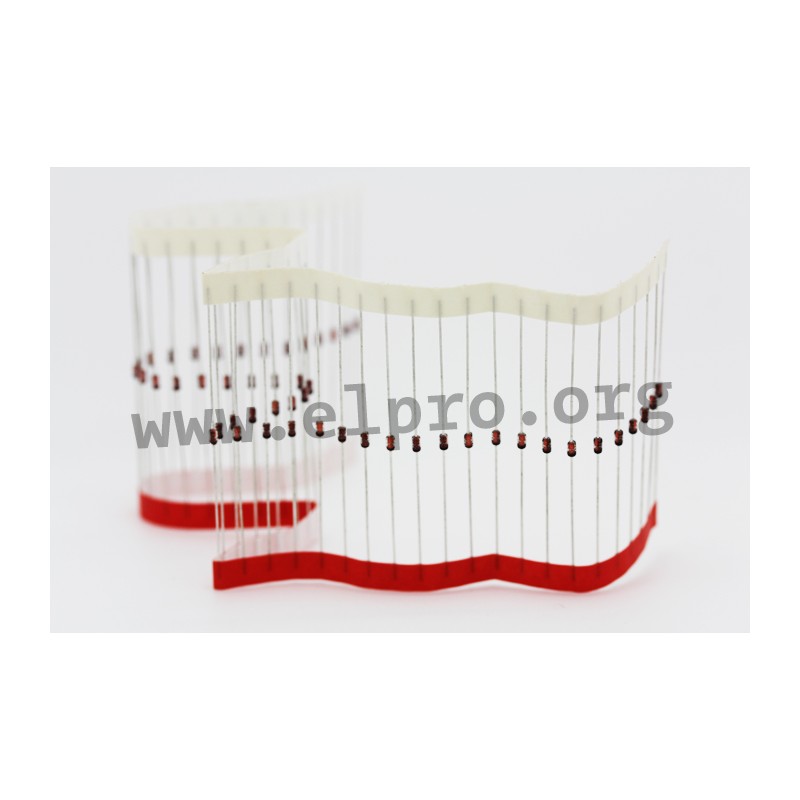

* taped

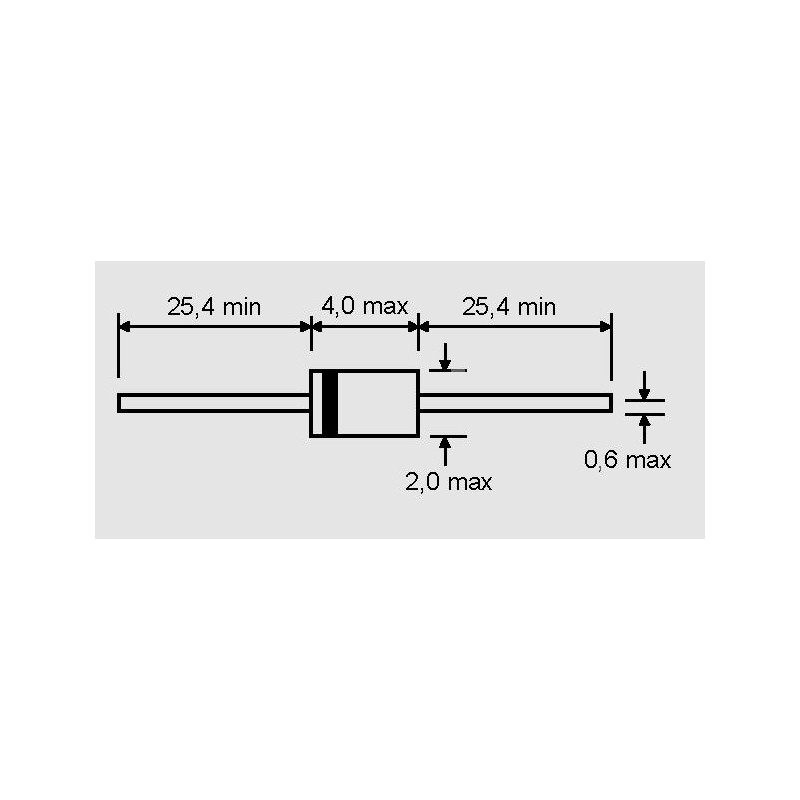

* case: DO35
* only 2% tolerance UZ
* max. solderability 260°C/10s
* series BZX55B_ by Taiwan Semiconductor
ZD 0,5 W_

ZD 0,5 W 8,2 V 2%

45659 ZD 0,5 W 8,2 V 2% BZX55B8V2 A0G BZX55B8V2 A0G Z-diodes 0.5 W. * taped* case: DO35* only 2% tolerance UZ* max. solderability 260°C/10s* series BZX55B_ by Taiwan Semiconductor

Specifications

manufacturer
Manufacturer's name BZX55B8V2 A0G
Case DO35
Reverse current [µA] 0,1
Reverse voltage [V] 6,2
Zener voltage range [V] 8,04-8,36
Test current [mA] 5
Max. zener impedance [Ω] 7
Power dissipation [W] 0,5
Data Sheet

Unit price

0,0296 €

Stock: 7700
Further delivery:
CW 19/2025

Minimum order quantity 100 units or
multiples of 100.
