> Semiconductors>Diodes>Zener diodes>Taiwan Semiconductor Zener diodes, 0,2W, SMD, 2%, SOD323F housing, BZT52B series>BZT 52 B 3,9 V

Manufacturers

BZT 52 B 3,9 V

SMD Z-diodes 0.2 W

* taped
* case: SOD323F
* only 2% tolerance UZ
* terminals solderable per MIL-STD-202, meth. 208
* max. solderability 260°C/10s
* series BZT52B_S by Taiwan Semiconductor

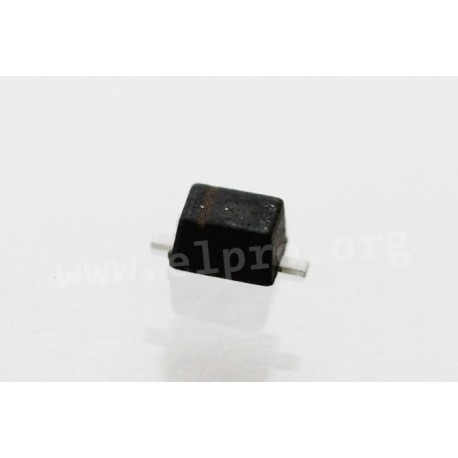

SOD323F

BZT 52 B 3,9 V

45681 BZT 52 B 3,9 V BZT52B3V9S RRG BZT52B3V9S RRG SMD Z-diodes 0.2 W. * taped* case: SOD323F* only 2% tolerance UZ* terminals solderable per MIL-STD-202, meth. 208* max. solderability 260°C/10s* series BZT52B_S by Taiwan Semiconductor

Specifications

manufacturer
Manufacturer's name BZT52B3V9S RRG

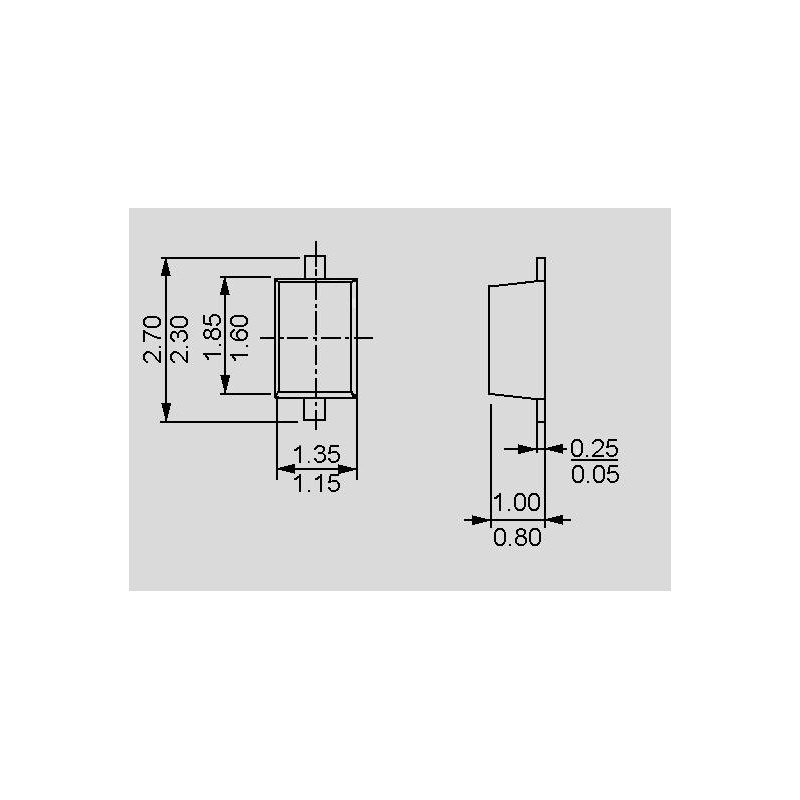

Case SOD323F
Reverse current [µA] 2,7
Reverse voltage [V] 1
Zener voltage range [V] 3,82 - 3,98
Test current [mA] 5
Max. zener impedance [Ω] 90
Power dissipation [mW] 0,2
Data Sheet

Unit price

0,032 €

Stock: 300
Next incoming goods:
CW 03/2025
6000 units

Further delivery:
CW 22/2025

Minimum order quantity 100 units or
multiples of 100.
