> Semiconductors>Diodes>Zener diodes>Taiwan Semiconductor Zener diodes, 0,5W, SMD, 5%, 1206 housing, BZS55C series>BZS 55 C 15 V 1206

Manufacturers

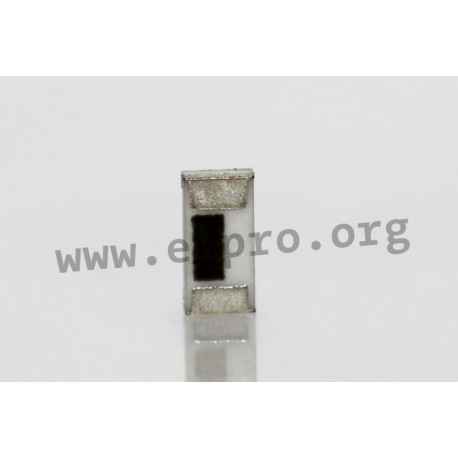

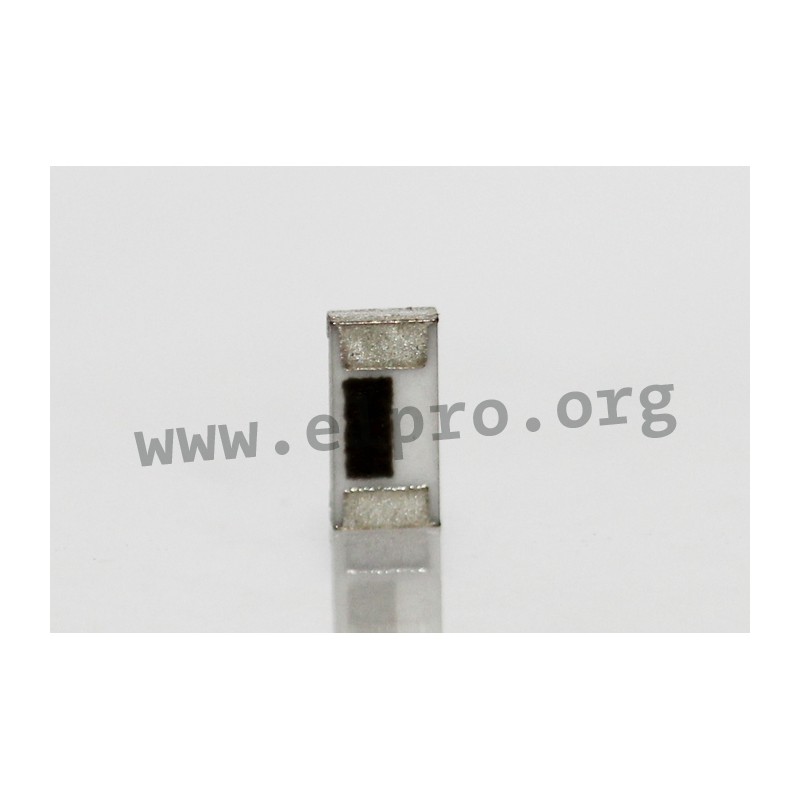

BZS 55 C 15 V 1206

Taiwan Semiconductor zener diode series BZS55C

Zener diodes in a 1206 SMD housing with 0,5W. These diodes have a tolerance of ±5% and are solderable according to MIL-STD-202, Meth. 208. They are suitable for direct PCB mounting and have a ceramic housing. We offer various types of this Taiwan Semiconductor series.

  • rated voltage: 2,7 to 15V
  • power dissipation: 0,5W

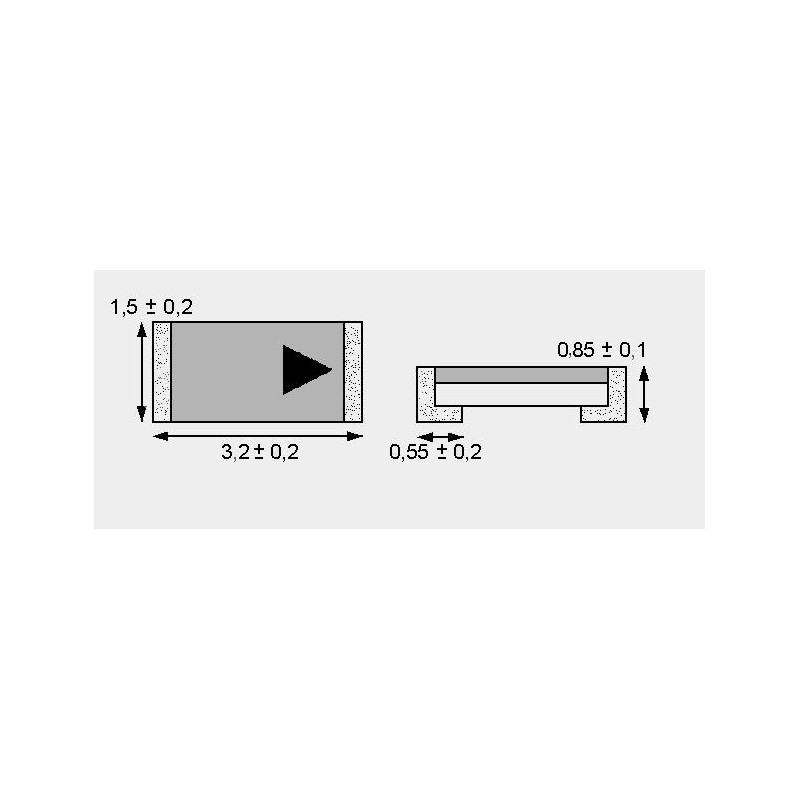

  • housing: 1206
  • operating temperature: -55 to +150°C
  • taped
BZS 55 C

BZS 55 C 15 V 1206

45724 BZS 55 C 15 V 1206 BZS55C15 RXG BZS55C15 RXG Taiwan Semiconductor zener diode series BZS55C. Zener diodes in a 1206 SMD housing with 0,5W. These diodes have a tolerance of ±5% and are solderable according to MIL-STD-202, Meth. 208. They are suitable for direct PCB mounting and have a ceramic housing. We offer various types of this Taiwan Semiconductor series. rated voltage: 2,7 to 15V power dissipation: 0,5W housing: 1206 operating temperature: -55 to +150°C taped

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name BZS55C15 RXG
Case 1206
Reverse current [µA] 0,1
Reverse voltage [V] 11
Zener voltage range [V] 14,25 - 15,75
Max. zener impedance [Ω] 30
Test current [mA] 5
Power dissipation [mW] 500
Data Sheet

Unit price

0,0254 €

Stock: 3300

Minimum order quantity 100 units or
multiples of 100.
