BZS55C6V8 RAG

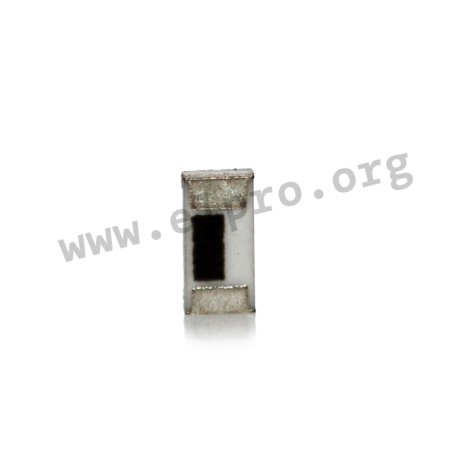

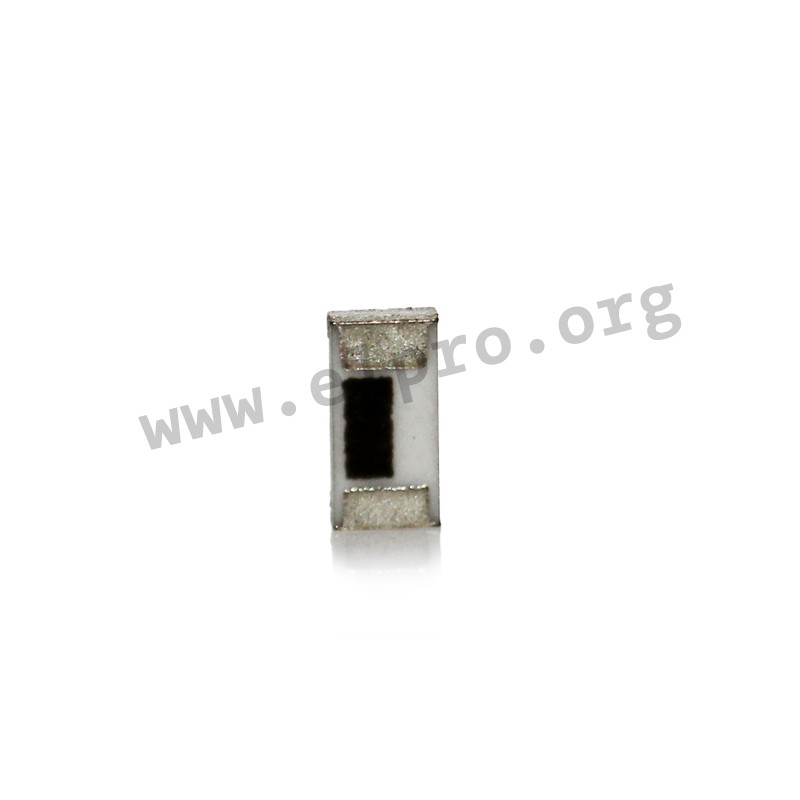

Taiwan Semiconductor zener diode series BZS55C

Zener diodes in a 1206 SMD housing with 0,5W. These diodes have a tolerance of ±5% and are solderable according to MIL-STD-202, Meth. 208. They are suitable for direct PCB mounting and have a ceramic housing. We offer various types of this Taiwan Semiconductor series.

  • rated voltage: 2,7 to 15V
  • power dissipation: 0,5W
  • housing: 1206
  • operating temperature: -55 to +150°C
  • taped
BZS55C6V8 RAG, Taiwan Semiconductor Zener diodes, 0,5W, SMD, 5%, 1206 housing, BZS55C series

BZS55C6V8 RAG

243775 BZS55C6V8 RAG BZS55C6V8 RAG Taiwan Semiconductor zener diode series BZS55C. Zener diodes in a 1206 SMD housing with 0,5W. These diodes have a tolerance of ±5% and are solderable according to MIL-STD-202, Meth. 208. They are suitable for direct PCB mounting and have a ceramic housing. We offer various types of this Taiwan Semiconductor series. rated voltage: 2,7 to 15V power dissipation: 0,5W housing: 1206 operating temperature: -55 to +150°C taped

Specifications

manufacturer
Manufacturer's name BZS55C6V8 RAG
Case 1206
Reverse current [µA] 0,1
Zener voltage range [V] 6,46...7,14
Power dissipation [mW] 500
Data Sheet

Unit price

0,037 €

Stock: 10000
Further delivery:
CW 26/2025

Minimum order quantity 100 units or
multiples of 100.
