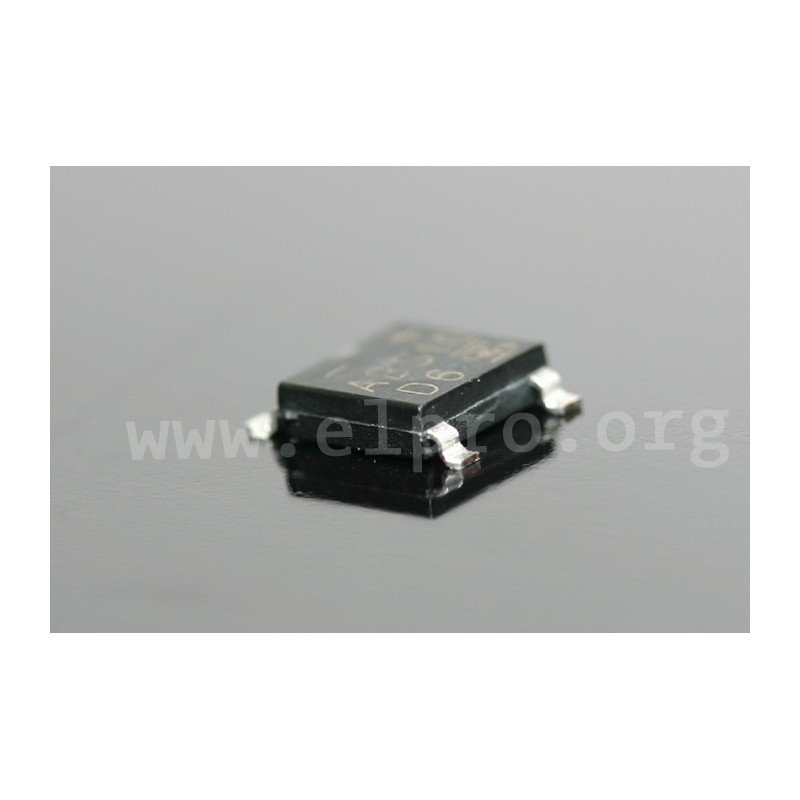

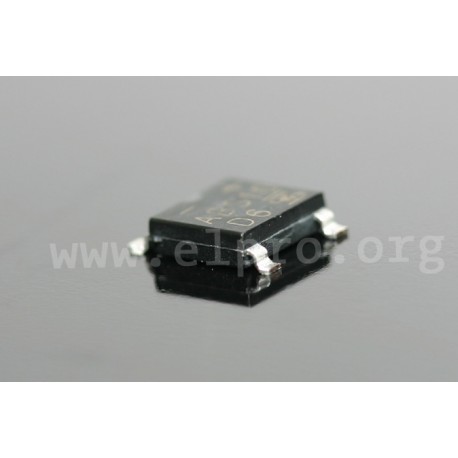

DF 10 Mini 1A

Taiwan Semiconductor SMD rectifier series ABS/DBLS10_G/HDBLS10_G

  • SMD bridge rectifiers
  • suitable for direct PCB mounting
  • glass passivated junction
  • forward current: 1A
DF 10 Mini 1A

DF 10 Mini 1A

25784 DF 10 Mini 1A ABS10 ABS10 Taiwan Semiconductor SMD rectifier series ABS/DBLS10_G/HDBLS10_G. SMD bridge rectifiers suitable for direct PCB mounting  glass passivated junction forward current: 1A

Specifications

manufacturer
Manufacturer's name ABS10
Case Thin SMD
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 0,95
(Max.) average forward (rectified) current [A] 1
Reverse current [µA] 10
(Max.) RMS voltage [V] 700
Data Sheet

Unit price

0,097 €

Stock: 35200
Further delivery:
CW 04/2025

Minimum order quantity 100 units or
multiples of 100.
