> Semiconductors>Rectifiers>SMD housing>Taiwan Semiconductor SMD rectifiers, 1A, ABS/DBLS10_G/HDBLS10_G series>DF 02 Mini 1A

Manufacturers

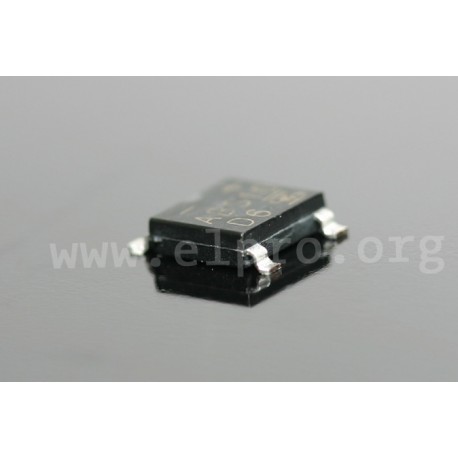

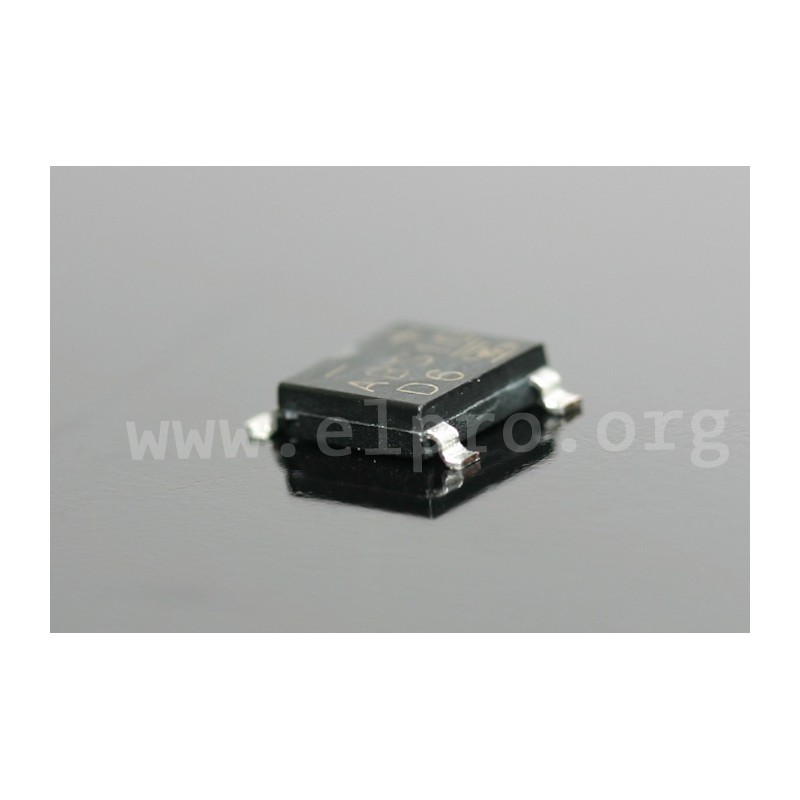

DF 02 Mini 1A

Taiwan Semiconductor SMD rectifier series ABS/DBLS10_G/HDBLS10_G

  • SMD bridge rectifiers
  • suitable for direct PCB mounting
  • glass passivated junction
  • forward current: 1A
DF _ Mini 1A

DF 02 Mini 1A

25782 DF 02 Mini 1A ABS2 ABS2 Taiwan Semiconductor SMD rectifier series ABS/DBLS10_G/HDBLS10_G. SMD bridge rectifiers suitable for direct PCB mounting  glass passivated junction forward current: 1A

Specifications

manufacturer
Manufacturer's name ABS2
Case Thin SMD
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 0,95
(Max.) average forward (rectified) current [A] 1
Reverse current [µA] 10
(Max.) RMS voltage [V] 140
Data Sheet

Unit price

0,143 €

Stock: 7888
Further delivery:
CW 45/2026

Minimum order quantity 1 to 88 units or multiples of 100 plus 0 to 88 .
