MUGE 16

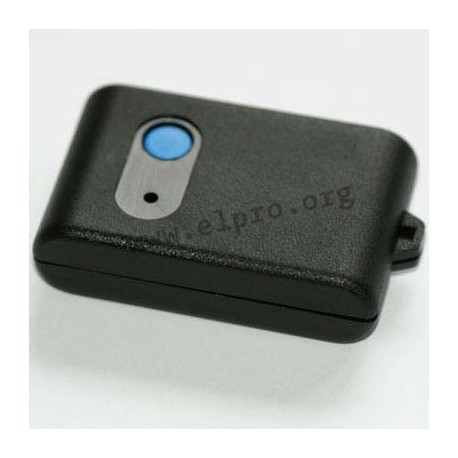

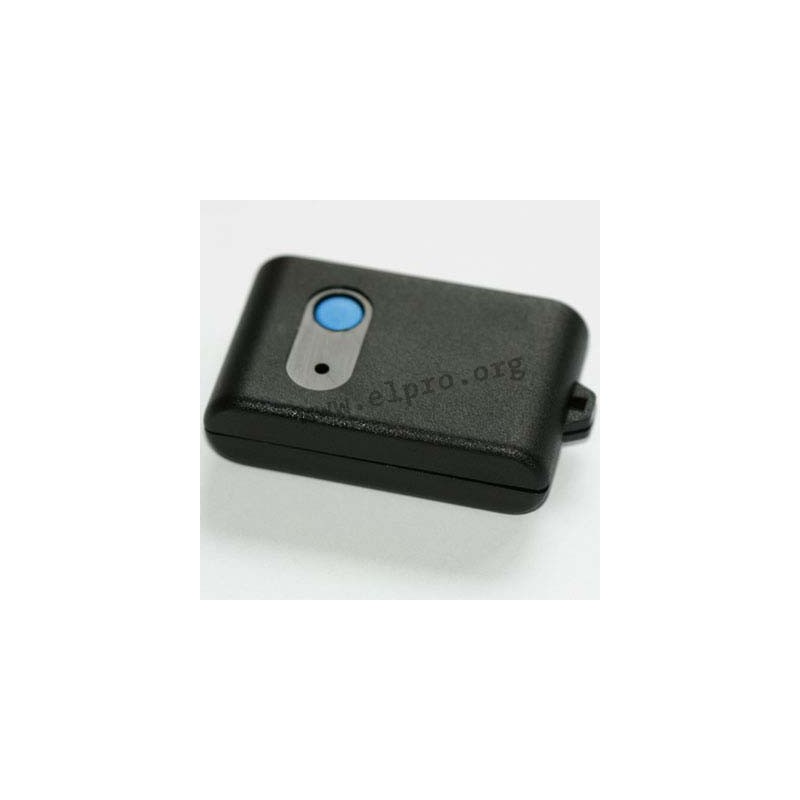

• transmission receipt enclosure for a remote control
• consisting of two shell halves which snap together to connect.
• lap joint construction
• 12V-Battery is required
• the printed circuit is fastened without screws onto a molded stud.
• in the upper section, there is a countersunk keypad.
• a button actuator is included which lies adjacent to an opening for a LED
• the firmly attached plastic button has a stroke of approx. 2mm, e.g. for operating a microswitch which is beneath (not supplied in the delivery)

MUGE 16

MUGE 16

17008 MUGE 16 PP022NJ-S PP022NJ-S * transmission receipt enclosure for a remote control* consisting of two shell halves which snap together to connect.* lap joint construction* 12V-Battery is required* the printed circuit is fastened without screws onto a molded stud.* in the upper section, there is a countersunk keypad.* a button actuator is included which lies adjacent to an opening for a LED * the firmly attached plastic button has a stroke of approx. 2mm, e.g. for operating a microswitch which is beneath (not supplied in the delivery)

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PP022NJ-S

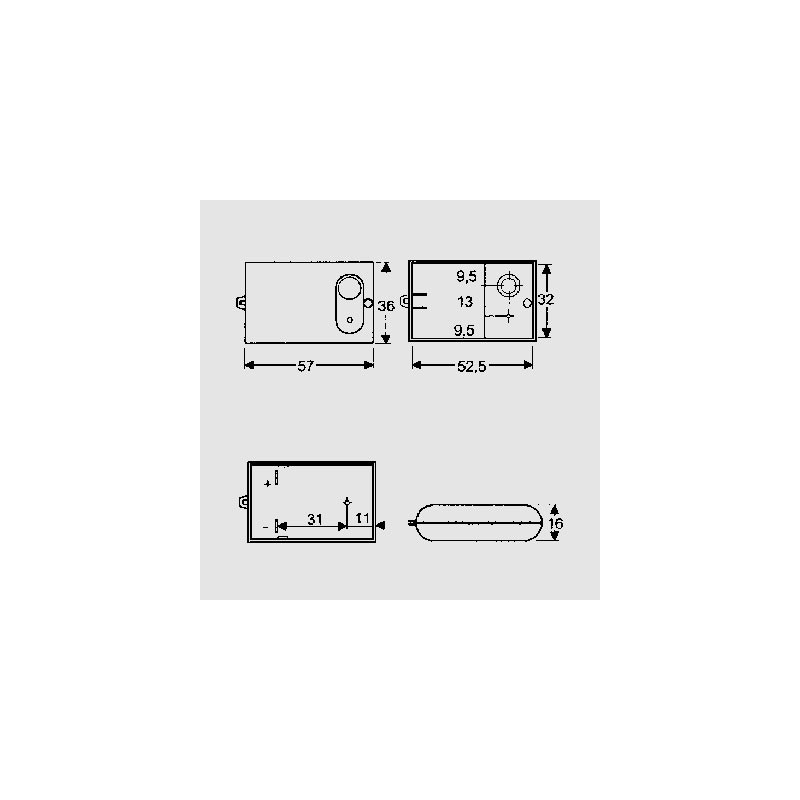

Outside dimensions [mm] 57x36x16
Inside dimensions [mm] 42x32x9

Unit price

1,37 €

Stock: 3

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
