MF30100V3-1000U-A99

Sunon fan 5V DC series MF

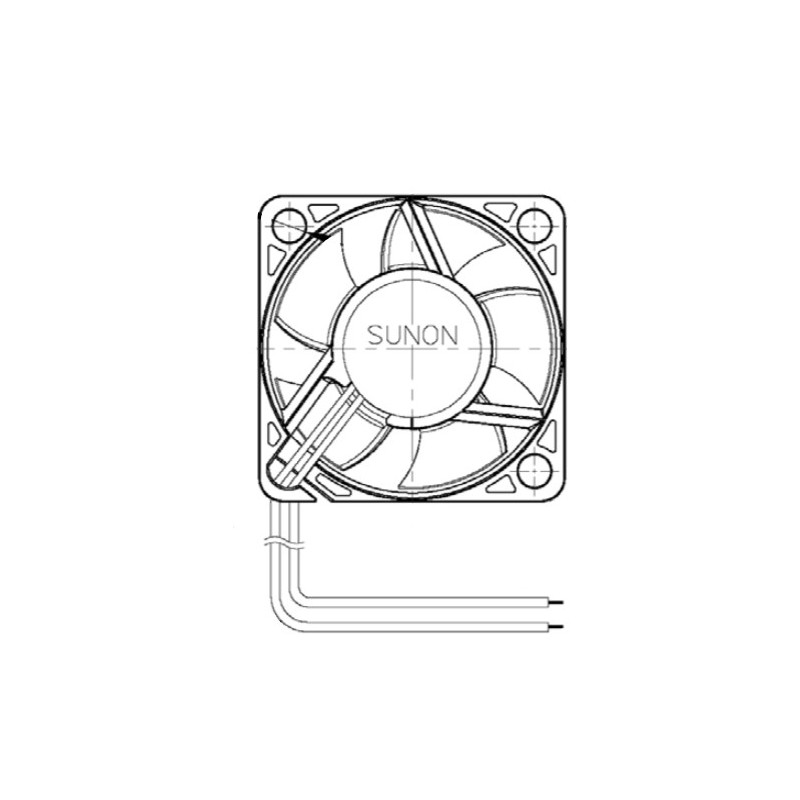

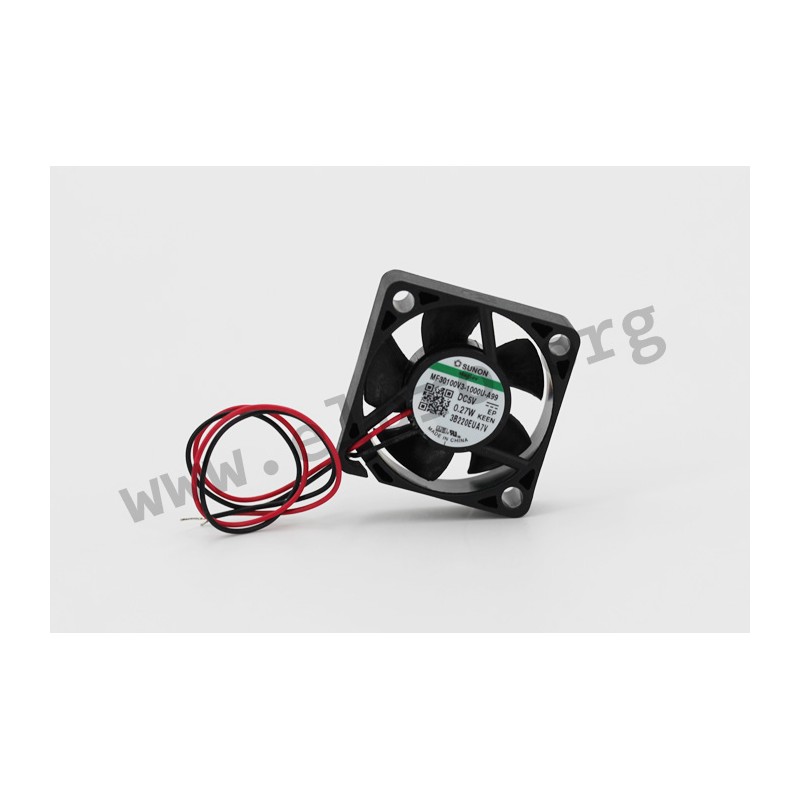

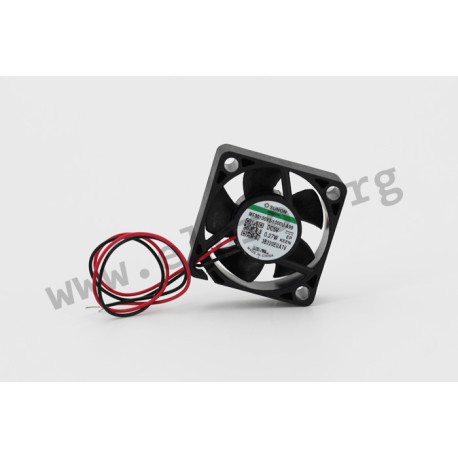

Sunon fans with dimensions of 30x30x10mm and a nominal voltage of 5V DC. These fans are equipped with a 4-pole DC motor that has a Vapo bearing system for reduced noise levels during operation. The frame and impeller are made from filled thermoplastic (UL94V-0) and feature a magnetic levitation system for further noise reduction measures. Connection is possible through tinned copper wire UL1571 AWG28 strands.

MF30100V3-1000U-A99

236561 MF30100V3-1000U-A99 MF30100V3-1000U-A99 Sunon fan 5V DC series MF. Sunon fans with dimensions of 30x30x10mm and a nominal voltage of 5V DC. These fans are equipped with a 4-pole DC motor that has a Vapo bearing system for reduced noise levels during operation. The frame and impeller are made from filled thermoplastic (UL94V-0) and feature a magnetic levitation system for further noise reduction measures. Connection is possible through tinned copper wire UL1571 AWG28 strands.

Specifications

manufacturer
Manufacturer's name MF30100V3-10...
Current [A] 0,045
Dimensions 30x30x10mm
Nominal voltage [V] 5
Electric power [W] 0,23
Noise [dBA] 30,2
Air performance [m3/h] 4,24
Number of revolutions [U/min] 6000
Data Sheet

Unit price

4,29 €

Stock: 1215
Further delivery:
CW 14/2025
