MF40200V2-1000U-A99

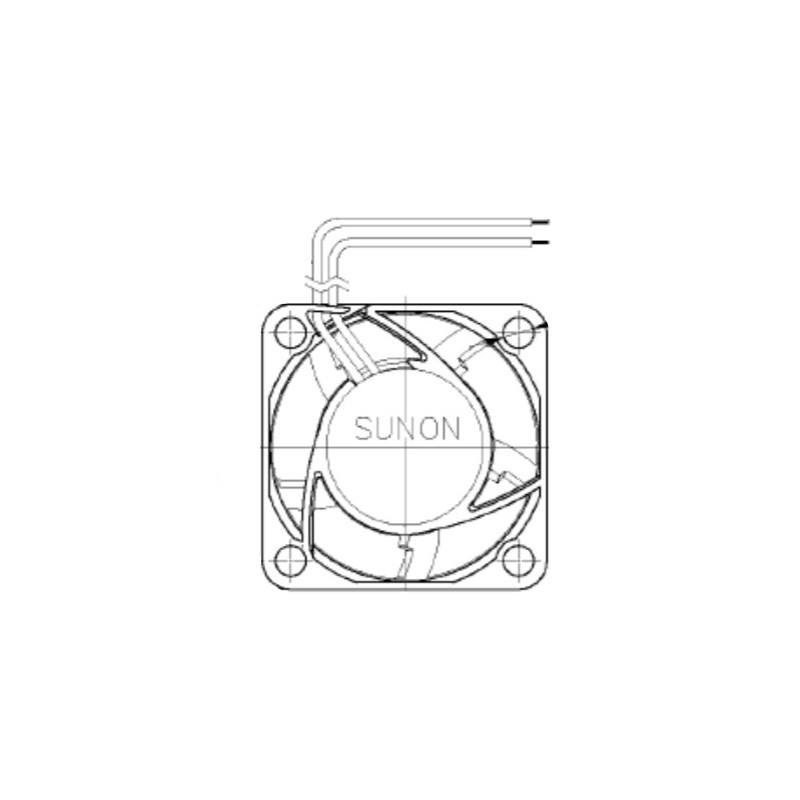

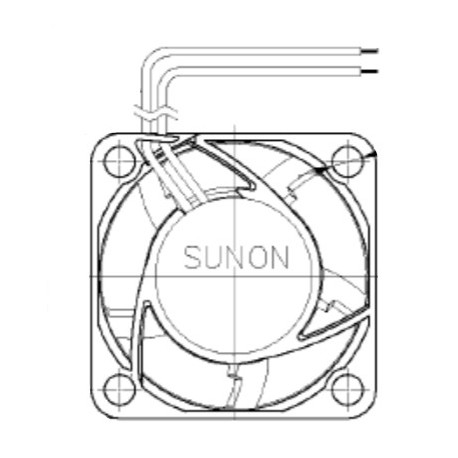

Sunon fan series MF

DC fans with dimensions of 40x40x20mm and a rated voltage of 5V DC. These fans are equipped with a vapour chamber bearing and a magnetic levitation system. The impeller and frame are made of filled thermoplastic PBT (UL94V-0). They are connected through AWG26 wires.

MF40200V2-1000U-A99

236517 MF40200V2-1000U-A99 MF40200V2-1000U-A99 Sunon fan series MF. DC fans with dimensions of 40x40x20mm and a rated voltage of 5V DC. These fans are equipped with a vapour chamber bearing and a magnetic levitation system. The impeller and frame are made of filled thermoplastic PBT (UL94V-0). They are connected through AWG26 wires.

Specifications

manufacturer
Manufacturer's name MF40200V2-10...
Current [A] 0,107
Dimensions 40x40x20mm
Nominal voltage [V] 5
Electric power [W] 0,54
Noise [dBA] 21
Air performance [m3/h] 13,07
Number of revolutions [U/min] 6000
Data Sheet

Unit price

3,69 €

Stock: 287
Further delivery:
CW 14/2025
