MF 30060 V2-1000U-A99

Sunon fan series MF

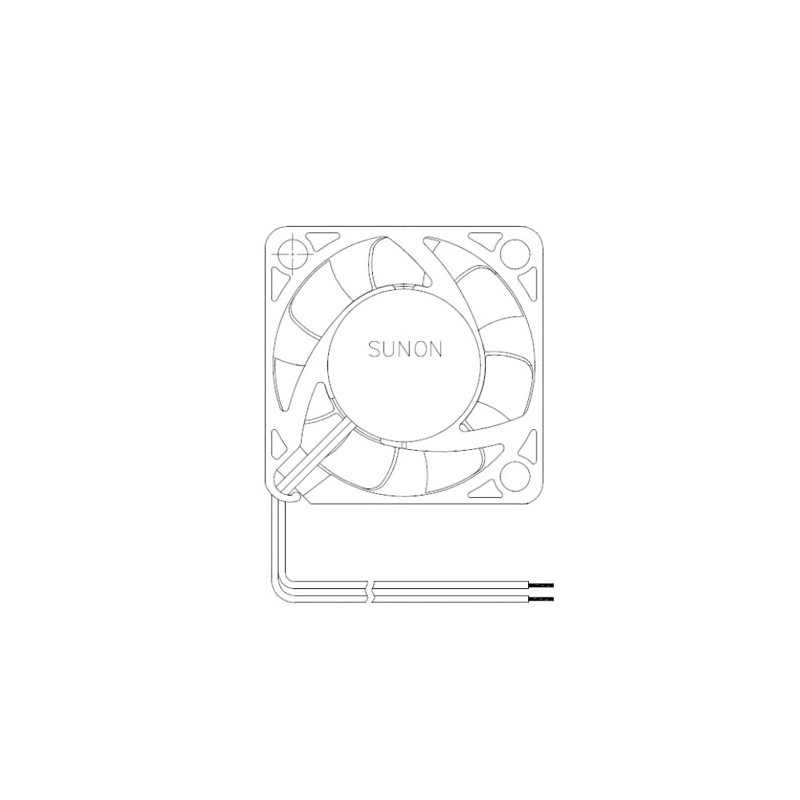

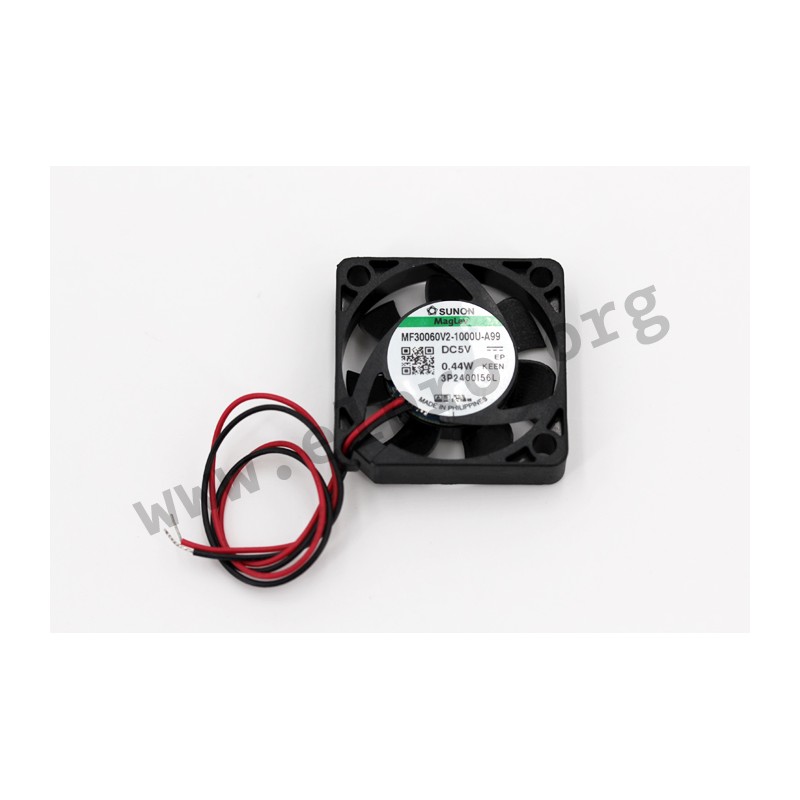

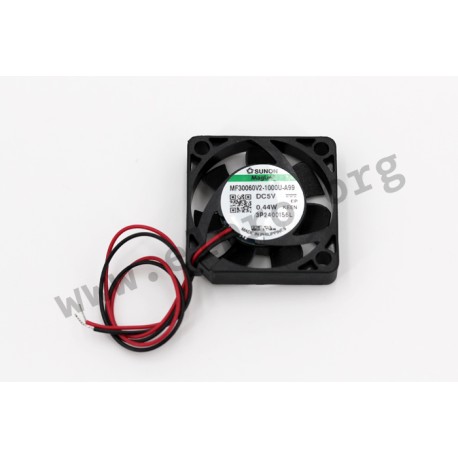

Fans with a size of 30x30x6mm and rated voltage of 5V DC. These fans are equipped with a 4-pole DC motor, vapor bearings and a magnetic levitation system.The impeller and frame are made of thermoplastic PBT (UL94V-0). They are connected through UL1571 AWG28 wires.

MF 30060 V2-1000U-A99

111072 MF 30060 V2-1000U-A99 MF30060V2-1000U-A99 MF30060V2-1000U-A99 Sunon fan series MF. Fans with a size of 30x30x6mm and rated voltage of 5V DC. These fans are equipped with a 4-pole DC motor, vapor bearings and a magnetic levitation system.The impeller and frame are made of thermoplastic PBT (UL94V-0). They are connected through UL1571 AWG28 wires.

Specifications

manufacturer
Manufacturer's name MF30060V2-10...
Current [A] 0,072
Dimensions 30x30x6
Nominal voltage [V] 5
Electric power [W] 0,36
Noise [dBA] 15,7
Air performance [m3/h] 6,28
Number of revolutions [U/min] 7100
Data Sheet

Unit price

4,49 €

Stock: 1251
Further delivery:
CW 18/2025
