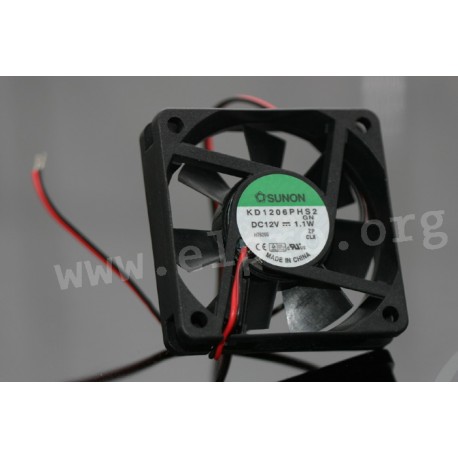

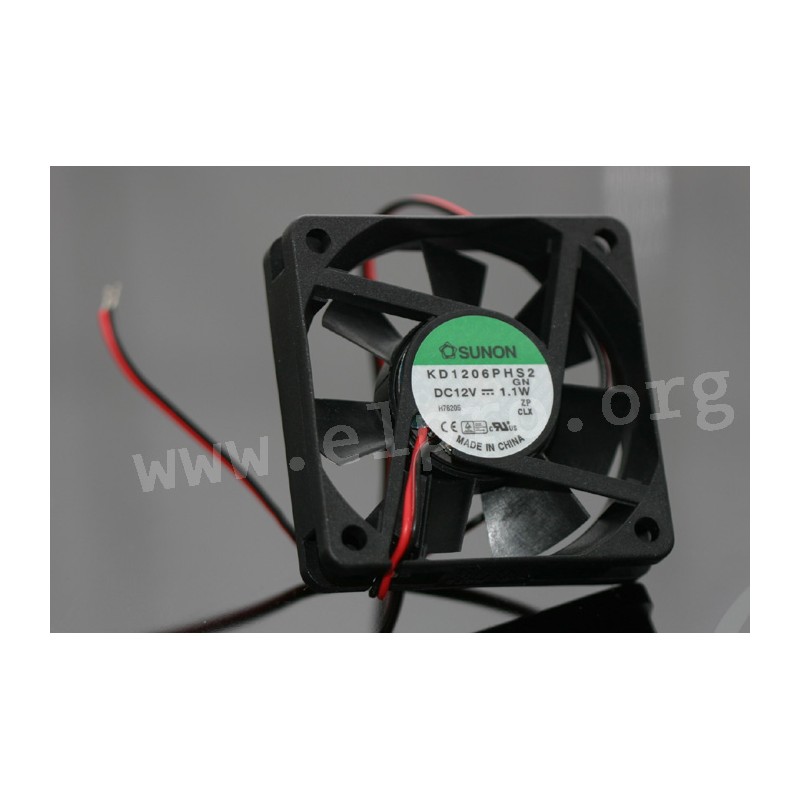

LFH 12V G

Sunon fan 12V DC series MF/HA/LFH

DC fans with either a vapo (MF_/HA_) or sleeve bearing system (LFH_), have 4 poles and are designed as axial fans. Connection to the power source is achieved through stranded wires AWG26. Both impellers and frames feature thermoplastic material that has been filled, rated at UL94V-0 level of flammability resistance. Additionally, these fans boast magnetic levitation systems for noise reduction purposes during operation. The dimensions of these DC fans measure in at an exacting 60x60x15mm model design specifications while running on a constant voltage rating of 12VDC throughout their use lifespan.

LFH 12V G

LFH 12V G

17610 LFH 12V G LFH 12V G Sunon fan 12V DC series MF/HA/LFH. DC fans with either a vapo (MF_/HA_) or sleeve bearing system (LFH_), have 4 poles and are designed as axial fans. Connection to the power source is achieved through stranded wires AWG26. Both impellers and frames feature thermoplastic material that has been filled, rated at UL94V-0 level of flammability resistance. Additionally, these fans boast magnetic levitation systems for noise reduction purposes during operation. The dimensions of these DC fans measure in at an exacting 60x60x15mm model design specifications while running on a constant voltage rating of 12VDC throughout their use lifespan.

Discontinued items. Only remainder of stock available.

Specifications

Current [A] 0,16
Voltage 12V DC
Dimensions 60x60x15mm
Electric power [W] 1,9
Noise [dBA] 31
Air performance [m3/h] 30,22
Number of revolutions [U/min] 4000

Unit price

1,89 €

Stock: 1
