ME70151V1-000U-G99

Sunon fan series ME

DC fans with a vapo bearing system and 12V. These fans have a frame as well as an impeller made of thermoplastic PBT (UL94V-0) and a 4-pole brushless motor (MagLev). They are suitable for various applications and have a long service life. We offer the type ME70151V1-000U-G99 and ME70151V3-000U-A99 of this Sunon series.

  • rated voltage: 12V DC

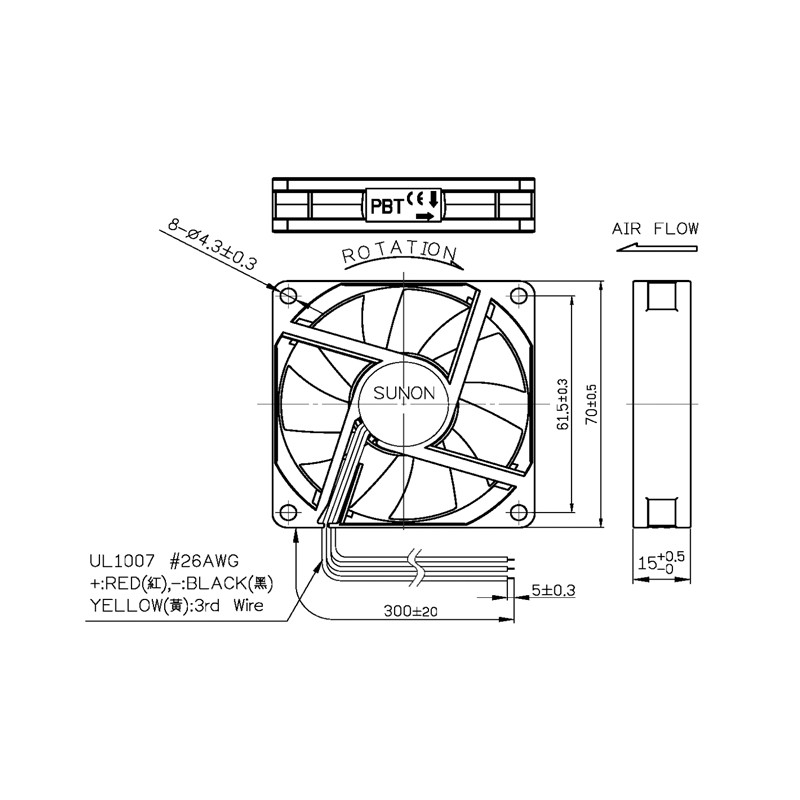

  • dimensions: 70x70x15mm

ME70151V1-000U-G99

245746 ME70151V1-000U-G99 ME70151V1-000U-G99 Sunon fan series ME. DC fans with a vapo bearing system and 12V. These fans have a frame as well as an impeller made of thermoplastic PBT (UL94V-0) and a 4-pole brushless motor (MagLev). They are suitable for various applications and have a long service life. We offer the type ME70151V1-000U-G99 and ME70151V3-000U-A99 of this Sunon series. rated voltage: 12V DC dimensions: 70x70x15mm

Specifications

manufacturer
Manufacturer's name ME70151V1-000U-G99
Current [A] 0,113
Dimensions 70x70x15
Nominal voltage [V] 12
Electric power [W] 1,36
Noise [dBA] 31,5
Number of revolutions [U/min] 3300
Data Sheet

Unit price

3,69 €

Stock: 850
Next incoming goods:
CW 03/2025
100 units


Further delivery:
CW 18/2025
