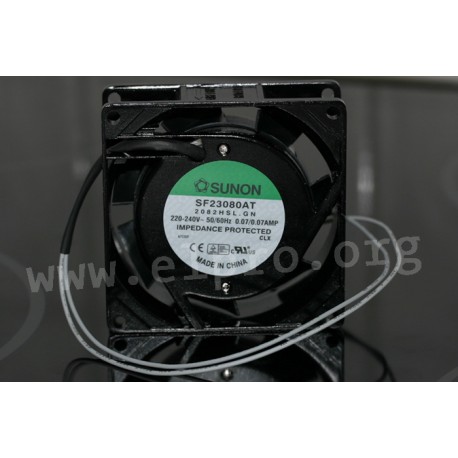

LFA 220V G

Sunon fan series MA/SF/CF

AC fans with either a 4 pole brushless motor (MA_/CF_) or a shaded-pole motor (LFA_) are available. These fans have impedance protection and come equipped with either sleeve bearings (LFA 220V G), ball bearings (LFA 220V K) or vapo bearing systems (MA_/CF_). The impellers of these fans are made from thermoplastic PBT(UL94V-0). Connection to the power supply is through wires, while their operating temperature ranges between -10°C to +70°C. Their dimensions measure at 80x80x25mm and they operate on rated voltage of 230V AC.

LFA 220V G

LFA 220V G

17545 LFA 220V G SF23080AT-2082HSL.GN SF23080AT-2082HSL.GN Sunon fan series MA/SF/CF. AC fans with either a 4 pole brushless motor (MA_/CF_) or a shaded-pole motor (LFA_) are available. These fans have impedance protection and come equipped with either sleeve bearings (LFA 220V G), ball bearings (LFA 220V K) or vapo bearing systems (MA_/CF_). The impellers of these fans are made from thermoplastic PBT(UL94V-0). Connection to the power supply is through wires, while their operating temperature ranges between -10°C to +70°C. Their dimensions measure at 80x80x25mm and they operate on rated voltage of 230V AC.

Specifications

manufacturer
Manufacturer's name SF23080AT-20...
Current [A] 0,07
Voltage 230V AC

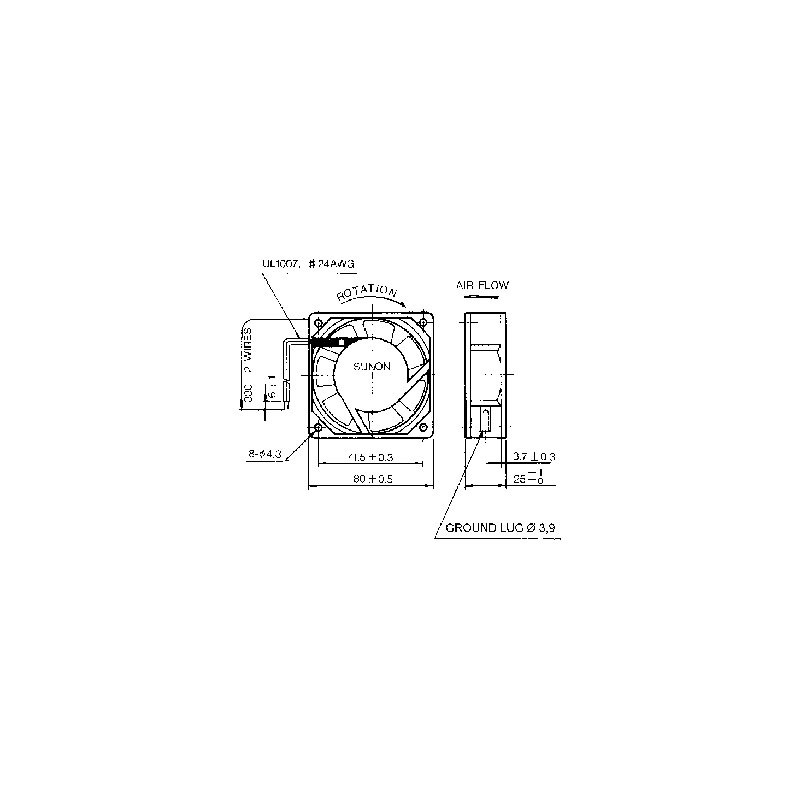

Dimensions 80x80x25mm
Nominal voltage [V] 230V AC
Electric power [W] 14
Noise [dBA] 29
Air performance [m3/h] 28,88
Number of revolutions [U/min] 2300
Data Sheet

Unit price

7,49 €

Stock: 3190
Further delivery:
CW 14/2025
