> Components/accessories>Fans>24V direct current>Sunon fans, 120x120x38mm, 24V DC, EEC/MEC/PMD/LFF series>MEC 0382 V2-0000-A99

Manufacturers

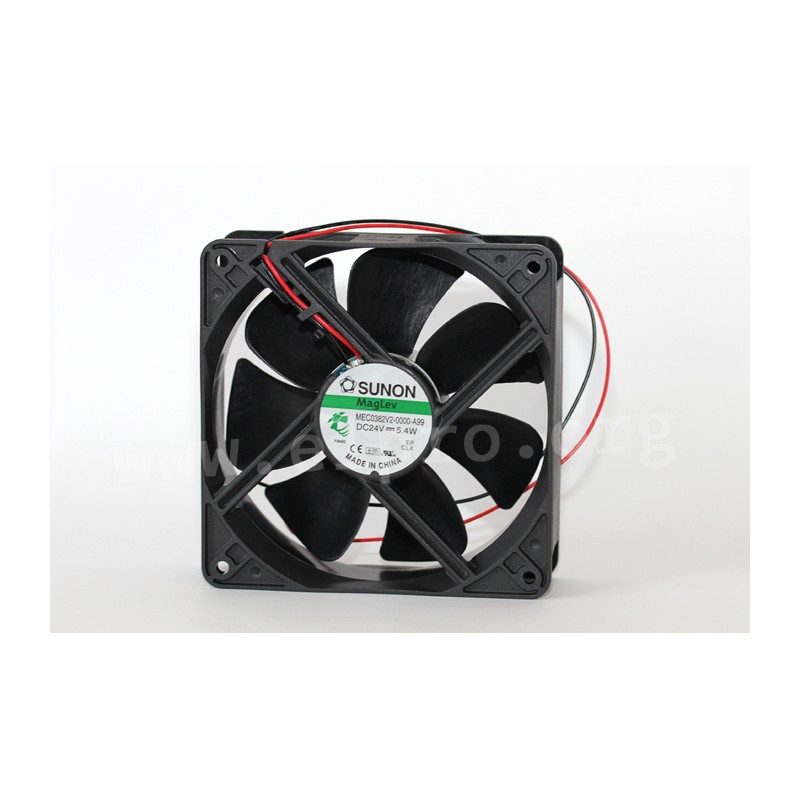

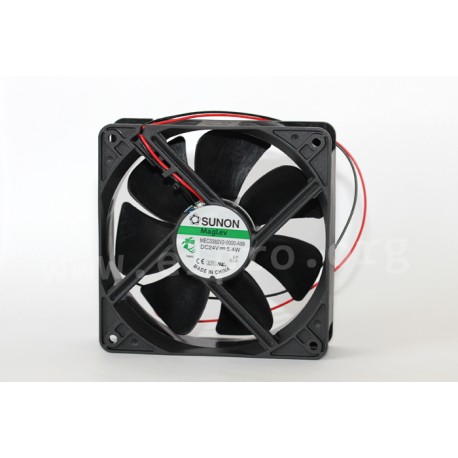

MEC 0382 V2-0000-A99

Sunon fan series EEC/MEC/PMD/LFF

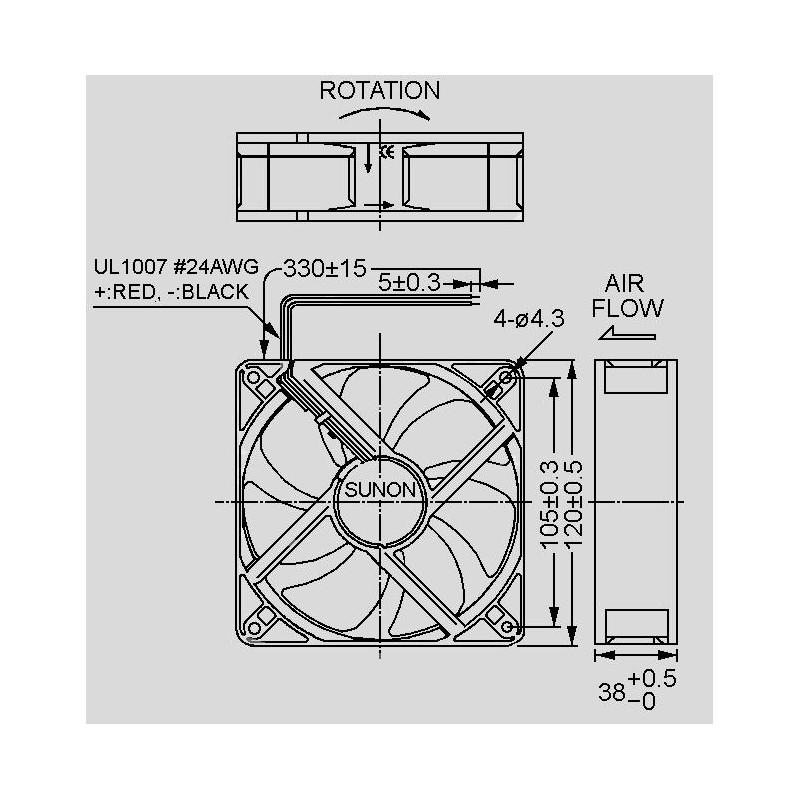

4-pole DC fans with a vapo bearing system (ME_V_), a ball (PMD_) resp. two ball bearing system (EE_B_) or a sleeve bearing system (LFF_). These fans feature a Magnetic Levitation System that ensures smooth operation. Connection is made easy through the use of stranded wires AWG24. The impellers and frames are constructed from thermoplastic PBT material which has been rated UL94V-0 for safety purposes. With dimensions of 120x120x38mm, these fans have been designed to fit into most spaces without issue while still providing excellent performance at their rated voltage of 24V DC power supply input.

MEC 0382 V2-0000-A99

MEC 0382 V2-0000-A99

34127 MEC 0382 V2-0000-A99 MEC0382V2-000U-A99 MEC0382V2-000U-A99 Sunon fan series EEC/MEC/PMD/LFF. 4-pole DC fans with a vapo bearing system (ME_V_), a ball (PMD_) resp. two ball bearing system (EE_B_) or a sleeve bearing system (LFF_). These fans feature a Magnetic Levitation System that ensures smooth operation. Connection is made easy through the use of stranded wires AWG24. The impellers and frames are constructed from thermoplastic PBT material which has been rated UL94V-0 for safety purposes. With dimensions of 120x120x38mm, these fans have been designed to fit into most spaces without issue while still providing excellent performance at their rated voltage of 24V DC power supply input.

Specifications

manufacturer
Manufacturer's name MEC0382V2-000U-A99
Current [A] 0,23
Voltage 24V DC
Dimensions 120x120x38mm
Electric power [W] 5,5
Noise [dBA] 44
Air performance [m3/h] 197,04
Number of revolutions [U/min] 2600
Data Sheet

Unit price

6,99 €

Stock: 0
Next incoming goods:
CW 02/2025
3476 units

Further delivery:
CW 13/2025
