EEC 0251 B1-0000-A99

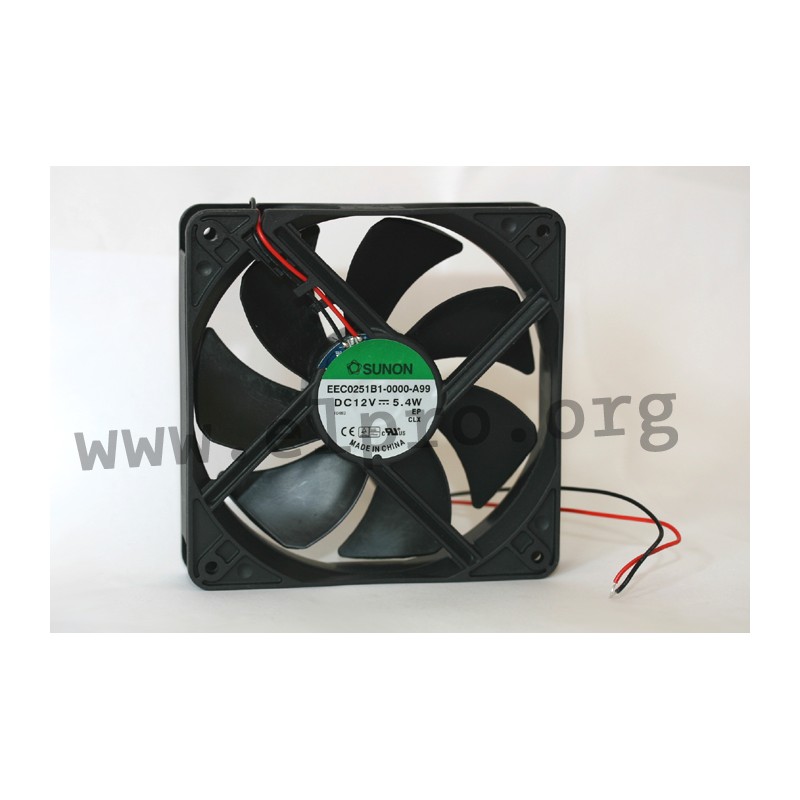

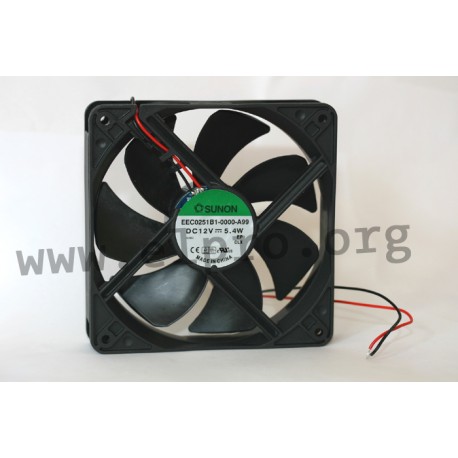

Sunon fan 12V DC series EEC/MEC/HAC

4-pole DC fans with electronically commutated motors provide more reliable and efficient cooling than conventional fans. These fans are available in variants with vapour bearings (MEC_V_), plain bearings (HAC_) or in a 2-fold ball bearing design (EEC_B_). In addition, the Magnetic Levitation System enables silent operation with higher performance. They have connection wires of AWG24 (EEC_/MEC_) or AWG26 (HAC_). The frame and the impeller of these fans are made of the filled thermoplastic PBT, which makes them more resistant to high temperatures and chemical influences.

EEC 0251 B1-0000-A99

EEC 0251 B1-0000-A99

34124 EEC 0251 B1-0000-A99 EEC0251B1-000U-A99 EEC0251B1-000U-A99 Sunon fan 12V DC series EEC/MEC/HAC. 4-pole DC fans with electronically commutated motors provide more reliable and efficient cooling than conventional fans. These fans are available in variants with vapour bearings (MEC_V_), plain bearings (HAC_) or in a 2-fold ball bearing design (EEC_B_). In addition, the Magnetic Levitation System enables silent operation with higher performance. They have connection wires of AWG24 (EEC_/MEC_) or AWG26 (HAC_). The frame and the impeller of these fans are made of the filled thermoplastic PBT, which makes them more resistant to high temperatures and chemical influences.

Specifications

manufacturer
Manufacturer's name EEC0251B1-000U-A99
Current [A] 0,445
Voltage 12V DC

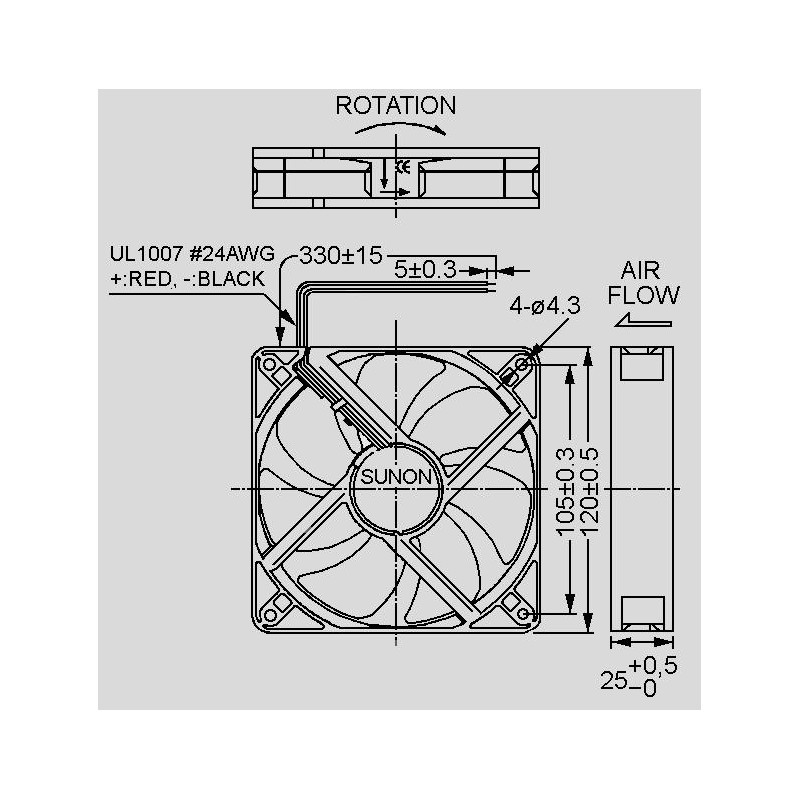

Dimensions 120x120x25mm
Electric power [W] 5,3
Noise [dBA] 44,5
Air performance [m3/h] 183,79
Number of revolutions [U/min] 3100
Data Sheet

Unit price

6,89 €

Stock: 4019
Further delivery:
CW 18/2025
