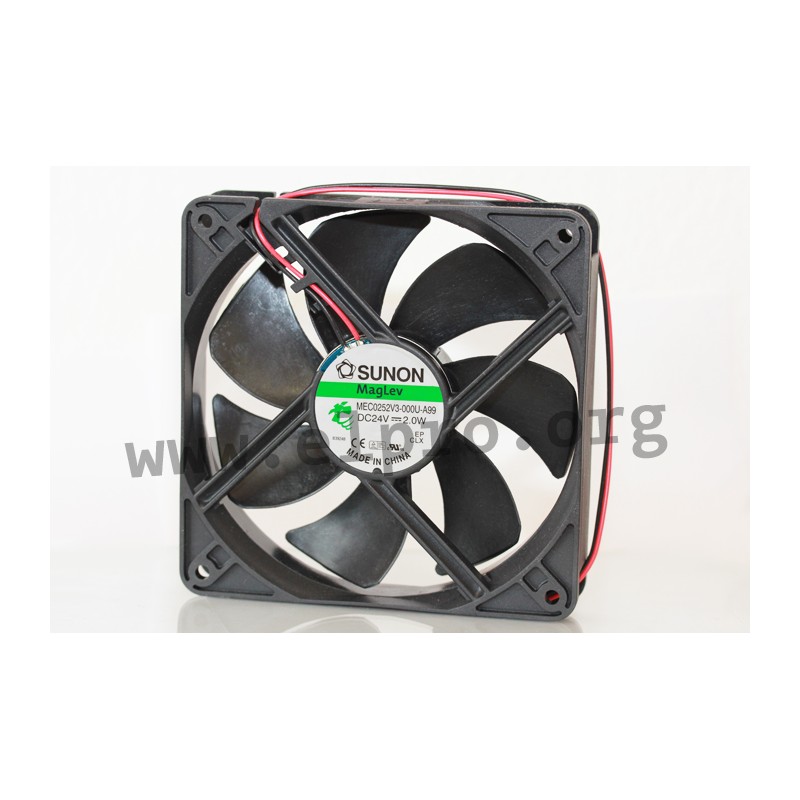

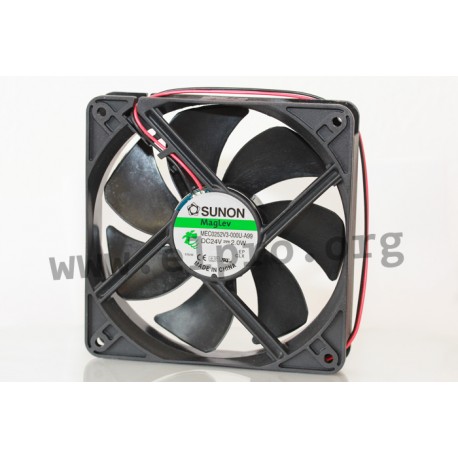

MEC 0252 V3-0000-A99

Sunon fan series EEC and MEC

Four-pole DC fans with a vapo bearing system (MEC_) or a two ball bearing system (EEC_) are available for purchase. These fans feature an innovative Magnetic Levitation System and can be connected using stranded wires UL1007 AWG24. The impellers and frames of these fans are made from filled thermoplast PBT, which has been rated as UL94V-0 compliant material. With dimensions measuring 120x120x25mm, they have been designed to fit easily into most applications requiring cooling solutions that operate on 24V DC power supply systems.

MEC 0252 V3-0000-A99

MEC 0252 V3-0000-A99

34118 MEC 0252 V3-0000-A99 MEC0252V3-000U-A99 MEC0252V3-000U-A99 Sunon fan series EEC and MEC. Four-pole DC fans with a vapo bearing system (MEC_) or a two ball bearing system (EEC_) are available for purchase. These fans feature an innovative Magnetic Levitation System and can be connected using stranded wires UL1007 AWG24. The impellers and frames of these fans are made from filled thermoplast PBT, which has been rated as UL94V-0 compliant material. With dimensions measuring 120x120x25mm, they have been designed to fit easily into most applications requiring cooling solutions that operate on 24V DC power supply systems.

Specifications

manufacturer
Manufacturer's name MEC0252V3-000U-A99
Current [A] 0,092
Voltage 24V DC

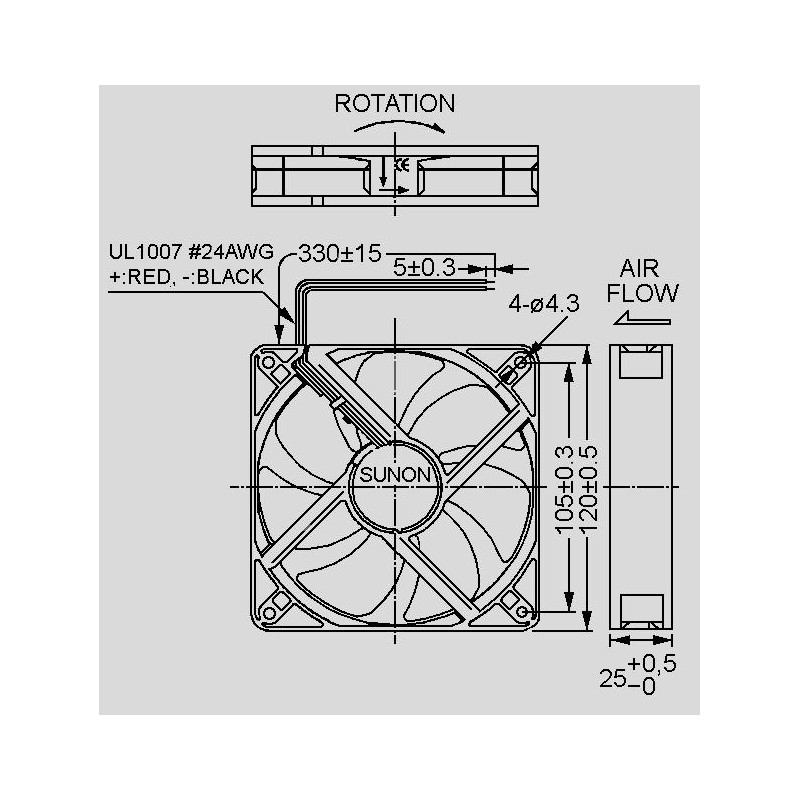

Dimensions 120x120x25mm
Electric power [W] 2,2
Noise [dBA] 34
Air performance [m3/h] 127,39
Number of revolutions [U/min] 2200
Data Sheet

Unit price

6,09 €

Stock: 2072
Further delivery:
CW 18/2025
