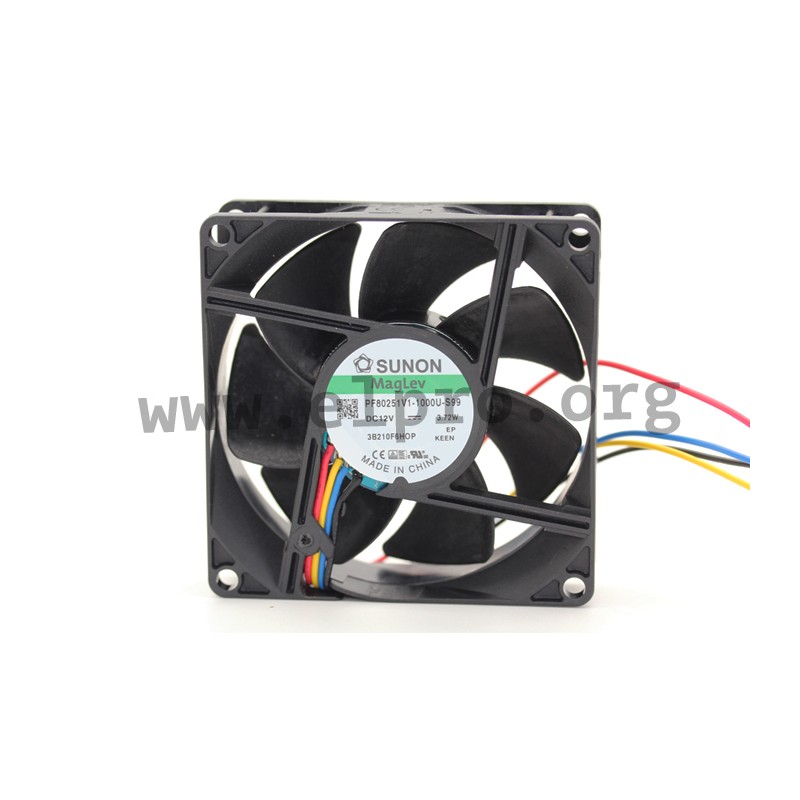

PF80251V1-1000U-S99

Sunon fan 12V DC series EE/EF/ME/MF/HA/GF/PF

4-pole DC fans with a ball bearing (E_B_), a sleeve bearing (E_S_), a vapo bearing (M_V_/HA 80251_/PF_) or a two ball bearing (GF 80251_) system. These fans have frame and impeller made of thermoplastic PBT (UL94V-0). The dielectric strength is 500V AC for 1min, while the insulation resistance at 500V DC is rated at 10MΩ. With an operating temperature range of -10 to +70°C, these fans come in a compact size of 80x80x25mm and run on a rated voltage of 12V DC.

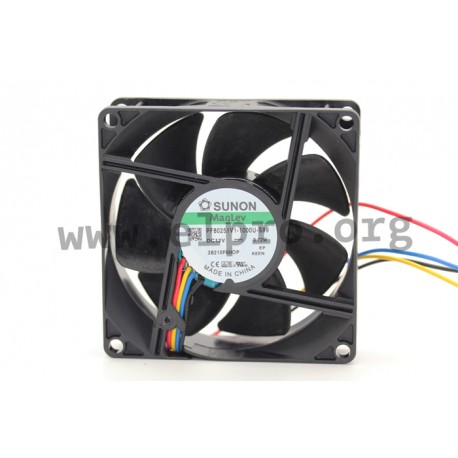

D08058970G-01, Sunon fans, 80x80x25mm, 12V DC, EE/EF/MF/HA/GF/PF series

PF80251V1-1000U-S99

236548 PF80251V1-1000U-S99 PF80251V1-1000U-S99 Sunon fan 12V DC series EE/EF/ME/MF/HA/GF/PF. 4-pole DC fans with a ball bearing (E_B_), a sleeve bearing (E_S_), a vapo bearing (M_V_/HA 80251_/PF_) or a two ball bearing (GF 80251_) system. These fans have frame and impeller made of thermoplastic PBT (UL94V-0). The dielectric strength is 500V AC for 1min, while the insulation resistance at 500V DC is rated at 10MΩ. With an operating temperature range of -10 to +70°C, these fans come in a compact size of 80x80x25mm and run on a rated voltage of 12V DC.

Specifications

manufacturer
Manufacturer's name PF80251V1-10...
Current [A] 0,31
Dimensions 80x80x25mm
Nominal voltage [V] 12
Electric power [W] 3,72
Noise [dBA] 44,7
Air performance [m3/h] 101,91
Number of revolutions [U/min] 4800
Data Sheet

Unit price

7,09 €

Stock: 0
Next incoming goods:
CW 06/2025
1495 units

Further delivery:
CW 14/2025
