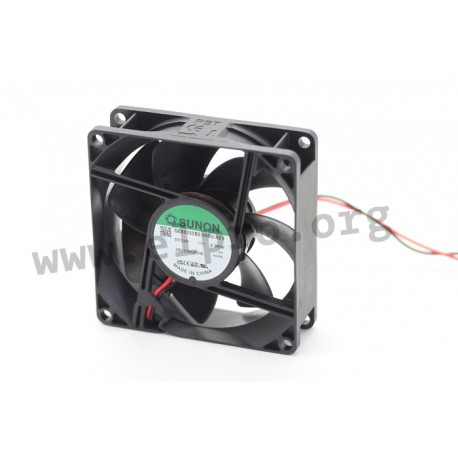

GE 80252 B2-000U-AE9

Sunon fan 24V DC series EE/ME/MF/GE

Four-pole DC fans with a 4-pole brushless DC motor and a ball bearing (EE_B), a sleeve bearing (EE_S), a vapo bearing (ME_/MF_) or a two ball bearing (GE 80252_) system. These fans are partly designed as one-phase single coil DC brushless motors (EF_/MF_) and have an impeller and frame made of thermoplastic PBT (UL94V-0). The connection is through wires UL1007 AWG24 that are stripped and tinned. They have insulation class A with dimensions of 80x80x25mm. Rated voltage for these fans is at 24VDC.

GE80252B2-000U-AE9, Sunon fans, 80x80x25mm, 24V DC, EE/EF/MF/GE series

GE 80252 B2-000U-AE9

45202 GE 80252 B2-000U-AE9 GE80252B2-000U-AE9 GE80252B2-000U-AE9 Sunon fan 24V DC series EE/ME/MF/GE. Four-pole DC fans with a 4-pole brushless DC motor and a ball bearing (EE_B), a sleeve bearing (EE_S), a vapo bearing (ME_/MF_) or a two ball bearing (GE 80252_) system. These fans are partly designed as one-phase single coil DC brushless motors (EF_/MF_) and have an impeller and frame made of thermoplastic PBT (UL94V-0). The connection is through wires UL1007 AWG24 that are stripped and tinned. They have insulation class A with dimensions of 80x80x25mm. Rated voltage for these fans is at 24VDC.

Specifications

manufacturer
Manufacturer's name GE80252B2-000U-AE9
Current [A] 0,166
Voltage 24V DC

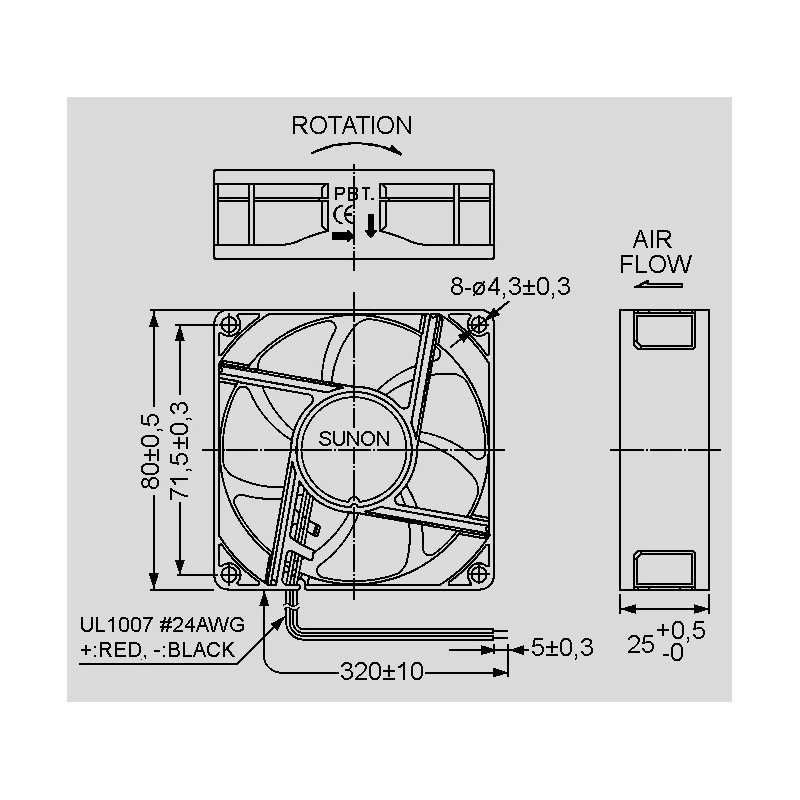

Dimensions 80x80x25mm
Electric power [W] 3,99
Noise [dBA] 46
Air performance [m3/h] 96,82
Number of revolutions [U/min] 4500
Data Sheet

Unit price

17,19 €

Stock: 745
Further delivery:
CW 18/2025
