GE 92252 B2-000U-AE9

Sunon fan 24V DC series EE/EF/ME/MF/GE/PF

4-pole DC fans with a ball bearing (E_B), a vapo bearing (M_V/PF_), a sleeve bearing (E_S) or a two ball bearing (GE_) system. The connection is made through wires AWG24, UL1007 which are stripped and tinned for easy installation. Both the frame and impeller of these fans are constructed from thermoplastic PBT material that meets UL94V-0 standards for safety. They have an insulation class rating of A, making them suitable for use in a variety of applications where high reliability is required. With dimensions measuring 92x92x25mm and rated voltage at 24V, these DC fans provide efficient cooling solutions while maintaining low noise levels during operation.

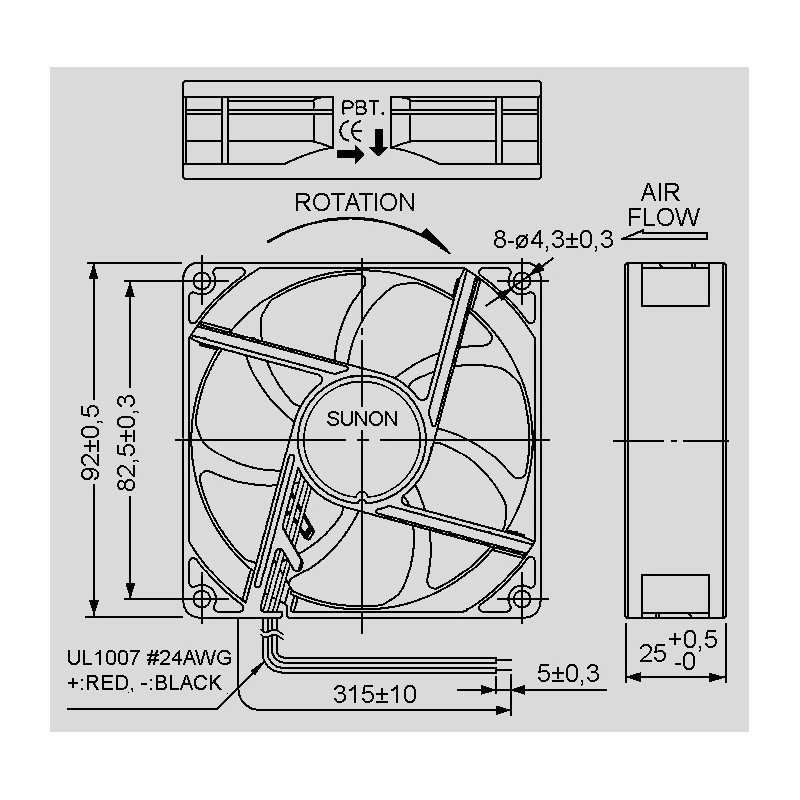

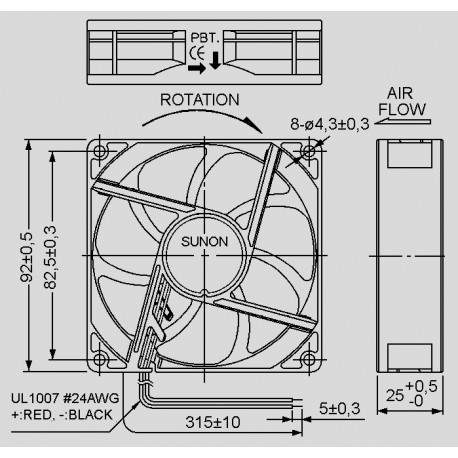

dimensions GE 92252_

GE 92252 B2-000U-AE9

45196 GE 92252 B2-000U-AE9 GE92252B2-000U-AE9 GE92252B2-000U-AE9 Sunon fan 24V DC series EE/EF/ME/MF/GE/PF. 4-pole DC fans with a ball bearing (E_B), a vapo bearing (M_V/PF_), a sleeve bearing (E_S) or a two ball bearing (GE_) system. The connection is made through wires AWG24, UL1007 which are stripped and tinned for easy installation. Both the frame and impeller of these fans are constructed from thermoplastic PBT material that meets UL94V-0 standards for safety. They have an insulation class rating of A, making them suitable for use in a variety of applications where high reliability is required. With dimensions measuring 92x92x25mm and rated voltage at 24V, these DC fans provide efficient cooling solutions while maintaining low noise levels during operation.

Specifications

manufacturer
Manufacturer's name GE92252B2-000U-AE9
Current [A] 0,18
Voltage 24V DC
Dimensions 92x92x25mm
Electric power [W] 4,32
Noise [dBA] 45
Air performance [m3/h] 118,9
Number of revolutions [U/min] 4200
Data Sheet

Unit price

19,59 €

Stock: 185
Further delivery:
CW 18/2025
