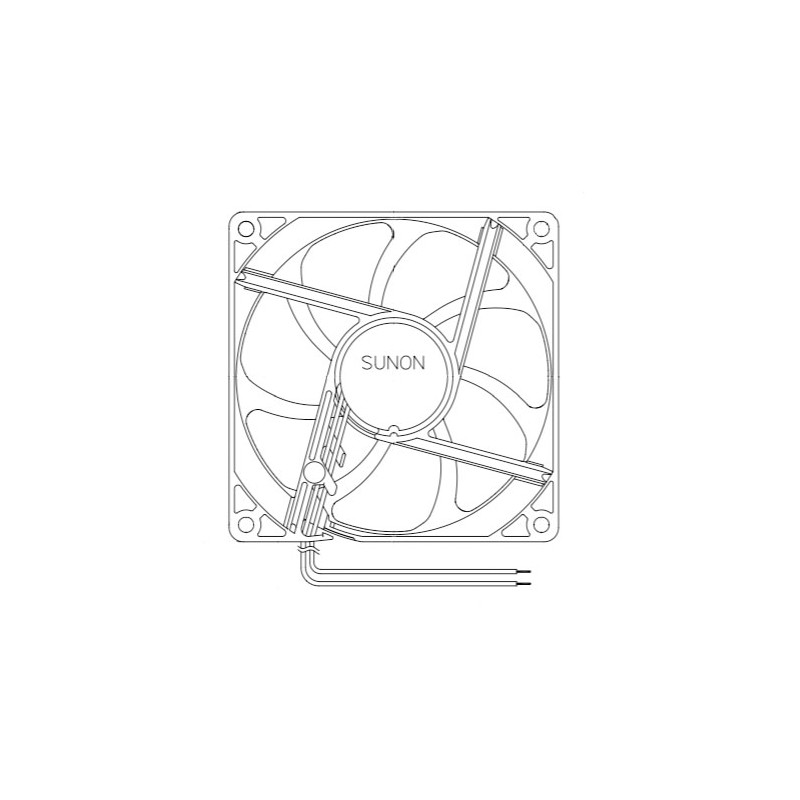

PF92252V3-1000U-A99

Sunon fan 24V DC series EE/EF/ME/MF/GE/PF

4-pole DC fans with a ball bearing (E_B), a vapo bearing (M_V/PF_), a sleeve bearing (E_S) or a two ball bearing (GE_) system. The connection is made through wires AWG24, UL1007 which are stripped and tinned for easy installation. Both the frame and impeller of these fans are constructed from thermoplastic PBT material that meets UL94V-0 standards for safety. They have an insulation class rating of A, making them suitable for use in a variety of applications where high reliability is required. With dimensions measuring 92x92x25mm and rated voltage at 24V, these DC fans provide efficient cooling solutions while maintaining low noise levels during operation.

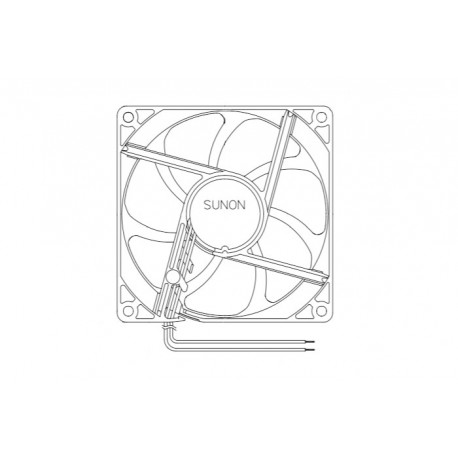

, Sunon fans, 92x92x25mm, 24V DC, EE/EF/MF/GE/PF series

PF92252V3-1000U-A99

236525 PF92252V3-1000U-A99 PF92252V3-1000U-A99 Sunon fan 24V DC series EE/EF/ME/MF/GE/PF. 4-pole DC fans with a ball bearing (E_B), a vapo bearing (M_V/PF_), a sleeve bearing (E_S) or a two ball bearing (GE_) system. The connection is made through wires AWG24, UL1007 which are stripped and tinned for easy installation. Both the frame and impeller of these fans are constructed from thermoplastic PBT material that meets UL94V-0 standards for safety. They have an insulation class rating of A, making them suitable for use in a variety of applications where high reliability is required. With dimensions measuring 92x92x25mm and rated voltage at 24V, these DC fans provide efficient cooling solutions while maintaining low noise levels during operation.

Specifications

manufacturer
Manufacturer's name PF92252V3-10...
Current [A] 0,126
Dimensions 92x92x25
Nominal voltage [V] 24
Electric power [W] 3,03
Noise [dBA] 41,6
Air performance [m3/h] 110,4
Number of revolutions [U/min] 3900
Data Sheet

Unit price

5,89 €

Stock: 2734
Further delivery:
CW 18/2025
