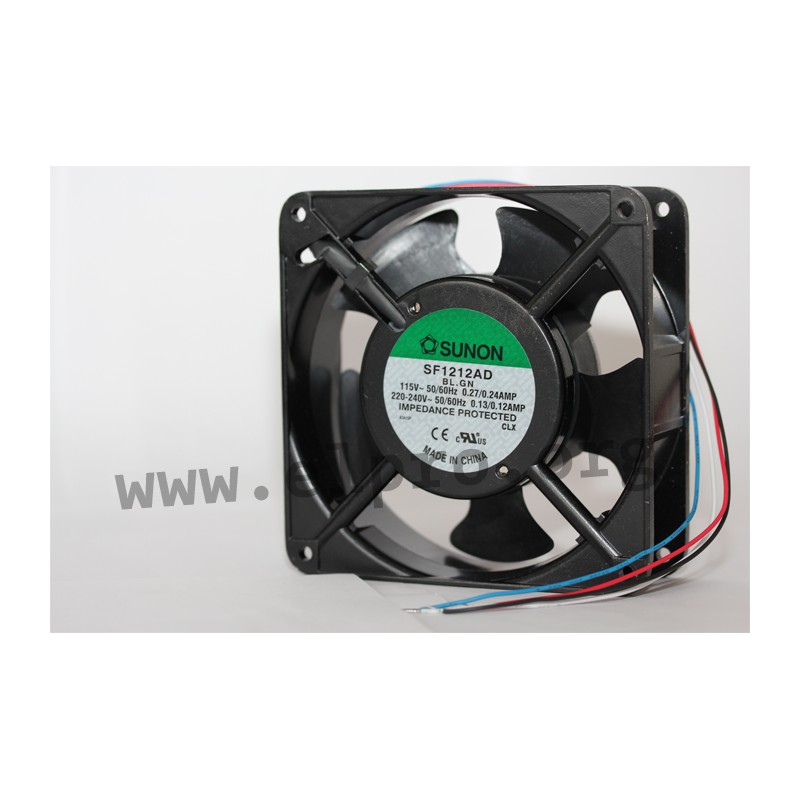

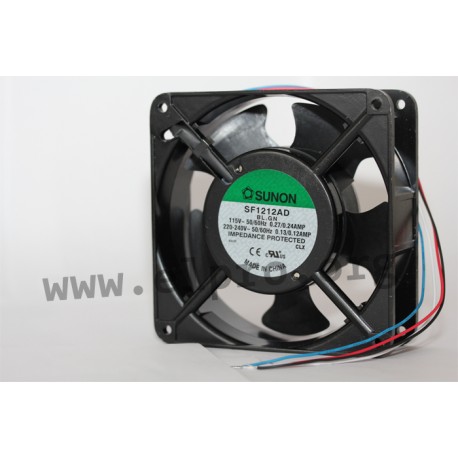

SF 1212 AD-BL

Sunon fan 230V and 115V AC series DP/A/SF/SP

AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

SF 1212 AD-BL

SF 1212 AD-BL

29656 SF 1212 AD-BL SF1212AD-BL SF1212AD-BL Sunon fan 230V and 115V AC series DP/A/SF/SP. AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

Specifications

manufacturer
Manufacturer's name SF1212AD-BL
Current [A] 0,13
Bearing ball bearing
Voltage 230/115V AC
Dimensions 120x120x38mm
Nominal voltage [V] 115/230V AC
Electric power [W] 19,5
Noise [dBA] 44
Air performance [m3/h] 161,37
Number of revolutions [U/min] 3000
Data Sheet

Unit price

11,19 €

Stock: 1.465
Further delivery:
CW 38/2025
