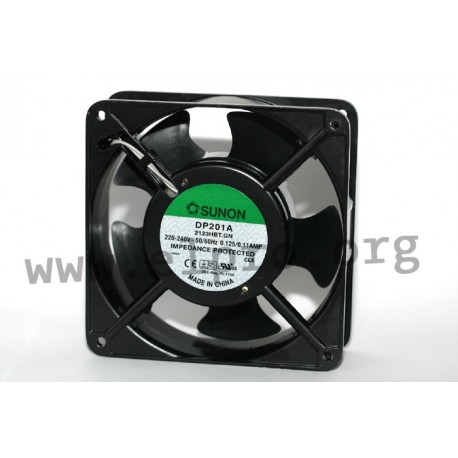

DP 201A 2123HBT

Sunon fan 230V and 115V AC series DP/A/SF/SP

AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

DP 201A 2123HBT

DP 201A 2123HBT

29651 DP 201A 2123HBT DP201A-2123HBT.GN DP201A-2123HBT.GN Sunon fan 230V and 115V AC series DP/A/SF/SP. AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

Specifications

manufacturer
Manufacturer's name DP201A-2123HBT.GN
Current [A] 0,125
Bearing ball bearing
Dimensions 120x120x38mm
Nominal voltage [V] 230 AC
Electric power [W] 20
Noise [dBA] 45
Air performance [m3/h] 147,78
Number of revolutions [U/min] 2750
Data Sheet

Unit price

8,69 €

Stock: 2197
Further delivery:
CW 14/2025
