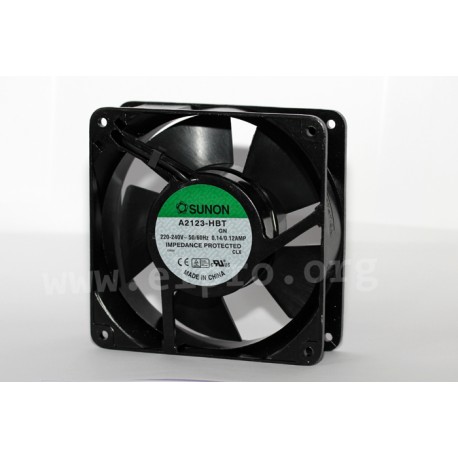

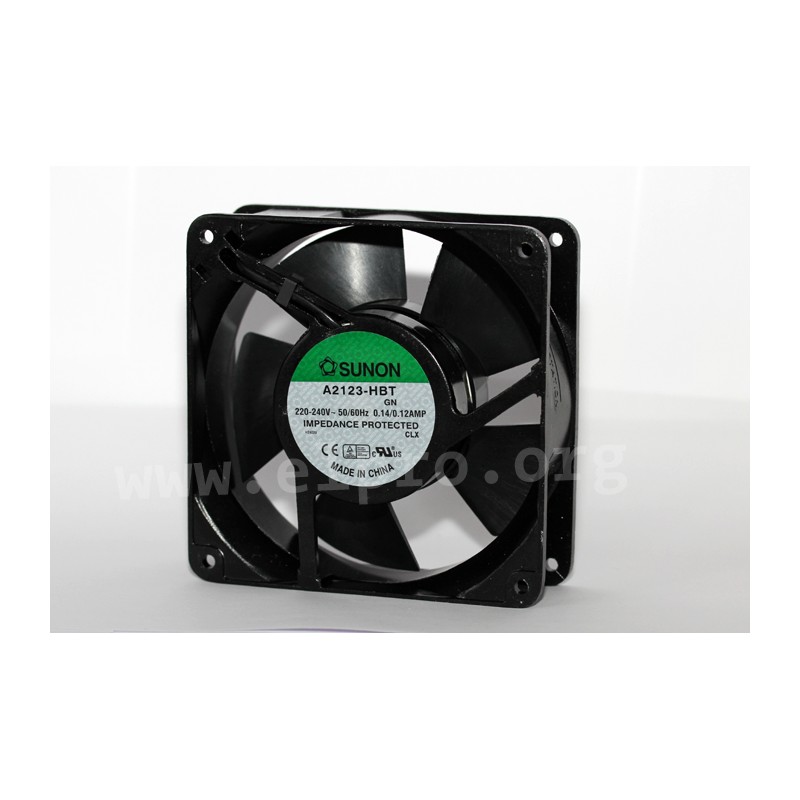

A 2123 HBT

Sunon fan 230V and 115V AC series DP/A/SF/SP

AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

A 2123 HBT

A 2123 HBT

29650 A 2123 HBT A2123-HBT.GN A2123-HBT.GN Sunon fan 230V and 115V AC series DP/A/SF/SP. AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

Specifications

manufacturer
Manufacturer's name A2123-HBT.GN
Current [A] 0,14
Bearing ball bearing
Dimensions 120x120x38mm
Nominal voltage [V] 230V AC
Electric power [W] 23
Noise [dBA] 45
Air performance [m3/h] 164,76
Number of revolutions [U/min] 2700
Data Sheet

Unit price

12,19 €

Stock: 4196
Further delivery:
CW 18/2025
