DP 200A 2123XSL

Sunon fan 230V and 115V AC series DP/A/SF/SP

AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

DP200A-2123XSL.GN, Sunon fans, 120x120x38mm, 230/115V AC, DP/A/SF/SP series

DP 200A 2123XSL

29642 DP 200A 2123XSL DP200A-2123XSL.GN DP200A-2123XSL.GN Sunon fan 230V and 115V AC series DP/A/SF/SP. AC fans with a diecast aluminium frame and an impedance protected shaded-pole motor. These fans feature impellers made of thermoplastic PBT (UL94V-0) and can operate in temperatures ranging from -10 to +70°C. With dimensions of 120x120x38mm, they have a rated voltage of 115V AC (SP_) resp. 15/230V AC (SF_)

Specifications

manufacturer
Manufacturer's name DP200A-2123XSL.GN
Current [A] 0,14
Bearing sleeve bearing

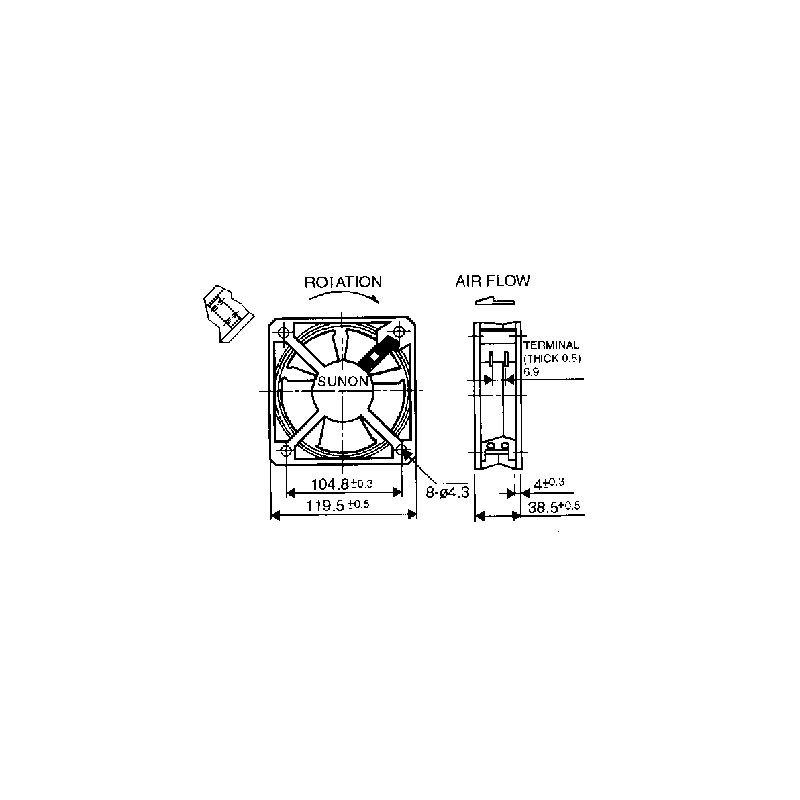

Dimensions 120x120x38mm
Nominal voltage [V] 230V AC
Electric power [W] 22
Noise [dBA] 44
Air performance [m3/h] 161,37
Number of revolutions [U/min] 2700
Data Sheet

Unit price

8,19 €

Stock: 4166
Further delivery:
CW 18/2025
