CF4113LBT-000U-ABD

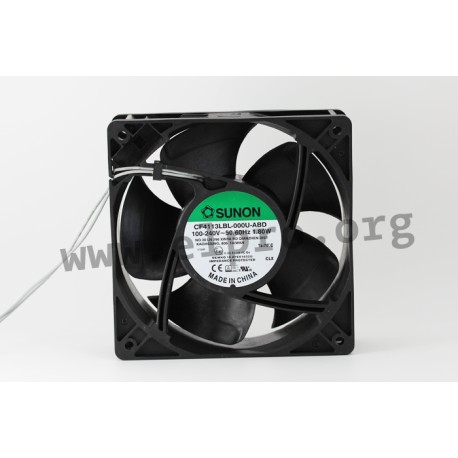

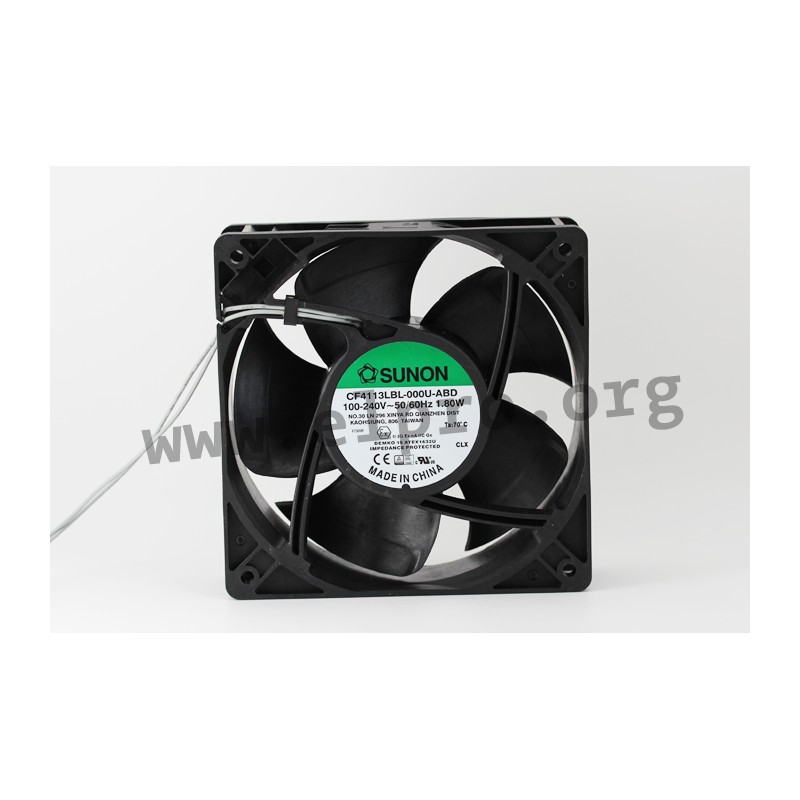

fan 230/115V AC, series CF by Sunon

AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0) material, which ensures durability and reliability. These AC axial fans come equipped with terminal connectors for easy installation. These 120x120x38mm dimensioned AC axial fans have ball bearing systems that ensure smooth operation even in harsh environments. They offer two different protection classes: CF4113_AA9 has IP21 protection class while CF4113_AB9 offers IP55 protection class against dust and water ingress. Rated voltage for these AC axial fans is 110/230VAC, but they can operate within the range of 90 to 265VAC without any issues. With dielectric strength at 65% humidity, measuring up to 1800VAC for one minute, insulation resistance at 500 VDC exceeding >10MΩ and operating temperature ranging from -25°Cto +70°C; these fan sare highly efficient and reliable products suitable for various applications across industries.

E12000700G-00, Sunon fans, 120x120x38mm, 230/115V AC, with terminal connector, CF series

CF4113LBT-000U-ABD

246247 CF4113LBT-000U-ABD E12000700G-00 E12000700G-00 fan 230/115V AC, series CF by Sunon. AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0) material, which ensures durability and reliability. These AC axial fans come equipped with terminal connectors for easy installation. These 120x120x38mm dimensioned AC axial fans have ball bearing systems that ensure smooth operation even in harsh environments. They offer two different protection classes: CF4113_AA9 has IP21 protection class while CF4113_AB9 offers IP55 protection class against dust and water ingress. Rated voltage for these AC axial fans is 110/230VAC, but they can operate within the range of 90 to 265VAC without any issues. With dielectric strength at 65% humidity, measuring up to 1800VAC for one minute, insulation resistance at 500 VDC exceeding >10MΩ and operating temperature ranging from -25°Cto +70°C; these fan sare highly efficient and reliable products suitable for various applications across industries.

Specifications

manufacturer
Manufacturer's name E12000700G-00
Current [A] 0,037
Electric power [W] 1,8
Noise [dBA] 31,4
Air performance [m3/h] 109,22
Number of revolutions [U/min] 2000

Unit price

26,29 €

Stock: 0
Further delivery:
CW 14/2025
