CF 4113 HBL-000U-A99

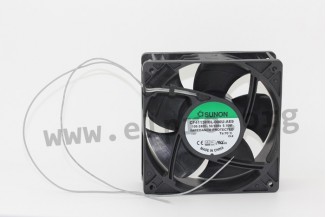

fan 230/115V AC, series CF by Sunon

AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are constructed using thermoplastic PBT (UL94V-0). They come equipped with UL 3266, 24AWG lead wire. These AC axial fans have dimensions of 120x120x38mm and utilize ball bearing systems for optimal performance. Depending on the specific model chosen, they offer varying levels of protection class including IP21 (CF4113_AA9), IP55 (CF4113_AB9) and even IP68 in some cases (CF4113_AE9). Additionally, certain models such as CF4113_ABD also possess ATEX certification for added safety measures. The rated voltage for most models is either 110 or 230V AC; however, CF4113_ABD has a slightly different rating at 110/240V AC. Operating voltages range from between 90 to 265V AC depending on the model selected. These high-quality axial fans boast impressive dielectric strength at up to 1800VAC when exposed to relative humidity levels of around 65%. Furthermore, the insulation resistance value exceeds 10MΩ when tested under 500 VDC conditions.These robustly designed fans can operate within temperature ranges spanning from -25°C to +70°C.


CF 4113 HBL-000U-A99 A12009640G-00

CF 4113 HBL-000U-A99

111091 CF 4113 HBL-000U-A99 A12009640G-00 A12009640G-00 fan 230/115V AC, series CF by Sunon. AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are constructed using thermoplastic PBT (UL94V-0). They come equipped with UL 3266, 24AWG lead wire. These AC axial fans have dimensions of 120x120x38mm and utilize ball bearing systems for optimal performance. Depending on the specific model chosen, they offer varying levels of protection class including IP21 (CF4113_AA9), IP55 (CF4113_AB9) and even IP68 in some cases (CF4113_AE9). Additionally, certain models such as CF4113_ABD also possess ATEX certification for added safety measures. The rated voltage for most models is either 110 or 230V AC; however, CF4113_ABD has a slightly different rating at 110/240V AC. Operating voltages range from between 90 to 265V AC depending on the model selected. These high-quality axial fans boast impressive dielectric strength at up to 1800VAC when exposed to relative humidity levels of around 65%. Furthermore, the insulation resistance value exceeds 10MΩ when tested under 500 VDC conditions.These robustly designed fans can operate within temperature ranges spanning from -25°C to +70°C.

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name A12009640G-00
Current [A] 0,081
Electric power [W] 5,1
Noise [dBA] 44,9
Air performance [m3/h] 185,14
Number of revolutions [U/min] 3500
Data Sheet

Unit price

15,79 €

Stock: 56
