> Components/accessories>Fans>230/115V alternating voltage>Sunon fans, 120x120x38mm, 230/115V AC, with terminal connector, CF series>CF 4113 MBT-000U-AB9

Manufacturers

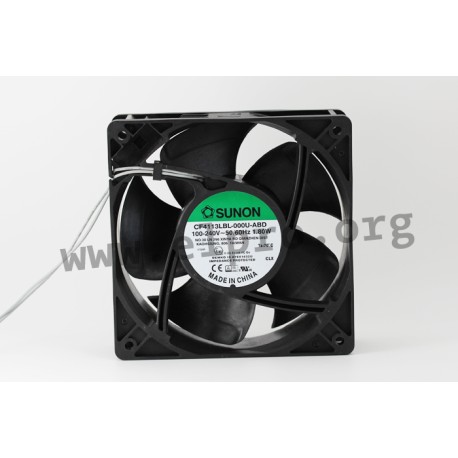

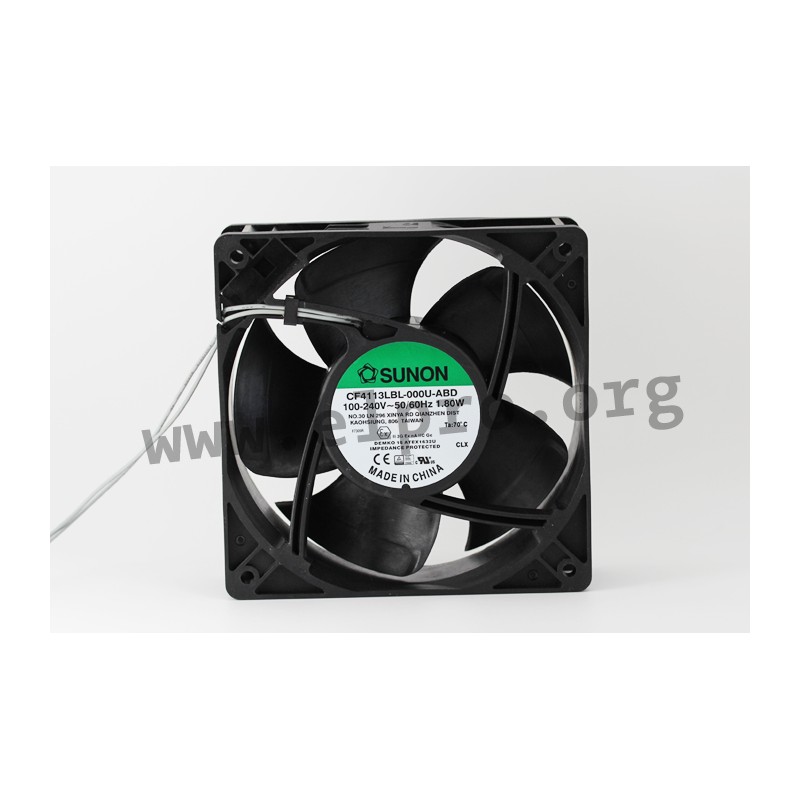

CF 4113 MBT-000U-AB9

fan 230/115V AC, series CF by Sunon

AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0) material, which ensures durability and reliability. These AC axial fans come equipped with terminal connectors for easy installation. These 120x120x38mm dimensioned AC axial fans have ball bearing systems that ensure smooth operation even in harsh environments. They offer two different protection classes: CF4113_AA9 has IP21 protection class while CF4113_AB9 offers IP55 protection class against dust and water ingress. Rated voltage for these AC axial fans is 110/230VAC, but they can operate within the range of 90 to 265VAC without any issues. With dielectric strength at 65% humidity, measuring up to 1800VAC for one minute, insulation resistance at 500 VDC exceeding >10MΩ and operating temperature ranging from -25°Cto +70°C; these fan sare highly efficient and reliable products suitable for various applications across industries.

A12009740G-00, Sunon fans, 120x120x38mm, 230/115V AC, with terminal connector, CF series

CF 4113 MBT-000U-AB9

111090 CF 4113 MBT-000U-AB9 A12009740G-00 A12009740G-00 fan 230/115V AC, series CF by Sunon. AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0) material, which ensures durability and reliability. These AC axial fans come equipped with terminal connectors for easy installation. These 120x120x38mm dimensioned AC axial fans have ball bearing systems that ensure smooth operation even in harsh environments. They offer two different protection classes: CF4113_AA9 has IP21 protection class while CF4113_AB9 offers IP55 protection class against dust and water ingress. Rated voltage for these AC axial fans is 110/230VAC, but they can operate within the range of 90 to 265VAC without any issues. With dielectric strength at 65% humidity, measuring up to 1800VAC for one minute, insulation resistance at 500 VDC exceeding >10MΩ and operating temperature ranging from -25°Cto +70°C; these fan sare highly efficient and reliable products suitable for various applications across industries.

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name A12009740G-00
Current [A] 0,061
Electric power [W] 3,4
Noise [dBA] FEHLER
Air performance [m3/h] FEHLER
Number of revolutions [U/min] FEHLER
Data Sheet

Unit price

25,09 €

Stock: 60
