CF 2207 LBL-000U-HB9

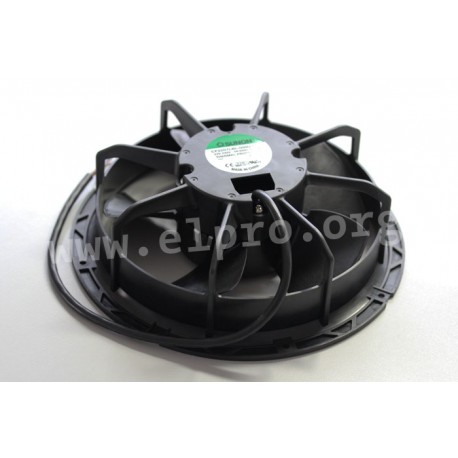

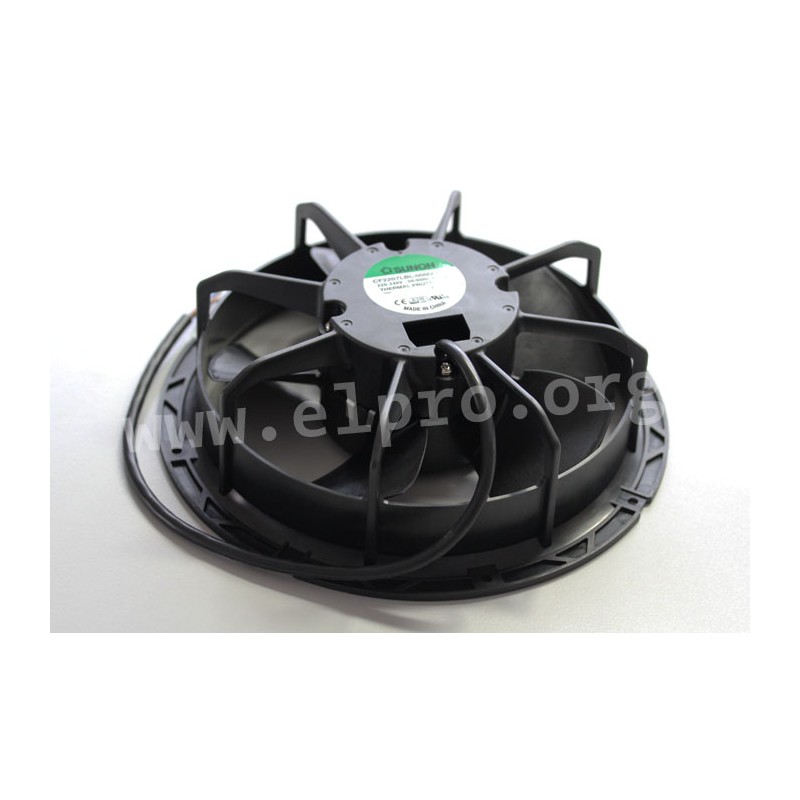

AC axial fan 230V AC, series CF by Sunon

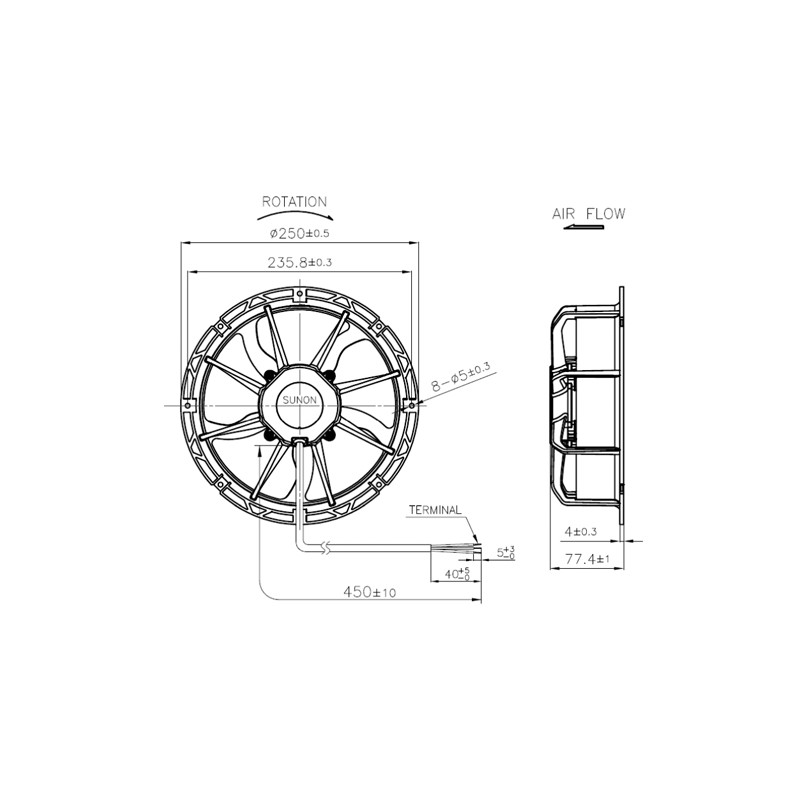

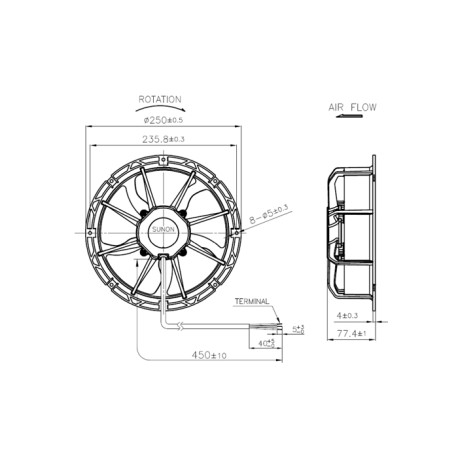

AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0). These fans have ball bearing systems, dimensions of Ø200.6x77.7mm, and connection type UL SVT 18AWGx3C, 105°C, 300V. They have different protection classes: IP68 for the CF 2207 LBL-000U-HE9 model and IP55 for the CF 2207 LBL-000U-HB9 model. Their rated voltage is between 220 to 240V AC while their operating voltage ranges from 185 to 250V AC. We offer the following types of this Sunon series: CF 2207 LBL-000U-HE9 and CF 2207 LBL-000U-HB9

, Ø200.6x77.7mm, 230V AC

CF 2207 LBL-000U-HB9

111080 CF 2207 LBL-000U-HB9 CF2207LBL-000U-HB9 CF2207LBL-000U-HB9 AC axial fan 230V AC, series CF by Sunon. AC fans with a patented one-phase single coil DC brushless motor design. The frame and impeller of these fans are made of thermoplastic PBT (UL94V-0). These fans have ball bearing systems, dimensions of Ø200.6x77.7mm, and connection type UL SVT 18AWGx3C, 105°C, 300V. They have different protection classes: IP68 for the CF 2207 LBL-000U-HE9 model and IP55 for the CF 2207 LBL-000U-HB9 model. Their rated voltage is between 220 to 240V AC while their operating voltage ranges from 185 to 250V AC. We offer the following types of this Sunon series: CF 2207 LBL-000U-HE9 and CF 2207 LBL-000U-HB9

Specifications

manufacturer
Manufacturer's name CF2207LBL-000U-HB9
Current [A] 0,038/0,07
Electric power [W] 3,2/6,6
Noise [dBA] 29,9/41,2
Air performance [m3/h] 315,9/473,5
Number of revolutions [U/min] 950/1400
Data Sheet

Unit price

86,89 €

Stock: 141
Further delivery:
CW 14/2025
